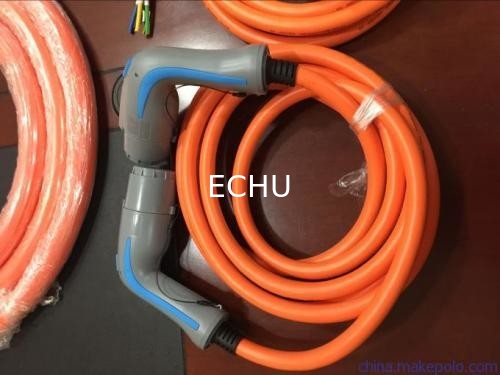

Charging Cables for Electrical Vehicles EV-RS90S90 EV-RS90S90PS90

Name: Charging Cables for Electrical Vehicles EV-RS90S90 EV-RS90S90PS90
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: EV-RS90S90 EV-RS90S90PS90
Price: 5.10 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	EV-RS90S90 EV-RS90S90PS90
MOQ:	100M
Price:	USD0.101-USD10.954/m
Payment Terms:	T/T, Western Union
Supply Ability:	10000KM/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV SUD

Conductor:

Multiple Stranded Conductor

Application:

For Connection Set For Conductive Charging Of Electric Vehicles

Rated Voltage:

300V, 600V, 1000V

Rated Temp:

-40-+105℃

Conductor Material:

Tinned Copper Or Bare Copper

Conductor Type:

Stranded

Insulation:

TPE

Reference Standard:

UL2263-2022

Jacket:

TPE

Flmae Test:

VW-1

Min Bending Radius:

6xD

Packaging Details:

splint reel/ splint box

Product Description

Charging Cables

·Applications:
applicable to charging cables of rated voltages up to and including AC 450/750V for connection set for conductive charging of electric vehicles.

·Properties:
Conductor:Multiple stranded conductor
Insulation:TPE
Jacket:TPE
Colour:Black

PRODUCT DESCRIPTION:
Temperature range:-40℃~90℃
Rating voltage:AC 450/750V
Reference standard:GB/T 33594-2017
Flame Test:IEC 60331-1-2
Min Bending radius:6xD

Type	Size	Conductor Stranded OD mm(Ref.)	Over diameter Non Shielded mm (Ref)	Max.Conductor resistance mΩ/m@20℃
EV-RS90S90 EV-RS90590PS90	3x2.5+(0~2)x(0.5~0.75)	2.1	12.8	7.98
	3x4.0+(0~2)x(0.5~0.75)	2.6	15.2	4.95
	3x6.0+(0~2)x(0.5~0.75)	3.4	16.9	3.3
	3×10.0+(0~2)×(0.5~0.75)	4.6	18.9	1.91
	3x16.0+(0~2)x(0.5~0.75)	5.9	22.3	1.21
	5w2.5+10-2)x(0.5-0.75	2.1	15.5	7.98
	5y40+10-2x(0.5~0.75	2.6	18.2	4.95
	5x6.0+(0~2)x(0.5~0.75)	3.4	22.3	3.3
	5x10.0+(0~2)x(0.5~0.75)	4.6	23.1	1.91
	5x16.0+(0~2)x(0.5~0.75)	5.9	27.3	1.21
