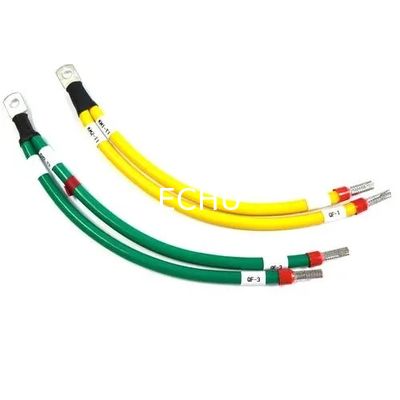

XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H15Z-F

Brand Name:	ECHU
Model Number:	ES-RYJ-125/ES-H09Z-F
MOQ:	100M
Price:	USD0.101-USD10.956/m
Payment Terms:	T/T, Western Union
Supply Ability:	10000KM/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV SUD

Type:

Insulaton

Application:

For Battery Energy Storage System

Rated Voltage:

DC1500V

Rated Temp:

125℃

Conductor Material:

Tinned Copper Or Bare Copper

Conductor Type:

Stranded

Insulation:

Lead Free XLPO

Reference Standard:

CQC1143, PPP58049A

Packaging Details:

splint reel/ splint box

Product Description

Battery Storage Cable

·Applications:
The cables are for use at the direct current (d.c.)side of battery energy storage system, connecting the batteries,battery packs, battery packs to the combiner box or the power conversion system as fixed wiring.
·Properties:
The flame retardancy meets the requirements
of iec60332-1-2
Uniform insulation thickness to ensure easy, stripping and cutting.
◆ PRODUCT DESCRIPTION:
Temperature range:125 ℃
Rating voltage:DC 1500V
Reference standard:CQC1143,PPP58049A
Conductor:stranded tinned or bare copper conductor
Insulation:Lead free XLPO insulation

Conductor		Insulation		Jacket		Resistance
Cross section mm2	Nom.Dia (mm)	Nom.Thick (mm)	Nom.Dia (mm)	Nom.(mm)	Nom.Dia (mm)	Ω/km.20℃(DC)
	2.6	0.8	4.3	0.7	5.7	5.09
6	3.2	0.8	4.9	0.7	6.3	3.39
10	4.1	1	5.9	0.7	7.4	0.9
16	5.6	1.1	7.9	0.7	9.4	1.24
25	7	1.3	9.7	0.8	11.5	0.795
35	8.3	1.3	11	0.8	12.8	0.565
50	9.9	1.5	13	0.8	14.8	n.393
70	11.7	1.5	14.8	0.9	16.8	0.277
95	13.9	1.5	17	0.9	190	0.21
120	15.5	1.5	18.6	0.9	20.6	0.164
150	17.3	1.7	20.9	1	23.2	0.132
185	19.2	1.9	23.2	1	25.5	0.108
240	23.4	2	27.6	1.1	30	0.0817
