Lead free EP Insulated, Lead free CPE Jacket, Energy Storage Cable Battery Cable ESP15BB-K
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Insulaton | Application: | For Battery Energy Storage System |
|---|---|---|---|
| Rated Voltage: | DC1500V | Rated Temp: | 90℃ |
| Conductor Material: | Tinned Copper Or Bare Copper | Conductor Type: | Stranded |
Battery Storage Cable
·Applications:
The cables are for use at the direct current (d.c.)side of battery energy storage system, connecting the batteries,battery packs, battery packs to the combiner box or the power conversion system as fixed wiring.
·Properties:
The flame retardancy meets the requirements of iec60332-1-2
Uniform insulation thickness to ensure easy, stripping and cutting.
◆ PRODUCT DESCRIPTION:
Temperature range:90 ℃
Rating voltage:DC 1500V
Reference standard:2PfG 2693/06.19

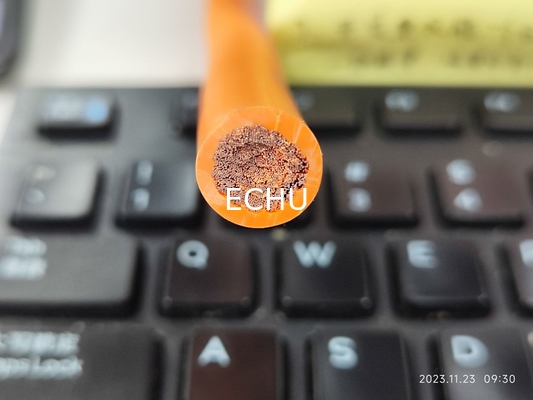

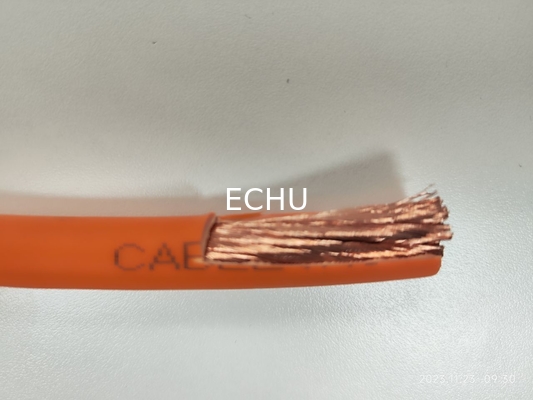

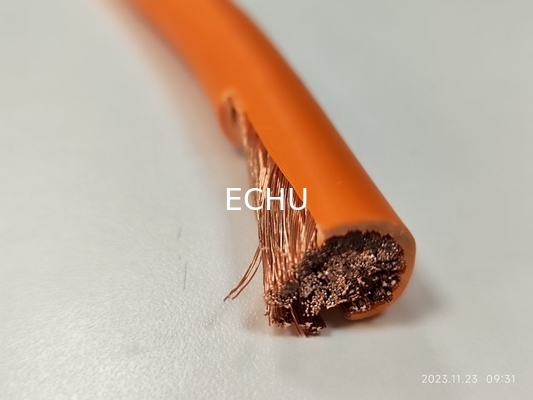

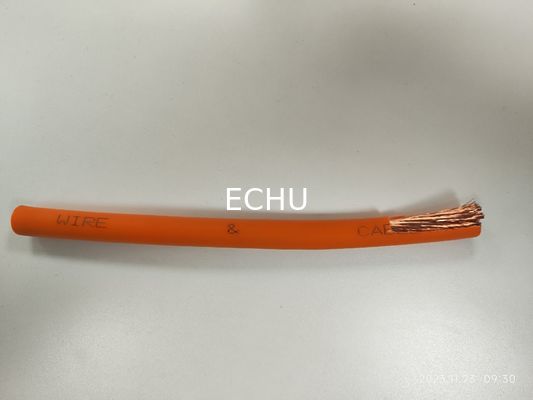

Conductor:stranded tinned or bare copper conductor
Insulation:Lead free EP
Jacket:Lead free CPE
| Conductor | Insulation | Jacket | Resistance | |||
| Cross section mm2 | Nom.Dia (mm) | Nom.Thick (mm) | Nom.Dia (mm) | Nom.(mm) | Nom.Dia (mm) | Ω/km.20℃(DC) |
| 4 | 2.6 | 1.3 | 5.3 | 1.4 | 8.1 | 5.09 |
| 6 | 3.2 | 1.3 | 5.9 | 1.4 | 8.8 | 3.39 |
| 10 | 4.1 | 1.5 | 7.2 | 1.4 | 10.1 | 0.9 |
| 16 | 5.6 | 1.5 | 8.7 | 1.4 | 11.7 | 1.24 |
| 25 | 7 | 1.8 | 10.7 | 1.4 | 13.6 | 0.795 |
| 35 | 8.3 | 1.8 | 12.1 | 1.4 | 15.1 | 0.565 |
| 50 | 9.9 | 1.8 | 13.7 | 1.4 | 16.7 | 0.39 |
| 70 | 11.7 | 1.8 | 15.5 | 1.5 | 18.7 | 0.277 |
| 95 | 13.9 | 2.2 | 18.5 | 1.5 | 21.8 | 0.21 |
| 120 | 15.5 | 2.2 | 20.1 | 1.6 | 23.6 | 0.164 |
| 150 | 17.3 | 2.2 | 21.8 | 1.6 | 25.2 | 0.132 |
| 185 | 19.2 | 2.4 | 24.3 | 1.7 | 28 | 0.108 |
