XLPO Insulation Energy Storage Cable Battery Cable ES-RYJ-125/ES-H09Z-F
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Insulaton | Application: | For Battery Energy Storage System |
|---|---|---|---|
| Rated Voltage: | DC900V | Rated Temp: | 125℃ |
| Conductor Material: | Tinned Copper Or Bare Copper | Conductor Type: | Stranded |
Battery Storage Cable
·Applications:
The cables are for use at the direct current (d.c.)side of battery energy storage system, connecting the batteries,battery packs, battery packs to the combiner box or the power conversion system as fixed wiring.
·Properties:
The flame retardancy meets the requirements of iec60332-1-2
Uniform insulation thickness to ensure easy, stripping and cutting.
◆ PRODUCT DESCRIPTION:
Temperature range:125 ℃
Rating voltage:DC 900V
Reference standard:CQC1143,PPP58049A

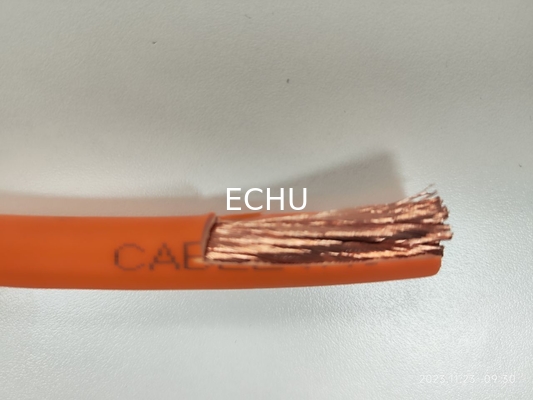

Conductor:stranded tinned or bare copper conductor
Insulation:Lead free XLPO insulation
Jacket:Lead free XLPO
| Conductor | Insulation | Jacket | Resistance | |||
| Cross section mm2 | Nom.Dia (mm) | Nom.Thick (mm) | Nom.Dia (mm) | Nom.(mm) | Nom.Dia (mm) | Ω/km.20℃(DC) |
| 4 | 2.6 | 0.7 | 4.1 | 0.7 | 5.5 | 5.09 |
| 6 | 3.2 | 0.7 | 4.7 | 0.7 | 6.1 | 3.39 |
| 10 | 4.1 | 0.7 | 5.6 | 0.7 | 7.1 | 1.95 |
| 16 | 5.6 | 0.7 | 7.1 | 0.7 | 8.6 | 1.24 |
| 25 | 7 | 0.9 | 8.9 | 0.8 | 10.6 | 0.795 |
| 35 | 8.3 | 0.9 | 10.2 | 0.8 | 12 | 0.565 |
| 50 | 9.9 | 1 | 12 | 0.8 | 13.8 | 0.393 |
| 70 | 11.7 | 1.1 | 14 | 0.9 | 16 | 0.277 |
| 95 | 13.9 | 1.1 | 162 | 0.9 | 18.2 | 0.21 |
| 120 | 15.5 | 1.2 | 18 | 0.9 | 20 | 0.164 |
| 150 | 17.3 | 0.4 | 20.3 | 1 | 22.5 | 0.132 |
| 185 | 19.2 | 1.6 | 22.6 | 1 | 24.8 | 0.108 |
| 240 | 23.4 | 0.7 | 27 | 1.1 | 29.5 | 0.0817 |
