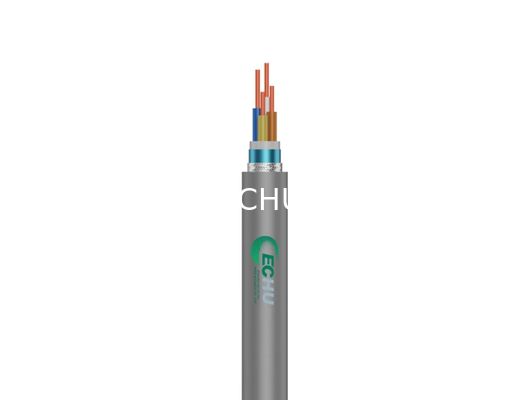

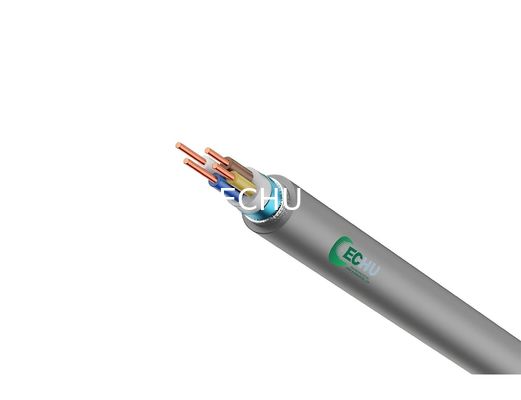

Industrial Ethernet Cable Profinet Type C, suitable for drag chain

Name: Industrial Ethernet Cable Profinet Type C, suitable for drag chain
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: PROFINET TYPE C
Price: 1.00 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	PROFINET TYPE C
MOQ:	300m
Price:	USD01-USD1.62/M
Payment Terms:	Western Union, T/T
Supply Ability:	10000KM/day

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Installation:

Flexible

Packaging Details:

in roll, splint boxes, pallet

Product Description

Industrial Ethernet Cable Profinet Type C

Application:

Speciall designed for PROFINET protocol, it is used in a wide range of industrial Ethernet occasions, such as wiring of machines, equipment, instrucments and control cabinets.

Suitable for drag chain application or frequent movement.

Properties:

The flame retardancy meets the requirements of IEC60332-1-2

It has good anti external electromagnetic inteference ability

Superior transmission performance and good flexibility

PUR sheath is specially resistant to il, abrasion and hydrolysis

The cable has excellet tensile and compressive characteristics

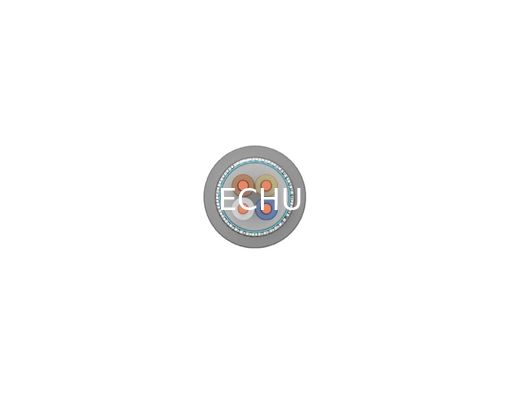

Structure:

Conductor: Stranded tinned copper conductor

Insulation: PE

Color: White, yellow, blue, orange

Shielding: aluminum foil wrapped and tinned copper braided

Sheath: PVC/PUR

Color: green )approximately RAL6018)

Temperature range:

Fixed installation: PVC: -15℃-+80℃; PUR: -40℃-+80℃

Moved installation: -5℃-+70℃

Test Voltage:2000V/min(AC)

Characteristic impedance:100+/-15Ω

Minimum bedning radius

Fixed installation: 8D (D=cable diameter)

Moved installation: 15D (D=cable diameter)
