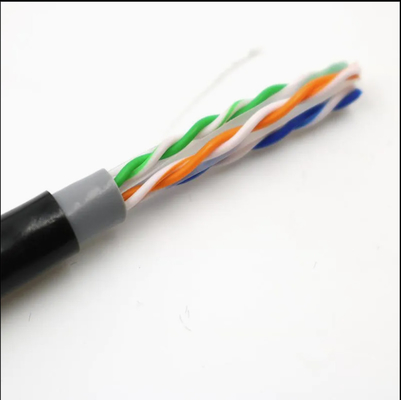

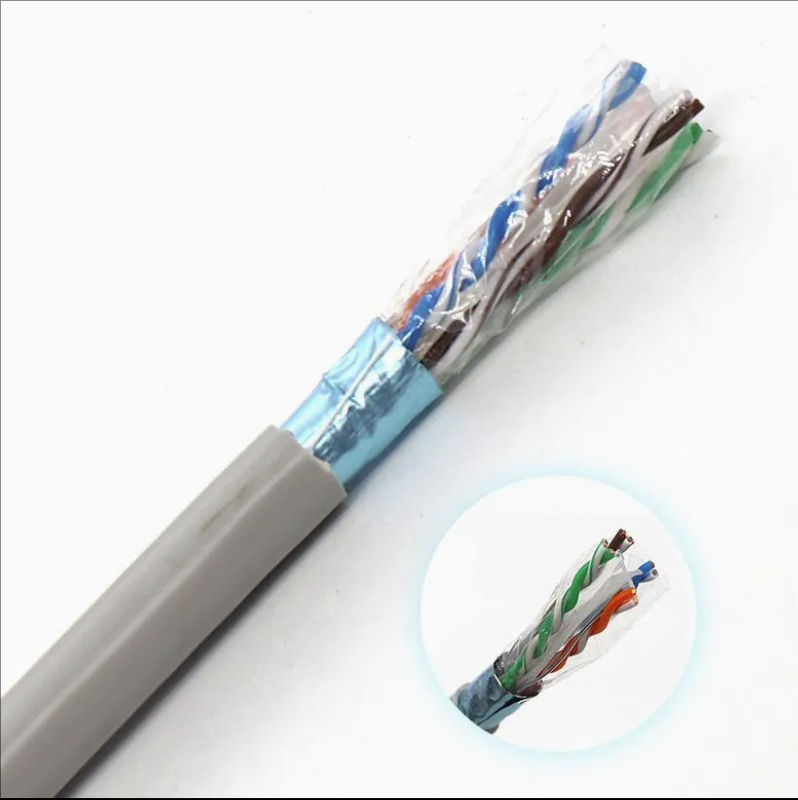

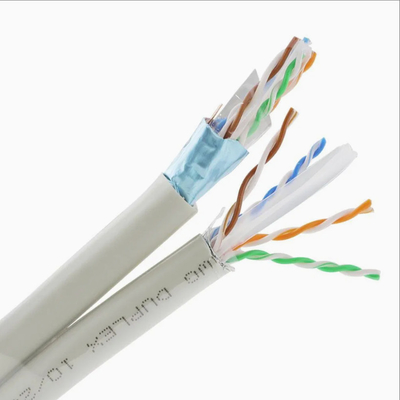

ECHU ETHERNET CABLE FD CAT6A, Ethernet cable for frequently moving occasions

ECHU ETHERNET CABLE FD CAT6A, Ethernet cable for frequently moving occasions

ECHU ETHERNET CABLE FD CAT6A, Ethernet cable for frequently moving occasions

Brand Name: ECHU
Model Number: ETHERNET FD CAT6A
MOQ: 300m
Price: USD01-USD1.668/M
Payment Terms: L/C, T/T
Supply Ability: 10000KM/day
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Color:
Grey
Packaging Details:
in roll, splint boxes, cartons
Product Description

The Ethernet CAT5e Cable is an industrial-grade network cable utilizing high-purity oxygen-free copper conductors. ETHERNET CABLE FD CAT 6A





Application:

As a high-speed data cable, it can be applied to CNC machine tools, engraving machines, woodworking machinery, video monitoring and so on, it is especially suitable for drag chain applications or frequently moving occasions.



Properties:

Cable flame retardancy meets IEC60332-1-2

Good flexibility and small bending radius

It has excellet anti external electromagnetic interference ability

PUR sheath is particularly oil resistant and abrasion resistant

The signal transmission frequency can reach 500MHZ



Structure:

Conductor: high flexibility stranded copper conductor, conforming to IEC60228/VDE0295 class 6 condutor standard

Insulation: foamed PE

Shielding: AL/Mylar individual screen and tinned copper wire overall braid

Sheath: PVC/PUR

Color: Yellow (other colors can be formulated according to customer requirements)

Temperature range:

Fixed installation: PVC: -15℃ to 80℃; PUR: -40℃-+80℃

Moved installation: -5℃-+70℃

Test Voltage: 1000V/min (DC)

Characteristic impedance: 100+/-15Ω @100MHZ

Insulation resistance: >/= 5g Ω .Km

Mininum beding radius

Fixed installation: 10D (d=cable diameter)

Moved installation: 15D (d=cable diameter)



ECHU ETHERNET CABLE FD CAT6A, Ethernet cable for frequently moving occasions 0
