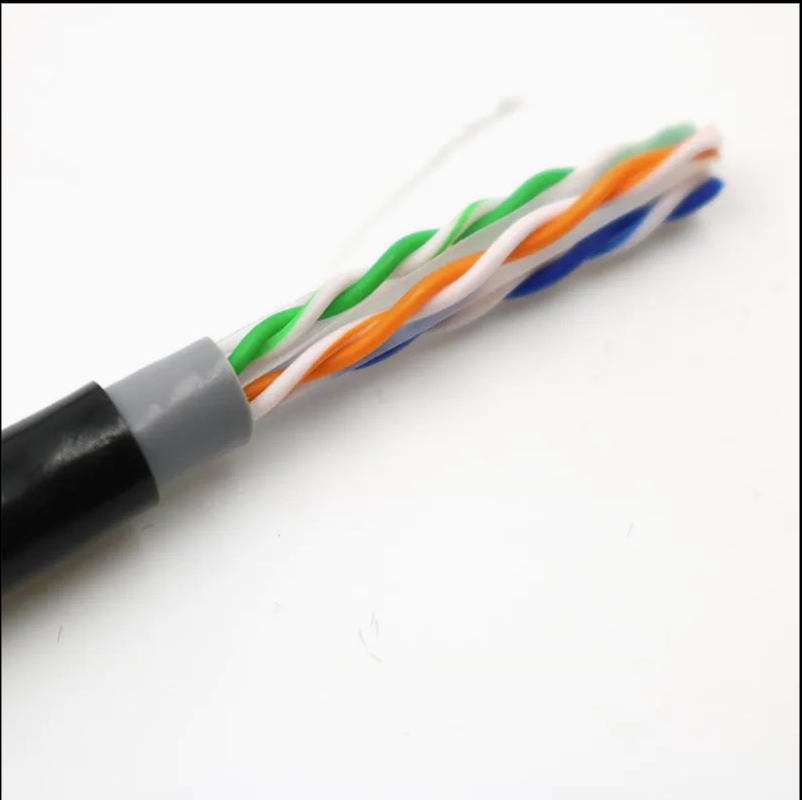

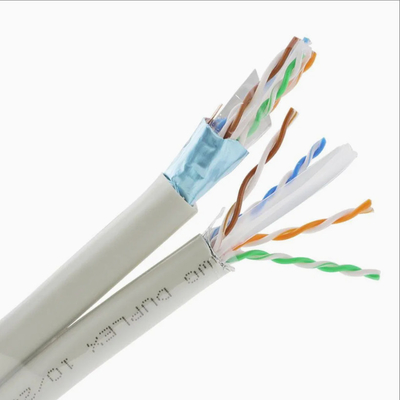

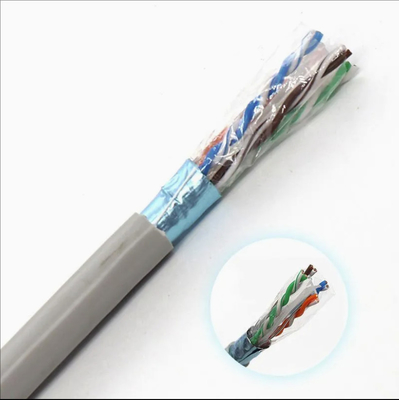

ECHU ETHERNET FLEX CAT6A Cable, suitable for generic cabling system

ECHU ETHERNET FLEX CAT6A Cable, suitable for generic cabling system

ECHU ETHERNET FLEX CAT6A Cable, suitable for generic cabling system

Brand Name: ECHU
Model Number: ETHERNET CAT6A
MOQ: 300m
Price: USD01-USD1.638/M
Payment Terms: L/C, T/T
Supply Ability: 10000KM/day
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Color:
Grey
Packaging Details:
in roll, splint boxes, cartons
Product Description

The Ethernet CAT5e Cable is an industrial-grade network cable utilizing high-purity oxygen-free copper conductors. ETHERNET CABLE FLEX CAT 6A





Application:

As a high-speed data cable, it is applied to the synthesize cabling system of cloud computing center, large data room, office, residential area, factory and other buildings



Properties:

Cable flame retardancy meets IEC60332-1-2

Shield cable has excellet anti external electromagnetic interference ability

The signal transmission frequency can reach 500MHZ



Structure:

Conductor: solid bare copper conductor

Insulation: foamed PE

Shielding: AL/Mylar individual screen and tinned copper wire overall braid

Sheath: PVC

Color: Yellow (other colors can be formulated according to customer requirements)

Temperature range:

Fixed installation: -15℃ to 80℃

Test Voltage: 1000V/min (DC)

Characteristic impedance: 100+/-15Ω @100MHZ

Insulation resistance: >/= 5g Ω .Km

Mininum beding radius

Fixed installation: 10D (d=cable diameter)
