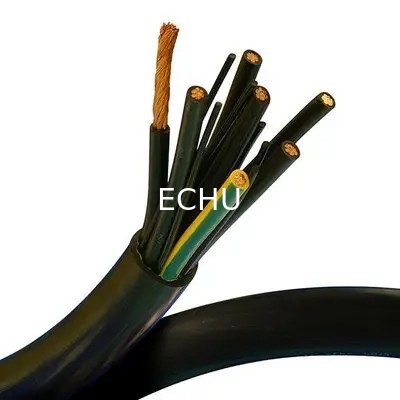

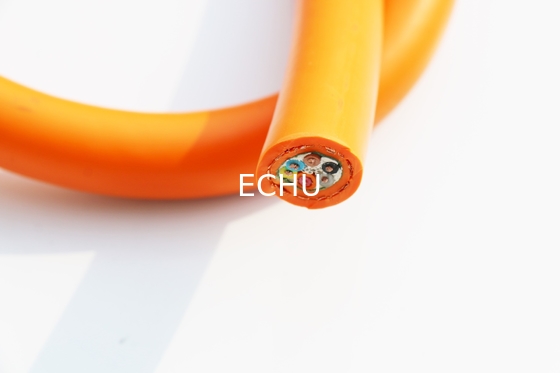

AC and DC High Flexible Electric Vehicle Automotive Electrical Charging Wire Cable ECHU CABLE

Large Image : AC and DC High Flexible Electric Vehicle Automotive Electrical Charging Wire Cable ECHU CABLE

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	TUV SUD
Model Number:	EVDC-RS90S90 EVDC-RS90S90PS90

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	USD0.101-USD10.954/m
Packaging Details:	splint reel/ splint box
Delivery Time:	10day after receiving payment
Payment Terms:	T/T, Western Union..
Supply Ability:	10000KM/week

Contact Now

Detailed Product Description

Conductor:	Multiple Stranded Conductor	Application:	For Connection Set For Conductive Charging Of Electric Vehicles
Rated Voltage:	AC 450/750V	Rated Temp:	-40-+90℃
Conductor Material:	Tinned Copper Or Bare Copper	Conductor Type:	Stranded
Insulation:	TPE	Reference Standard:	GB/T 33594-2017
Jacket:	TPE	Flmae Test:	IEC60331-1-2
Min Bending Radius:	6xD

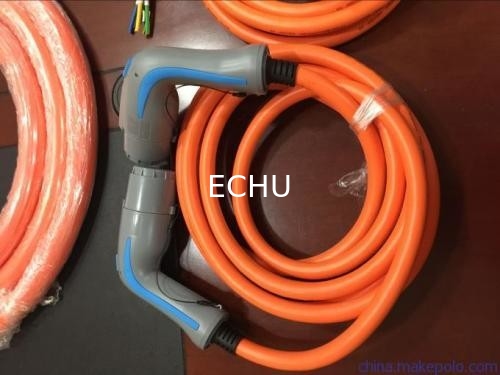

Charging Cables

·Applications:
applicable to charging cables of rated voltages up to and including DC 1000V for connection set for conductive charging of electric vehicles.

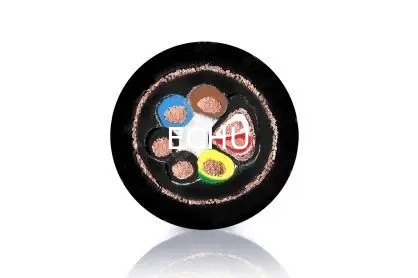

·Properties:
Conductor:Multiple stranded conductor
Insulation:TPE
Jacket:TPE
Colour:Black

◆ PRODUCT DESCRIPTION:
Temperature range:-40℃ ~90℃
Rating voltage:DC 1000V
Reference standard:GB/T 33594-2017
Flame Test:IEC 60331-1-2
Min Bending radius:6xD

Type	Size	Conductor Stranded OD mm(Ref.)	Over diameter Non Shielded mm (Ref)	Max.Conductor resistance mΩ/m@20℃
EVDC-RS90sgn EVDC-RS90S90PS90	2x16mm2+16mm2+2smm2+2N2.75mm2)+PBx075mm2)	5.9	31	1.21
	225mm2+25mm2+2x4mm2+2P20.75mm2y+P/Bx075mm2)	7.3	35	0.78
	2x35mm2+25mm2+2x4mm2+2PN260.75mm2)+P\|Bx0.75mm2)	8	37	0.554
	2x50mm2+25mm2+2x4mm2+2R(200.75mm2)+PB₀.75mm2)	10.2	39	0.386
	2x70mm2+25mm2+2x4mm2+2P(200.75mm2)+P\|B×0.75mm2)	12.3	42	0.272
	2x95mm2+25mm2+2x4mm2+2P(200.75mm2)+P\|B×0.75mm2)	14.5	46	0.206
