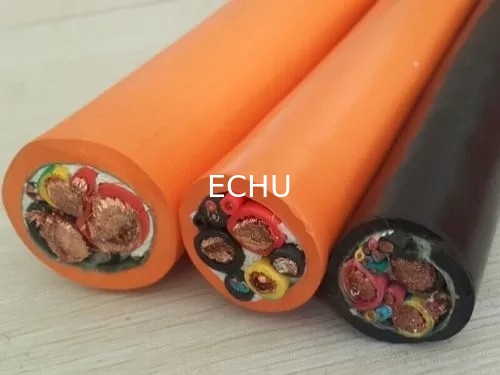

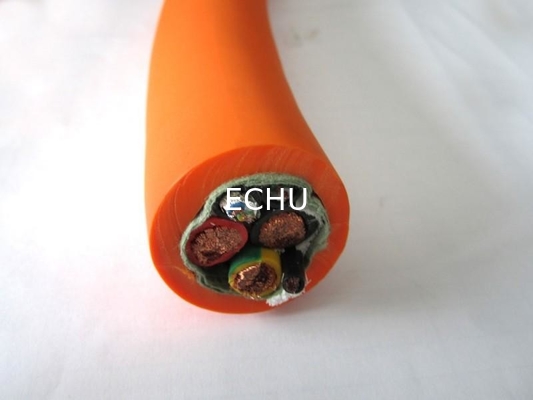

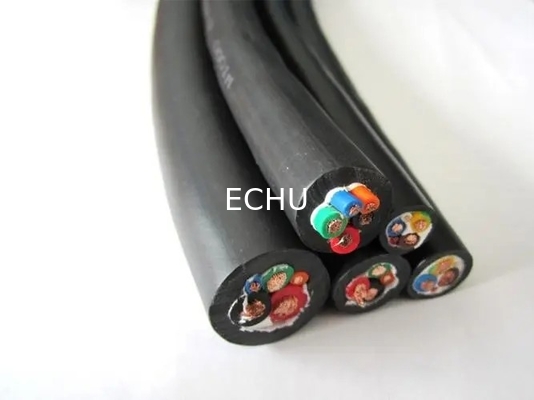

Multicore EV New Energy Electrical/Electric Vehicle Charging Pile Cable

Large Image : Multicore EV New Energy Electrical/Electric Vehicle Charging Pile Cable

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	TUV SUD
Model Number:	300V EVJE 600V or 1000V EVE

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	USD0.101-USD10.954/m
Packaging Details:	splint reel/ splint box
Delivery Time:	10day after receiving payment
Payment Terms:	T/T, Western Union..
Supply Ability:	10000KM/week

Contact Now

Detailed Product Description

Conductor:	Multiple Stranded Conductor	Application:	For Connection Set For Conductive Charging Of Electric Vehicles
Rated Voltage:	300V, 600V, 1000V	Rated Temp:	-40-+105℃
Conductor Material:	Tinned Copper Or Bare Copper	Conductor Type:	Stranded
Insulation:	TPE	Reference Standard:	UL2263-2022
Jacket:	TPE	Flmae Test:	VW-1
Min Bending Radius:	6xD

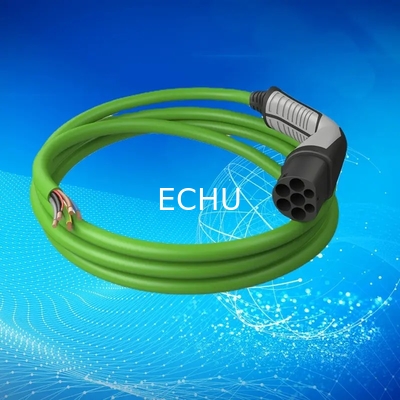

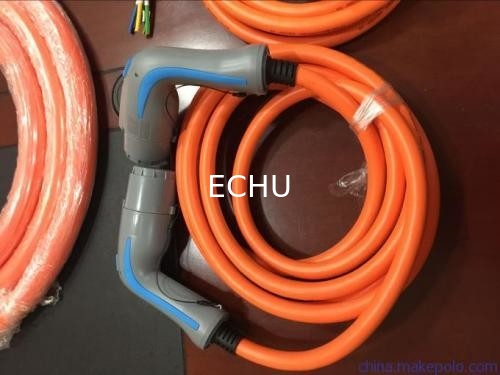

Charging Cables

·Applications:

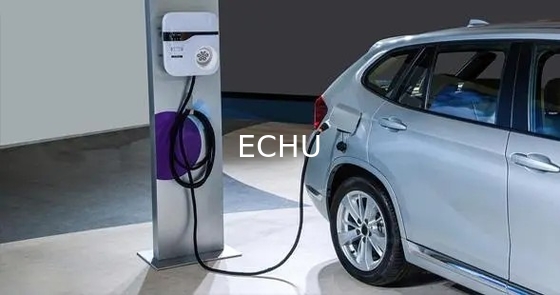

applicable to charging cables of rated voltages up to and including 300V;600V or 1000V for connection set for conductive charging of electric vehicles.

·Properties:

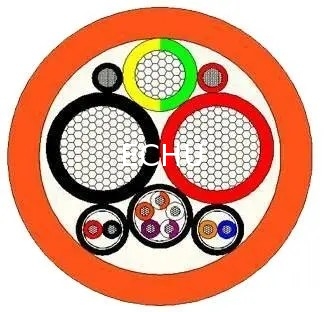

Conductor:Multiple stranded conductor
Insulation:TPE
Jacket:TPE

◆ PRODUCT DESCRIPTION:
lemperature range:-40℃~105℃
Rating voltage:300V,600V or 1000V Reference standard:UL 2263-2022
Flame Test:VW-1
Min Bending radius:6xD

Type	Size	Conductor Stranded OD mm(Ref.)	Over diameter Non Shielded mm (Ref)	Max.Conductor resistance mΩ/m@20℃
300EVJE	3x16AWG+1x18AWS	1.5/1.2	10.8	14.1/22.4
	3x14AWG+1x18AWS	1.9/1.2	11.6	8.88/224
	3x12AWG+1x18AWG	2.4/1.2	12.5	5.58/22.4
	3×16AWG+2x18AWS	1.5/1.2	11.7	14.1/22.4
	3x14AWG+2x18AWS	1.9/1.2	12.5	8.88/22.4
	3x12AWG+2x18AWS	2.4/1.2	13.6	22.4
600V or 1000V EVE	2×8AWG+10AWG	4.5/3.2	21.5	2.23/3.51
	2×6AWG+8AWG	5.5/4.5	24.5	1.40/2.23
	2x4AWG+6AWG	6.7/5.5	28	0.882/1.4
	2×2AWG+4AWG	8.5/6.7	31.2	0.555/0.882
	3x16AWG+1×18AWG	1.5/1.2	12	14.1/224
	3×14AWG+1×18AWG	1.9/1.2	14.1	8.88/22.4
	3×12AWG+1×18AMG	2.4/1.2	15	5,58/22.4
	3×10AWG+1×18AWG	3.0/1.2	16.4	3.51/224
	2×8AWG+10AwG+18AWG	4.5/3.2	21.5	2.23/3.51/22.4
	2×6AWG+8AWG+18AWG	5.5/4.5	24.1	1.40/2.23/22.4
	2x4AWG+6AWG+18ANG	6.7/5.5	28.5	0.882/1.4/22.4
	2×2AWG+4AWG+18AWG	8.2/6.6	31	0.555/0.882722.4
	3×16AWG+2×18AWG	1.5/1.2	13	3.51/224
	3×14AWG+2×18AWG	1.9/1.2	14,5	8.88/22.4
	3×12AWG+2x18AWG	2.4/1.2	16	5.58/22.4
	3×10AWG+2×18AWG	3.0/1.2	16.5	3.51/22.4
	2×8AWG+10AWG+2x16AWG	4.5/3.2	21.6	2.23/3.51
	2×6AWIG+8AWG+2x18AWG	5.5/4.5	24	1.40/2.23
	2x4AWG+6AWG+2×184WG	6.7/5.5	28.2	0.882/1.4
	2×2AWG+4AWG+2×18AWG	B2/6.6	31	0.555/0.882
	2×1/0AWG+2AWC	10.5/8.2	39,5	0.349/0.555
	2×3/0AWG+1/0AWS	13.05/10.5	46.8	0.219/0.349
