Flash Cable H07bz5-F Charging Vehicles with Evi-2 Halogen-Free Elastomeric Insulation, Under Evm-1 Polyurethane Sheath E

Name: Flash Cable H07bz5-F Charging Vehicles with Evi-2 Halogen-Free Elastomeric Insulation, Under Evm-1 Polyurethane Sheath E
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: H07BZ5-F
Price: 5.10 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	H07BZ5-F
MOQ:	100M
Price:	USD0.101-USD10.954/m
Payment Terms:	T/T, Western Union
Supply Ability:	10000KM/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV SUD

Conductor:

Multiple Stranded Conductor

Application:

For Connection Set For Conductive Charging Of Electric Vehicles

Rated Voltage:

AC 450/750V, DC1000V

Rated Temp:

-40-+90℃

Conductor Material:

Tinned Copper Or Bare Copper

Conductor Type:

Stranded

Insulation:

EV1-2

Reference Standard:

EN50620:2017, IEC62893-3:2017

Jacket:

PUR

Flmae Test:

IEC60331-1-2

Min Bending Radius:

6xD

Packaging Details:

splint reel/ splint box

Product Description

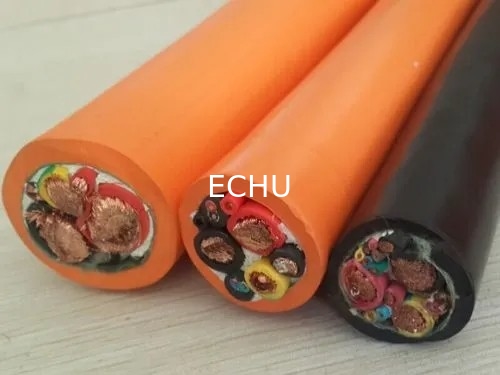

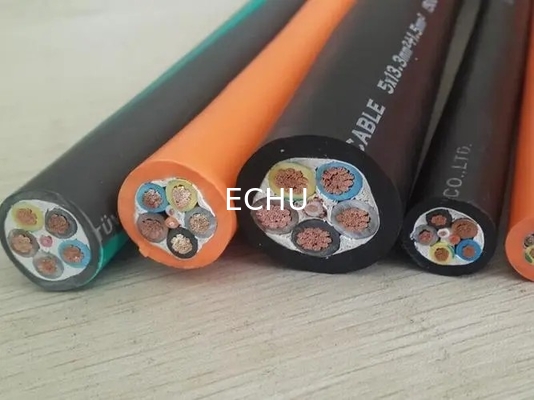

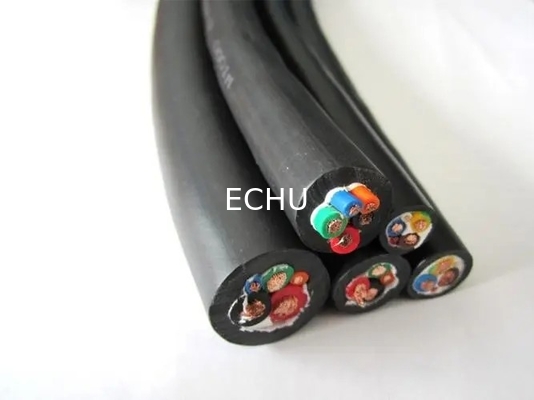

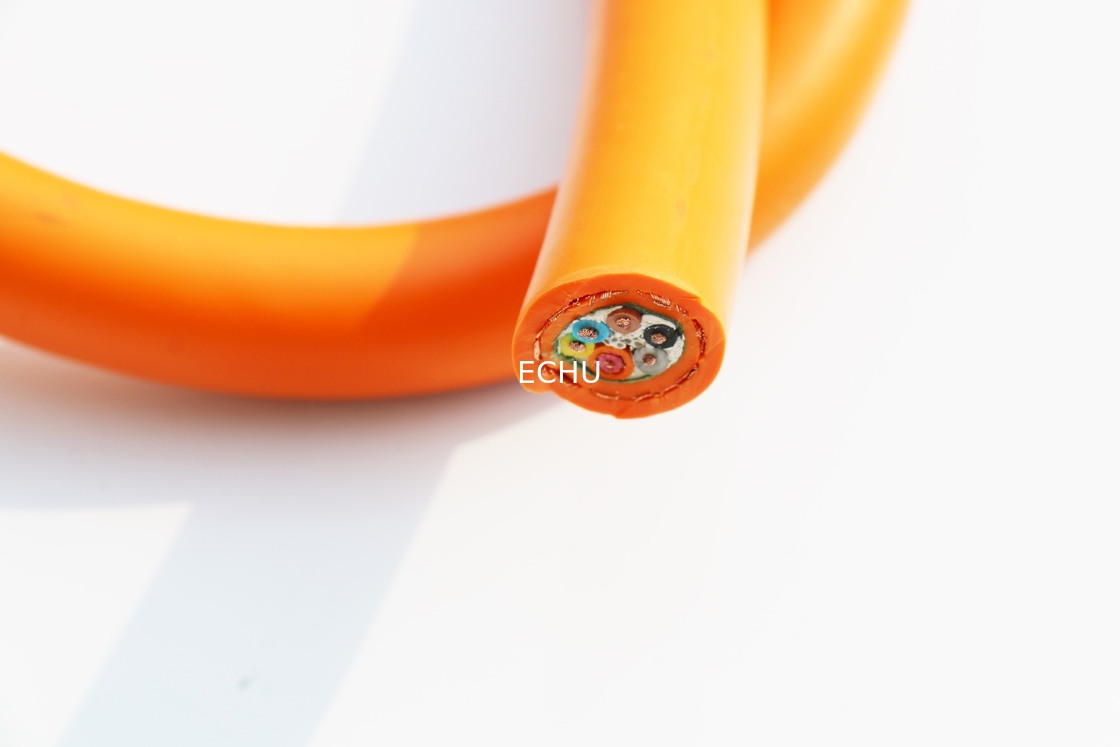

Charging Cables

·Applications:

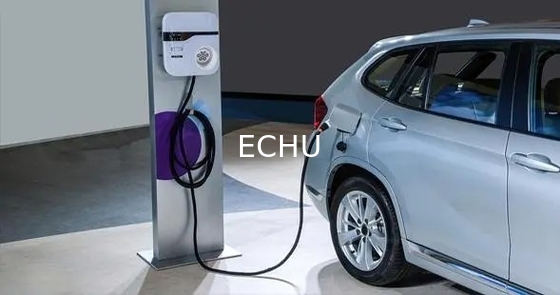

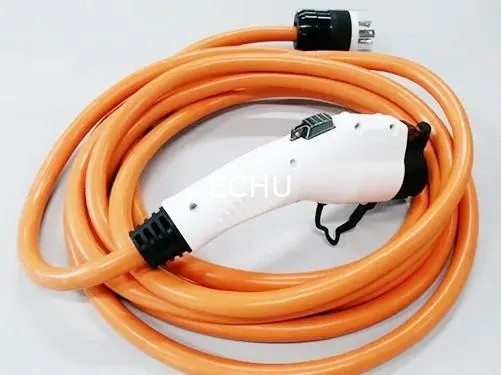

applicable to charging cables of rated voltages up to and including AC 450/750V or DC 1000V for connection set for conductive charging of electric vehicles.

·Properties:
Conductor:Multiple stranded conductor
Insulation:EVI-2
Jacket:PUR

◆ PRODUCT DESCRIPTION:
Temperature range:-40℃~90℃
Rating voltage:AC 450/750V/DC 1000V
Reference standard:EN 50620:2017,IEC
62893-3:2017
Flame Test:IEC 60331-1-2
Min Bending radius:6xD

Type	Size	Conductor Stranded OD mm(Ref.)	Over diameter Non Shielded mm (Ref)	Max.Conductor resistance mΩ/m@20℃
H07BZ5-F 62893IEC123	3x1.5+(0~6)x(0.5~1.0)	1.6	9.2	3.3
	3×2.5+10-6)x(0.5~1.0	2.1	11	7.98
	3x4.0+(0-6)x(0.5~1.0	2.6	11.8	4.95
	3x6.0+10-6)x(0.5~1.0	3.4	13.5	3.3
	3x10.0+(0~6)x(0.5~1.0)	4.6	16.5	1.91
	3x16.0+(0~6)x(0.5~1.0)	5.9	19.5	1.21
	5x2.5+(0~6)x(0.5~1.0)	2.1	14	7.98
	5w40+10-6)x(0.5~1.0	2.6	15.5	4.95
	5x6.0+(0~6)x(0.5~1.0)	3.4	17	3.3
	5x10.0+(0~6)x(0.5~1.0)	4.6	20.5	1.91
	5×16.0+(0~6)x(0.5~1.0)	5.9	24.5	1.21
