ECHU UL Cable 600 V 150°C UL3123 American Standard Certified Single Conductor Silicone Rubber Insulation Heat-Resistant Cable

Name: ECHU UL Cable 600 V 150°C UL3123 American Standard Certified Single Conductor Silicone Rubber Insulation Heat-Resistant Cable
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL3123
Price: 2.30 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL3123
MOQ:	100meter
Price:	USD0.302 to USD6.255/m
Payment Terms:	T/T, L/C
Supply Ability:	10000km per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Black/red/....

Voltage:

600V

Temperature:

-60-+150℃

Condutor:

Bare Copper Or Tinned Copper

Packaging Details:

in roll or splint reel

Product Description

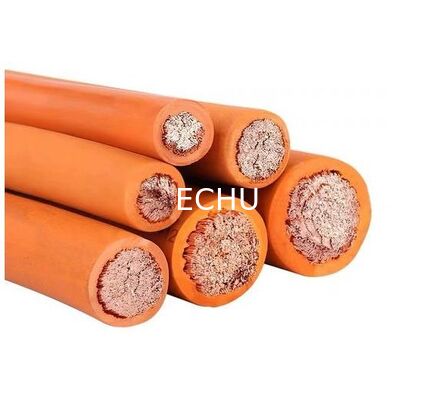

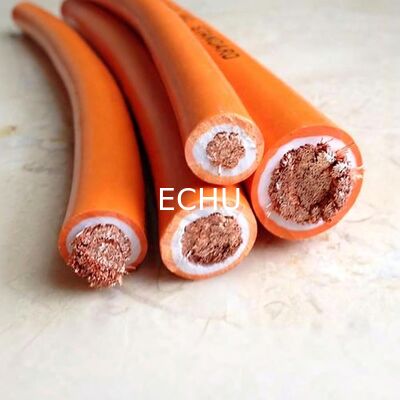

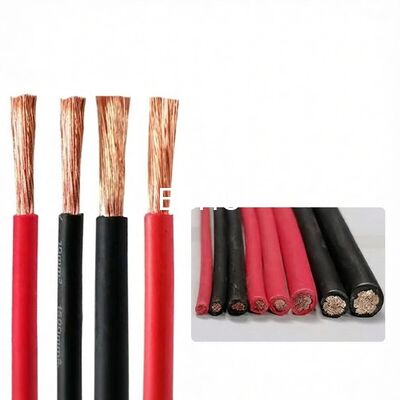

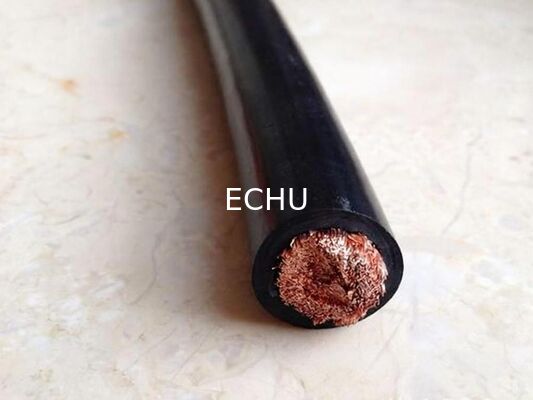

UL3123 Single-Conductor Silicone Rubber AWM Cable

UL3123 is a high-temperature silicone wire complying with UL758 Appliance Wiring Material standard.

Construction Conductor: Class 5 flexible stranded bare or tinned copper (30AWG ~ 16AWG); Insulation: Extruded silicone rubber (SR).
Electrical & Thermal Ratings Rated Voltage: 600V AC Rated Temperature: 150°C (dry locations) Operating temperature range: -60°C ~ +150°C
Flame Performance Self-extinguishing, meets UL FT2 horizontal flame test.
Key Features Excellent flexibility, reliable heat resistance, low-temperature resistance, ozone resistance, UV resistance and chemical resistance. Stable dielectric performance; uniform insulation wall for easy stripping. Halogen-free and RoHS compliant.
Typical Applications Internal wiring for household appliances, heating elements, lighting fixtures, electronic devices, motors and general industrial equipment under medium high-temperature conditions.

Item	UL3123 Cable
Conductor	30 AWG - 16 AWG, Solid or Stranded Copper
Insulation	Silicone Rubber
Minimum Bending Radius	4x cable diameter(fixed) / 15x cable diameter(flexible)
Nominal Voltage	600 VAC
Temperature	150 ºC
Color	Optional
Application	This cable is used for internal wiring in appliances and machinery that require high temperature and flexibility, which is used for the household appliances, industrial automation, automotive and aeropace fields.
