ROHS PVC Electrical Earth Cable UL1015 6AWG 600V with UL certificate

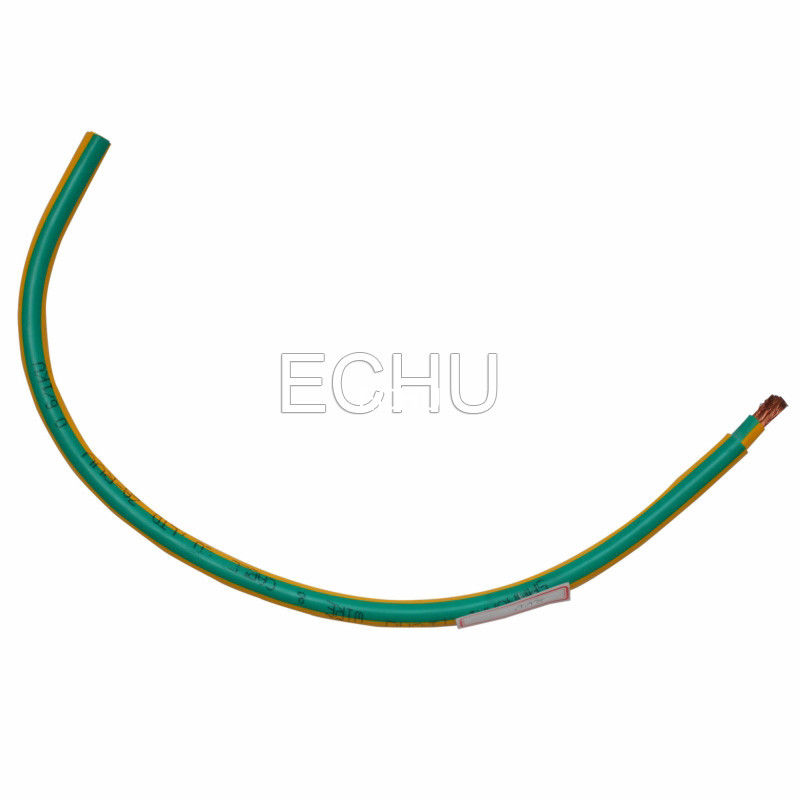

Large Image : ROHS PVC Electrical Earth Cable UL1015 6AWG 600V with UL certificate

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	UL
Model Number:	UL1005

Payment & Shipping Terms:

Minimum Order Quantity:	100-300Meters
Price:	USD0.526-USD1.349/M
Packaging Details:	100M/roll
Delivery Time:	within 10days after receiving payment
Payment Terms:	T/T, Western Union..
Supply Ability:	10000km/week

Contact Now

Detailed Product Description

Related Temperature:	105C	Rated Voltage:	600V
Jacket:	ROHS PVC	Insulation:	ROHS PVC
Color:	Red/white/black/blue/yellow....

ROHS PVC UL1015 Electrical Earth Cable 6AWG 600V

UL Approval

Description:
Related temperature: 105 degree
Rated voltage: 600V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05

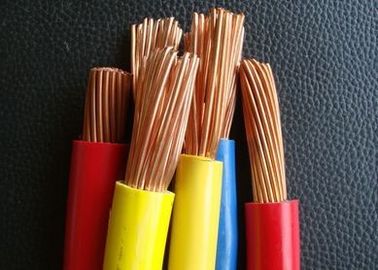

Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test

Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL3386

ROHS PVC Electrical Earth Cable UL1015 6AWG 600V with UL certificate

Type	Size (AWG)	Bare Copper		Tinned Copper		Insulation Thickness (mm)	Weight KG/KM	Insulation O.D. mm			Cross section (mm 2)
Type	Size (AWG)	Conductor		Conductor		Insulation Thickness (mm)	Weight KG/KM	Down		Up	Cross section (mm 2)
UL1015	26	7	0.16	7	0.16	0.76	7.1	2.0	~	2.2	0.14
UL1015	24	11	0.16	11	0.16	0.76	8.3	2.1	~	2.3	0.22
UL1015	22	17	0.16	17	0.16	0.76	10.0	2.3	~	2.5	0.34
UL1015	20	26	0.16	26	0.16	0.76	12.4	2.5	~	2.7	0.52
UL1015	18	41	0.16	41	0.16	0.76	16.2	2.7	~	2.9	0.82
UL1015	17	51	0.16	51	0.16	0.76	19.0	2.8	~	3.0	1.03
UL1015	16	26	0.254	27	0.25	0.76	22.6	3.0	~	3.2	1.32
UL1015	15	33	0.254	34	0.25	0.76	25.9	3.2	~	3.4	1.67
UL1015	14	41	0.254	43	0.25	0.76	31.5	3.4	~	3.6	2.0775
UL1015	13	52	0.254	54	0.25	0.76	36.5	3.6	~	3.8	2.63
UL1015	12	65	0.254	67	0.25	0.76	45.5	3.9	~	4.1	3.29
UL1015	11	82	0.254	85	0.25	0.76	52.6	4.3	~	4.5	4.16
UL1015	10	104	0.254	107	0.25	0.76	67.1	4.8	~	5.0	5.27
UL1015	9	94	0.30	94	0.30	0.76	89.0	5.3	~	5.5	6.64
UL1015	8	118	0.30	118	0.30	1.15	107.5	6.5	~	6.7	8.34
UL1015	7	147	0.30	147	0.30	1.15	140.3	7.0	~	7.2	10.39
UL1015	6	189	0.30	189	0.30	1.52	172.6	8.4	~	8.6	13.36
UL1015	5	238	0.30	238	0.30	1.52	207.6	9.1	~	9.3	16.82
UL1015	4	299	0.30	299	0.30	1.52	267.9	9.8	~	10.0	21.14
UL1015	3	378	0.30	378	0.30	1.52	325.6	10.7	~	11.1	26.72
UL1015	2	475	0.30	475	0.30	1.52	382.5	11.7	~	12.1	33.58
UL1015	1	600	0.30	600	0.30	2.03	495.9	13.8	~	14.2	42.41
UL1015	1/0	251	0.52	272	0.50	2.03	615.3	14.5	~	14.9	53.31
UL1015	2/0	317	0.52	343	0.50	2.03	750.0	15.8	~	16.4	67.32
UL1015	3/0	400	0.52	433	0.50	2.03	923.0	17.2	~	17.8	84.95
UL1015	4/0	505	0.52	546	0.50	2.03	1134.3	18.9	~	19.5	107.25
UL1015	250	598	0.52	647	0.50	2.41	1366.5	20.9	~	21.9	127.00
UL1015	300	716	0.52	774	0.50	2.41	1609.3	22.5	~	23.5	152.06
UL1015	350	833	0.52	901	0.50	2.41	1852.7	23.9	~	24.9	176.91
UL1015	400	955	0.52	1033	0.50	2.41	2104.3	25.3	~	26.3	202.82
UL1015	450	1073	0.52	1161	0.50	2.41	2344.7	26.5	~	27.5	227.88
UL1015	500	1191	0.52	1288	0.50	2.41	2584.8	27.7	~	28.7	252.94
UL1015	550	1313	0.52	1420	0.50	2.79	2898.6	29.6	~	30.6	278.84
