E550028 ECHU Cable 1000V 200℃ UL3644 UL758 Certified High Temperature Sr Insulation Power Single Core Cable

Name: E550028 ECHU Cable 1000V 200℃ UL3644 UL758 Certified High Temperature Sr Insulation Power Single Core Cable
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL3644
Price: 2.30 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL3644
MOQ:	100meter
Price:	USD0.302 to USD6.255/m
Payment Terms:	T/T, L/C
Supply Ability:	10000km per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Black/red/....

Voltage:

1000V

Temperature:

-60-+200℃

Condutor:

Bare Copper Or Tinned Copper

Packaging Details:

in roll or splint reel

Product Description

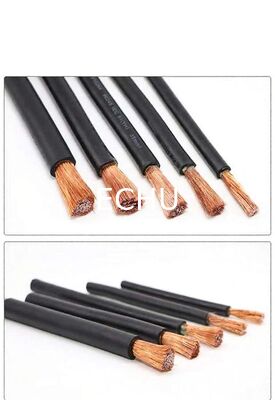

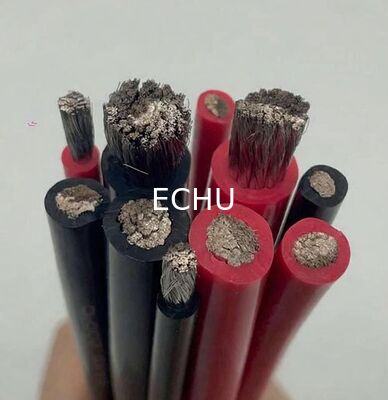

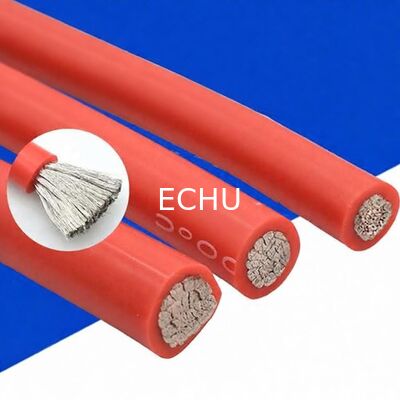

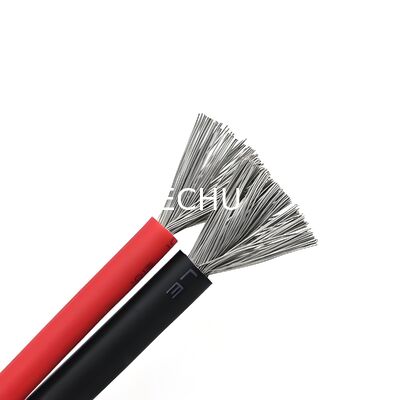

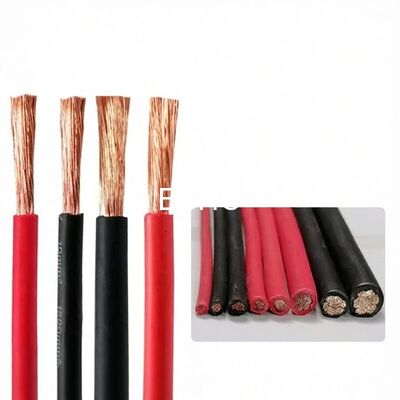

UL3644 Single-Conductor Silicone Rubber AWM Cable

UL3644 is high-temperature silicone wire complying with UL758 Appliance Wiring Material standard.

Construction Conductor: Solid or Class 5 flexible stranded bare / tinned copper (30AWG ~ 1000kcmil); Insulation: Extruded silicone rubber (SR).
Electrical & Thermal Ratings Rated Voltage: 1000V AC Rated Temperature: 150°C or 200°C (dry locations) Operating temperature range: -60°C ~ +200°C
Flame Performance Self-extinguishing, meets UL FT2 horizontal flame test.
Key Features Excellent flexibility, outstanding heat resistance, low-temperature resistance, ozone resistance, UV resistance and chemical resistance. Stable dielectric property; uniform insulation thickness for easy stripping. Halogen-free, RoHS compliant.
Typical Applications Internal wiring for household appliances, heating devices, ovens, motors, transformers, inverters, lighting equipment, new energy equipment and general industrial machinery under high-temperature conditions.

Item	UL3644 Silicone rubber cables
Conductor	Bare copper
Insulation	Silicone Rubber
Rated Voltage	1000V
Temperature Range	Maximum Working Temperature: -60ºC to +200ºC
Color	Optional
Application	This cable is mainly used for internal wiring in high temperature areas such as household appliances, lighting, heaters, motors, dryers, and ovens
