E550028 UL3956 UL/CE Dual Certified Single Conductor Shielded Silicone External Wiring Cable

E550028 UL3956 UL/CE Dual Certified Single Conductor Shielded Silicone External Wiring Cable

E550028 UL3956 UL/CE Dual Certified Single Conductor Shielded Silicone External Wiring Cable

Brand Name: ECHU
Model Number: UL3956
MOQ: 100meter
Price: USD0.302 to USD9.255/m
Payment Terms: T/T, L/C
Supply Ability: 10000km per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL
Color:
Black/red/....
Voltage:
600V
Temperature:
150℃
Condutor:
Bare Copper Or Tinned Copper
Packaging Details:
in roll or splint reel
Product Description

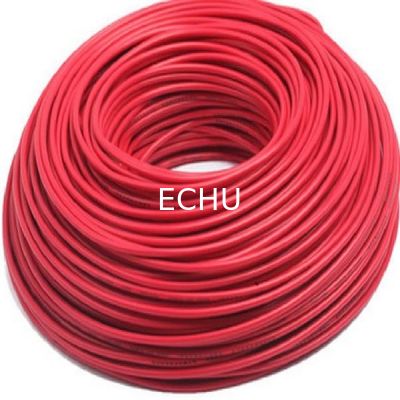

UL3956 Single-Conductor Silicone Rubber Cable

UL3956 is a high-temperature silicone rubber wire under UL758 Appliance Wiring Material standard.

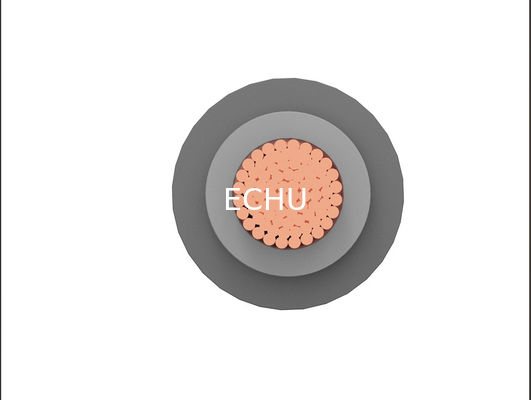

  • Construction Conductor: Class 5 flexible stranded bare copper; Insulation & Outer Sheath: Silicone Rubber (SR).
  • Electrical & Thermal Ratings Rated Voltage: 600V Operating Temperature: -60°C ~ +150°C (dry locations)
  • Flame Performance Self-extinguishing, complies with UL FT2 horizontal flame test.
  • Key Features Excellent flexibility, outstanding heat resistance, cold resistance, ozone resistance, UV resistance and chemical resistance; halogen-free, RoHS compliant.
  • Typical Applications Internal wiring for household appliances, heaters, ovens, dryers, motors, lighting equipment, industrial machinery, photovoltaic equipment and other high-temperature devices.
Item UL3956 Silicone rubber cables
Conductor Bare copper
Insulation Silicone Rubber
Outer Sheath Silicone Rubber
Shield Optional
Outer Sheath Rubber
Rated Voltage 600V
Temperature Range Maximum Working Temperature: -60ºC to +150ºC
Color Optional
Application This cable is widely used in household appliances, lighting, heaters
Internal wiring for robots and industrial equipment







E550028 UL3956 UL/CE Dual Certified Single Conductor Shielded Silicone External Wiring Cable
