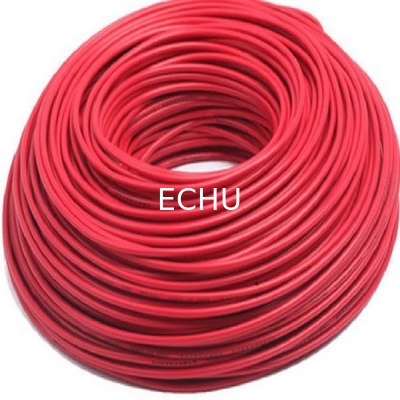

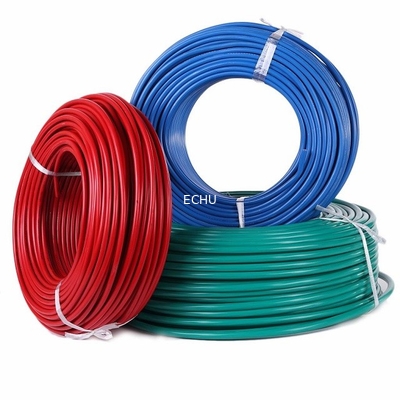

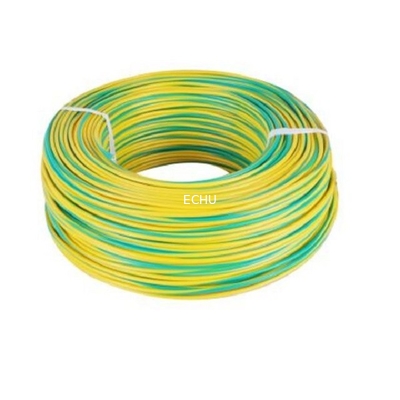

ECHU CE Certifcated UL Cable UL1015 14AWG 600V with UL and CE certificate

Name: ECHU CE Certifcated UL Cable UL1015 14AWG 600V with UL and CE certificate
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL1015
Price: 0.06 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL1015
MOQ:	300Meters
Price:	USD0.055-USD0.289/M
Payment Terms:	T/T, Western Union
Supply Ability:	10000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Related Temperature:

105C

Rated Voltage:

600V

Jacket:

ROHS PVC

Insulation:

ROHS PVC

Color:

Red/white/black/blue/yellow....

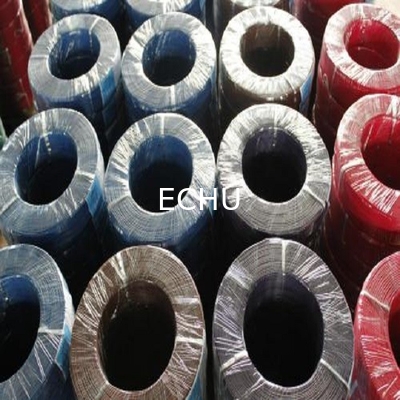

Packaging Details:

100M/roll

Product Description

ROHS PVC UL1015 Electrical Earth Cable 16AWG 600V

UL Approval

Description:
Related temperature: 105 degree
Rated voltage: 600V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05

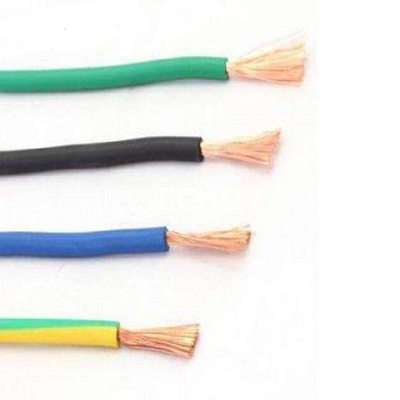

Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test

Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL3386

ECHU CE Certifcated UL Cable UL1015 14AWG 600V with UL and CE certificate 0

ECHU CE Certifcated UL Cable UL1015 14AWG 600V with UL and CE certificate 1

Type	Size (AWG)	Bare Copper		Tinned Copper		Insulation Thickness (mm)	Weight KG/KM	Insulation O.D. mm			Cross section (mm 2)
Type	Size (AWG)	Conductor		Conductor		Insulation Thickness (mm)	Weight KG/KM	Down		Up	Cross section (mm 2)
UL1015	26	7	0.16	7	0.16	0.76	7.1	2.0	~	2.2	0.14
UL1015	24	11	0.16	11	0.16	0.76	8.3	2.1	~	2.3	0.22
UL1015	22	17	0.16	17	0.16	0.76	10.0	2.3	~	2.5	0.34
UL1015	20	26	0.16	26	0.16	0.76	12.4	2.5	~	2.7	0.52
UL1015	18	41	0.16	41	0.16	0.76	16.2	2.7	~	2.9	0.82
UL1015	17	51	0.16	51	0.16	0.76	19.0	2.8	~	3.0	1.03
UL1015	16	26	0.254	27	0.25	0.76	22.6	3.0	~	3.2	1.32
UL1015	15	33	0.254	34	0.25	0.76	25.9	3.2	~	3.4	1.67
UL1015	14	41	0.254	43	0.25	0.76	31.5	3.4	~	3.6	2.0775
UL1015	13	52	0.254	54	0.25	0.76	36.5	3.6	~	3.8	2.63
UL1015	12	65	0.254	67	0.25	0.76	45.5	3.9	~	4.1	3.29
UL1015	11	82	0.254	85	0.25	0.76	52.6	4.3	~	4.5	4.16
UL1015	10	104	0.254	107	0.25	0.76	67.1	4.8	~	5.0	5.27
UL1015	9	94	0.30	94	0.30	0.76	89.0	5.3	~	5.5	6.64
UL1015	8	118	0.30	118	0.30	1.15	107.5	6.5	~	6.7	8.34
UL1015	7	147	0.30	147	0.30	1.15	140.3	7.0	~	7.2	10.39
UL1015	6	189	0.30	189	0.30	1.52	172.6	8.4	~	8.6	13.36
UL1015	5	238	0.30	238	0.30	1.52	207.6	9.1	~	9.3	16.82
UL1015	4	299	0.30	299	0.30	1.52	267.9	9.8	~	10.0	21.14
UL1015	3	378	0.30	378	0.30	1.52	325.6	10.7	~	11.1	26.72
UL1015	2	475	0.30	475	0.30	1.52	382.5	11.7	~	12.1	33.58
UL1015	1	600	0.30	600	0.30	2.03	495.9	13.8	~	14.2	42.41
UL1015	1/0	251	0.52	272	0.50	2.03	615.3	14.5	~	14.9	53.31
UL1015	2/0	317	0.52	343	0.50	2.03	750.0	15.8	~	16.4	67.32
UL1015	3/0	400	0.52	433	0.50	2.03	923.0	17.2	~	17.8	84.95
UL1015	4/0	505	0.52	546	0.50	2.03	1134.3	18.9	~	19.5	107.25
UL1015	250	598	0.52	647	0.50	2.41	1366.5	20.9	~	21.9	127.00
UL1015	300	716	0.52	774	0.50	2.41	1609.3	22.5	~	23.5	152.06
UL1015	350	833	0.52	901	0.50	2.41	1852.7	23.9	~	24.9	176.91
UL1015	400	955	0.52	1033	0.50	2.41	2104.3	25.3	~	26.3	202.82
UL1015	450	1073	0.52	1161	0.50	2.41	2344.7	26.5	~	27.5	227.88
UL1015	500	1191	0.52	1288	0.50	2.41	2584.8	27.7	~	28.7	252.94
UL1015	550	1313	0.52	1420	0.50	2.79	2898.6	29.6	~	30.6	278.84
