Tinned Copper Solar Cable, PV Solar Cable, DC Cable

China Tinned Copper Solar Cable, PV Solar Cable, DC Cable supplier
Tinned Copper Solar Cable, PV Solar Cable, DC Cable supplier Tinned Copper Solar Cable, PV Solar Cable, DC Cable supplier Tinned Copper Solar Cable, PV Solar Cable, DC Cable supplier Tinned Copper Solar Cable, PV Solar Cable, DC Cable supplier

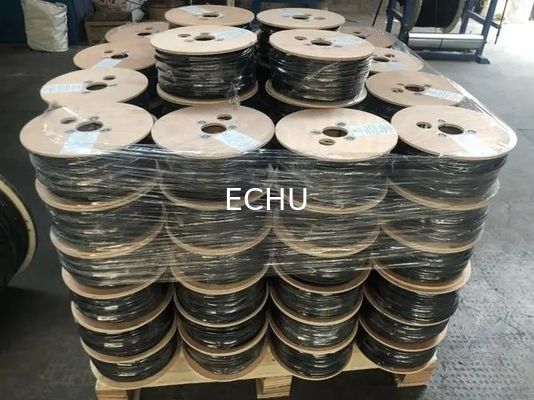

Large Image :  Tinned Copper Solar Cable, PV Solar Cable, DC Cable

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: TUV Certificate
Model Number: PV1-F, H1Z2Z2-K

Payment & Shipping Terms:

Minimum Order Quantity: 300M
Price: USD0.102/M-USD0.898/M

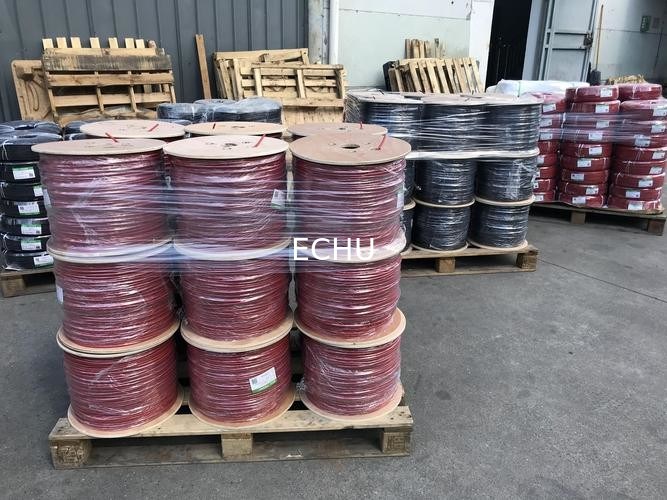

Packaging Details: plywood reel or plywood box
Delivery Time: 10days
Payment Terms: T/T, Western Union
Supply Ability: 1000KM/Week
Detailed Product Description
Insulation: XLPE Jacket: XLPE
Currect: AC Cable Voltage: Low Voltage
Feature: Super Heat-proof, Flame Retardant, Halogen-free, Weathering Resistance Conductor: Stranded Tinned Copper Wire
Model: PV1-F Port: Shanghai
HS Code: 854449 Color: Black, Red

Tinned Copper Solar Cable, PV Solar Cable, DC Cable

Tinned Copper Solar Cable, PV Solar Cable, DC Cable



PV1-F Solar PV cable with TUV certificate


Features:
1. Conductor: Copper acc. IEC 60228+EN60228, VDE0295 CLASS5, Tinned, Fine stranded copper conductor.
2. Temperature range for application is from -40C to 90C.
Max. Temperature at conductor can be 120C.
3. The permitted short circuit temperature referring to a period of 5s is 200C.
4. The solar PV cable is resistant to UV, ozone and hydrolysis.
5. It is also known for its high mechanical robustness and great resistance to water, oil and chemicals.
6. This solar PV cable is TUV approved, so customers can feel secure in using it.

Main Technical Specification of PV1-F 1*35.0 MM2 Solar PV cable
Specification Type PV1-F 1*35.0 MM2
Rated Voltage AC 0.6/1KV; DC 1.8KV
Test Voltage 6500V
Standard IEC 60228+EN60228, VDE0295 CLASS5
Nominal Cross-sectional Area 35.0 mm2
Flame Resistance IEC60332-1-2+EN60332-1-2
Inner Sheath XLPO sheath UL4703
Sheath XLPO sheath UL4703
Cable Approx. OD 14.7 MM
Cert. RoHS + TUV


Specification Type PV1-F 1*35.0 MM2
Rated Voltage AC 0.6/1KV; DC 1.8KV
Test Voltage 6500V
Standard IEC 60228+EN60228, VDE0295 CLASS5
Nominal Cross-sectional Area 35.0 mm2
Flame Resistance IEC60332-1-2+EN60332-1-2
Inner Sheath XLPO sheath UL4703
Sheath XLPO sheath UL4703
Cable Approx. OD 14.7 MM
Cert. RoHs + TUV
