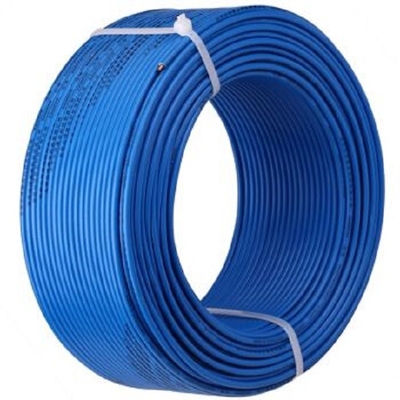

E312831 UL Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V

Name: E312831 UL Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL10269
Price: 0.07 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL10269
MOQ:	300meter
Price:	US$0.073-0.547/m
Payment Terms:	T/T, Western Union
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

E312831

Insulation:

ROHS PVC

Jacket:

ROHS PVC

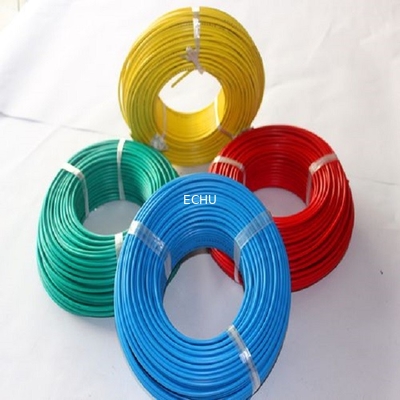

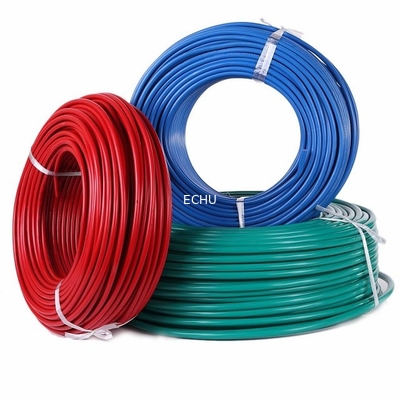

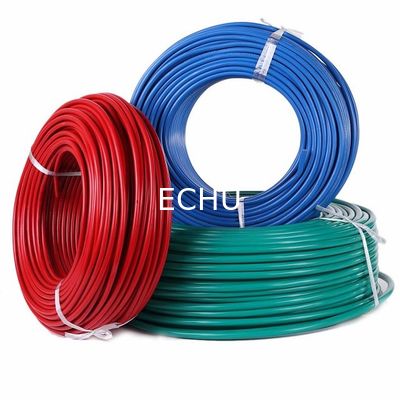

Color:

Different Kind Of Colors

Voltage:

1000V

Packaging Details:

305m/roll, 610m/roll

Product Description

Product Description:

UL CERT.:E312831

UL10269: 26AWG. 24AWG, 22AWG, 20AWG, 18AWG, 16AWG, 14AWG, 12AWG.....1AWG, 2AWG, 3AWG,4AWG,5AWG,6AWG,7AWG,8AWG, 1/0AWG,2/0AWG, 3/0 AWG, 4/0AWG, 250Kcmil, 300kcmil,350kcmil, 400kcmil,450kcmil,500kcmil,500kcmil

Construction

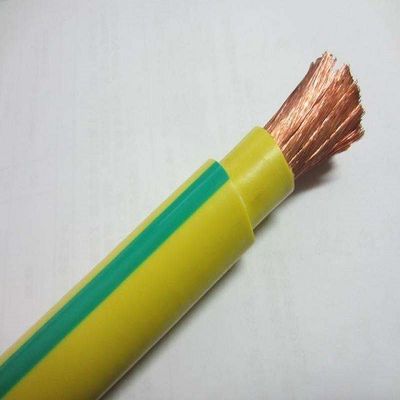

Conductor :bare copper or tinned copper conductor Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:1000V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 105 ℃ Oil

E312831 UL Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V 0

E312831 UL Certified ROHS PVC Double Insulation 16AWG 600V UL10269 105℃ Electrical Wire with voltage 1000V 1

UL10269UL10269

TYPE	Spec. AWG	Bare Copper		Tinned Copper		Outside Diameter (mm)	Remark
		Conductor No.	Conductor Dia.	Conductor No.	Conductor Dia.
UL10269	8	118	0.3	118	0.30	7.1
UL10269	7	147	0.3	147	0.30	7.5
UL10269	6	189	0.3	189	0.30	9.2
UL10269	5	238	0.3	238	0.30	9.8
UL10269	4	299	0.3	299	0.30	10.6
UL10269	3	378	0.3	378	0.30	11.4
UL10269	2	475	0.3	475	0.30	12.4
UL10269	1	600	0.3	600	0.30	15
UL10269	1/0	251	0.52	272	0.50	15.9
UL10269	2/0	317	0.52	343	0.50	17.4
UL10269	3/0	400	0.52	433	0.50	19
UL10269	4/0	505	0.52	546	0.50	20.7
UL10269	250	598	0.52	647	0.50	22.8
UL10269	300	716	0.52	774	0.50	24.4
UL10269	350	833	0.52	901	0.50	25.7
UL10269	400	955	0.52	1033	0.50	27.4
