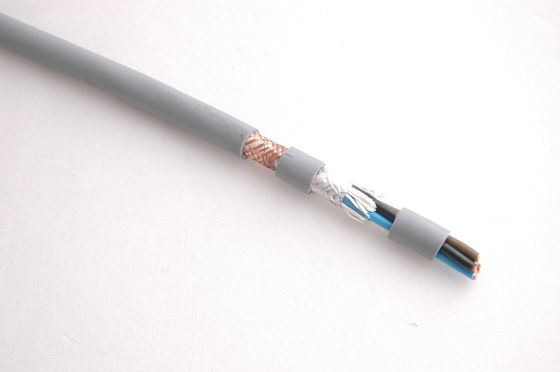

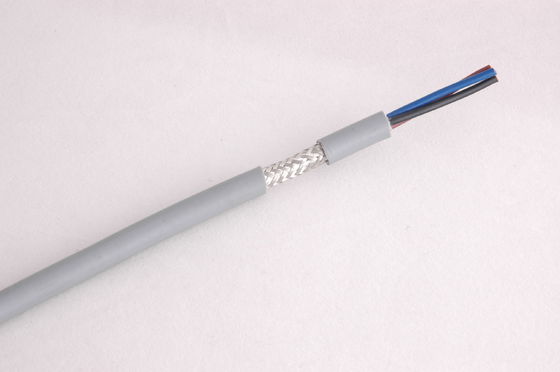

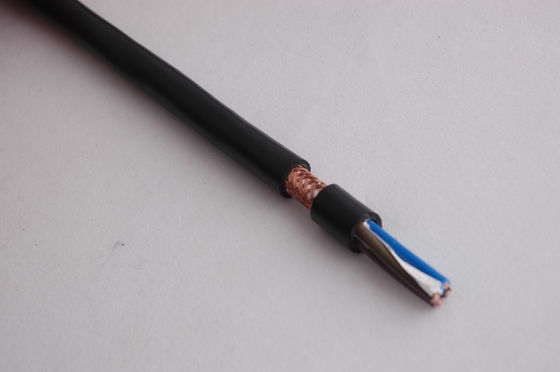

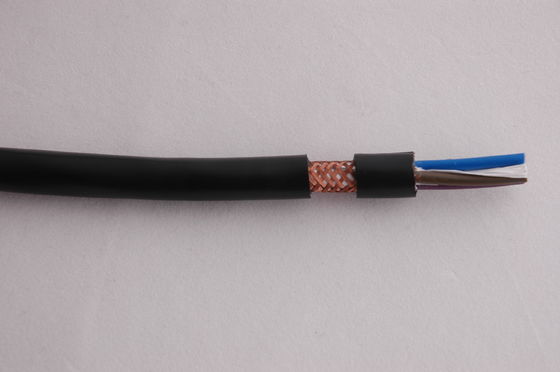

Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color

China Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color supplier
Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color supplier Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color supplier Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color supplier Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color supplier Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color supplier

Large Image :  Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: CCC, CE
Model Number: RVV

Payment & Shipping Terms:

Minimum Order Quantity: 300Meters
Price: 0.117USD-9.962USD/M
Packaging Details: plywood reel
Delivery Time: within 10days after receiving payment
Payment Terms: T/T, Western Union., L/C
Supply Ability: 100000km/week
Detailed Product Description
Application: Connect And Control Cable Properties: High Mechanical Property, Excellent Insulation, Good Chemistry Stability, Water Resistance
Core Color: Colour Core Identification Or Number Identification Sheath: 70°C PVC
Optional Type: Flat, RVVB

Round Electrical Cable

Applications:

Working as connecting and control cable under dry or wet indoor situation, especially for kinds of electronic installation of industrial condition. The cable cross section area 0.5sqmm or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belchin and air conditionor installation, For its special flexibility, it could also work in installation or fixation.

Properties:

For PVC's high mechanical property, excellent insulation, good chemistry stability, water resistance. Coloured core identification cable has more excellent capability and safety service.

Structure:

Conductor: Copper acc. To VDE0295CLASS 5
Insulation: Special PVC
Inner liner: PP or non-woven for buffer
Sheath: PVC 70C sheath, black (RAL9005) or Grey (RAL7001)

Standards: JB8734.4-1998, GB5023.5-2008

Technical data:
Minimum bending diameter
Fixed Installation: 15xouter diameter
Flexing Installation: 6xouter diameter
Temprature range:
Flexing Installation: -10C to +70C
Fixed Installation: -30C to +70C
Test Voltage: </=0.5mm: 2000V
>/=0.5mm: 2500V
Working temperature: : </=0.5mm: 300/300V
>/=0.5mm: 300/500V
Optional: Flat Cable

Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color

Round Sheild Cable for Electrical Apparatus RVVP 2Cx1.5sqmm with CE certificate in Grey Color

Type Size Conductor Weight (KG/KM) O.D.(mm)
RVVP 0.75*2C 49 0.14 66 6.2
RVVP 0.75*3C 49 0.14 80 6.6
RVVP 0.75*4C 49 0.14 97 7.2
RVVP 0.75*5C 49 0.14 116 8.2
RVVP 0.75*6C 49 0.14 134 8.9
RVVP 0.75*7C 49 0.14 146 8.9
RVVP 0.75*8C 49 0.14 165 9.7
RVVP 0.75*9C 49 0.14 189 10.5
RVVP 0.75*10C 49 0.14 209 11.5
RVVP 0.75*11C 49 0.14 225 11.9
RVVP 0.75*12C 49 0.14 233 11.9
RVVP 0.75*13C 49 0.14 253 13
RVVP 0.75*14C 49 0.14 264 13
RVVP 0.75*15C 49 0.14 284 13.6
RVVP 0.75*16C 49 0.14 297 13.6
RVVP 0.75*17C 49 0.14 319 14.2
RVVP 0.75*18C 49 0.14 330 14.2
RVVP 0.75*19C 49 0.14 342

14.2

RVVP 0.75*20C 49 0.14 359 14.6
RVVP 0.75*21C 49 0.14 375 15
RVVP 0.75*22C 49 0.14 400 16.3
RVVP 0.75*23C 49 0.14 422 17
RVVP 0.75*24C 49 0.14 434 17
RVVP 0.75*25C 49 0.14 451 17.3
RVVP 0.75*26C 49 0.14 461 17.3
RVVP 0.75*27C 49 0.14 472 17.3
RVVP 0.75*28C 49 0.14 493 18
RVVP 0.75*29C 49 0.14 505 18
RVVP 0.75*30C 49 0.14 516 18
RVVP 0.75*31C 49 0.14 538 19
RVVP 0.75*32C 49 0.14 550 19
RVVP 0.75*33C 49 0.14 561 19
RVVP 0.75*34C 49 0.14 584 19.7
RVVP 0.75*35C 49 0.14 596 19.7
RVVP 0.75*36C 49 0.14 607 19.7
RVVP 0.75*37C 49 0.14 619 19.7
RVVP 0.75*38C 49 0.14 642 19.7
