Application: | Connect And Control Cable | Properties: | High Mechanical Property, Excellent Insulation, Good Chemistry Stability, Water Resistance |
---|---|---|---|
Core Color: | Colour Core Identification Or Number Identification | Sheath: | 70°C PVC |
Optional Type: | Flat, RVVB |

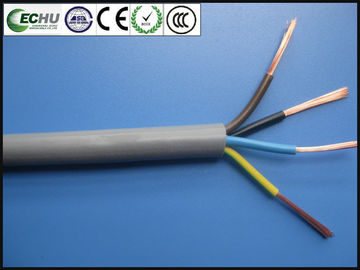

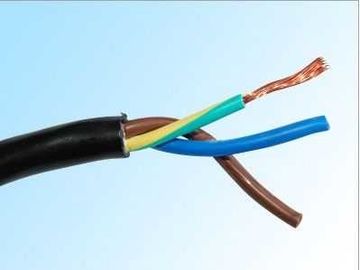

Soft Round Cable for Electrical Apparatus RVV type with CE certificate in Black Color
Applications:
Working as connecting and control cable under dry or wet indoor situation, especially for kinds of electronic installation of industrial condition. The cable cross section area 0.5sqmm or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belchin and air conditionor installation, For its special flexibility, it could also work in installation or fixation.
Properties:
For PVC's high mechanical property, excellent insulation, good chemistry stability, water resistance. Coloured core identification cable has more excellent capability and safety service.

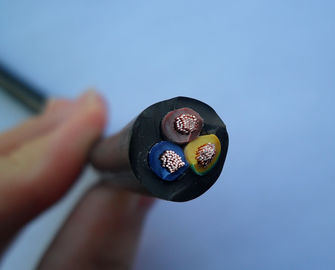

Structure:
Conductor: Copper acc. To VDE0295CLASS 5
Insulation: Special PVC
Inner liner: PP or non-woven for buffer
Sheath: PVC 70C sheath, black (RAL9005) or Grey (RAL7001)
Standards: JB8734.4-1998, GB5023.5-2008
Technical data:
Minimum bending diameter
Fixed Installation: 15xouter diameter
Flexing Installation: 6xouter diameter
Temprature range:
Flexing Installation: -10C to +70C
Fixed Installation: -30C to +70C
Test Voltage: </=0.5mm: 2000V
>/=0.5mm: 2500V
Working temperature: : </=0.5mm: 300/300V
>/=0.5mm: 300/500V
Optional: Flat Cable
Type | Size | Conductor | Weight (KG/KM) | O.D.(mm) | |
RVV | 0.75*2C | 49 | 0.14 | 48 | 6.2 |
RVV | 0.75*3C | 49 | 0.14 | 62 | 6.5 |
RVV | 0.75*4C | 49 | 0.14 | 77 | 7.1 |
RVV | 0.75*5C | 49 | 0.14 | 91 | 7.7 |
RVV | 0.75*6C | 49 | 0.14 | 107 | 8.4 |
RVV | 0.75*7C | 49 | 0.14 | 119 | 8.4 |
RVV | 0.75*8C | 49 | 0.14 | 143 | 9.5 |
RVV | 0.75*9C | 49 | 0.14 | 159 | 10.3 |
RVV | 0.75*10C | 49 | 0.14 | 175 | 11 |
RVV | 0.75*11C | 49 | 0.14 | 189 | 11.3 |
RVV | 0.75*12C | 49 | 0.14 | 212 | 11.7 |
RVV | 0.75*13C | 49 | 0.14 | 228 | 12.3 |
RVV | 0.75*14C | 49 | 0.14 | 240 | 12.3 |
RVV | 0.75*15C | 49 | 0.14 | 256 | 12.9 |
RVV | 0.75*16C | 49 | 0.14 | 268 | 12.9 |
RVV | 0.75*17C | 49 | 0.14 | 284 | 13.6 |
RVV | 0.75*18C | 49 | 0.14 | 297 | 13.6 |
RVV | 0.75*19C | 49 | 0.14 | 309 | 13.6 |
RVV | 0.75*20C | 49 | 0.14 | 323 | 13.9 |
RVV | 0.75*21C | 49 | 0.14 | 337 | 14.3 |
RVV | 0.75*22C | 49 | 0.14 | 355 | 15.1 |
RVV | 0.75*23C | 49 | 0.14 | 371 | 15.8 |
RVV | 0.75*24C | 49 | 0.14 | 383 | 15.8 |
RVV | 0.75*25C | 49 | 0.14 | 397 | 16.1 |
RVV | 0.75*26C | 49 | 0.14 | 409 | 16.1 |
RVV | 0.75*27C | 49 | 0.14 | 421 | 16.1 |
RVV | 0.75*28C | 49 | 0.14 | 437 | 16.7 |
RVV | 0.75*29C | 49 | 0.14 | 449 | 16.7 |
RVV | 0.75*30C | 49 | 0.14 | 478 | 17.1 |
RVV | 0.75*31C | 49 | 0.14 | 494 | 17.7 |
RVV | 0.75*32C | 49 | 0.14 | 506 | 17.7 |
RVV | 0.75*33C | 49 | 0.14 | 518 | 17.7 |
RVV | 0.75*34C | 49 | 0.14 | 535 | 18.4 |
RVV | 0.75*35C | 49 | 0.14 | 547 | 18.4 |
RVV | 0.75*36C | 49 | 0.14 | 560 | 18.4 |
RVV | 0.75*37C | 49 | 0.14 | 572 | 18.4 |
RVV | 0.75*38C | 49 | 0.14 | 588 | 19.1 |
