22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

China 22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated supplier
22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated supplier 22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated supplier 22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated supplier 22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated supplier 22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated supplier 22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated supplier

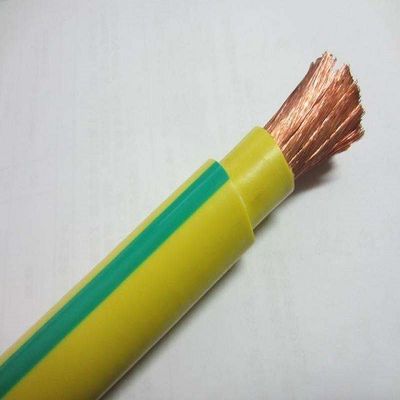

Large Image :  22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: UL. E312831
Model Number: UL1061

Payment & Shipping Terms:

Minimum Order Quantity: 305meter
Price: 0.0117-0.0386USD/M
Packaging Details: 305meter per roll
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000km/week
Detailed Product Description
Product Name: UL1061 Electrical Wire Conductor: Bare Copper Or Tinned Copper
Colors: 12 Different Kinds Of Color Company Type: Manufacturer
Range Of Application: Internal Wiring Brand: ECHU
Voltage: 300V

UL1061 Sr-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light



Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible

This type of cable have the advantage of the cable have smaller outside diameter, can meet higher using requirement.

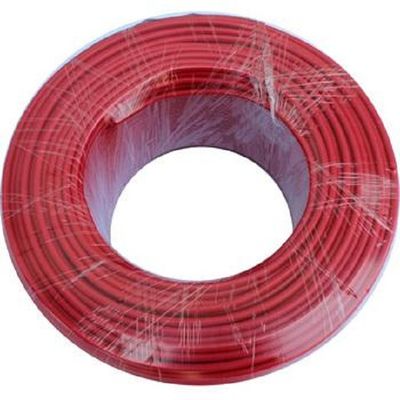

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

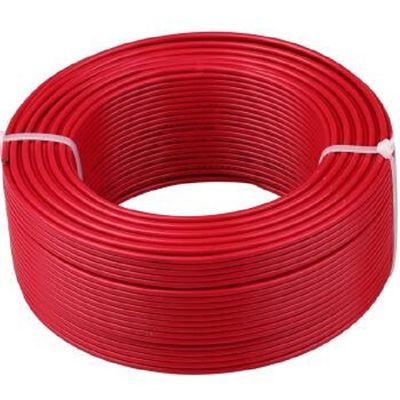

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

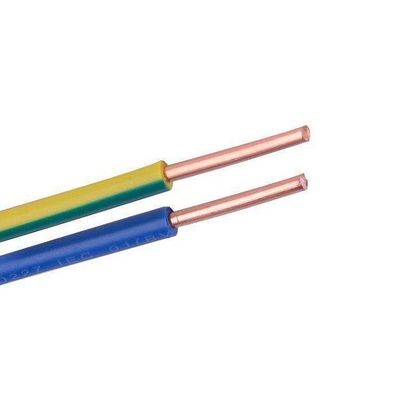

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

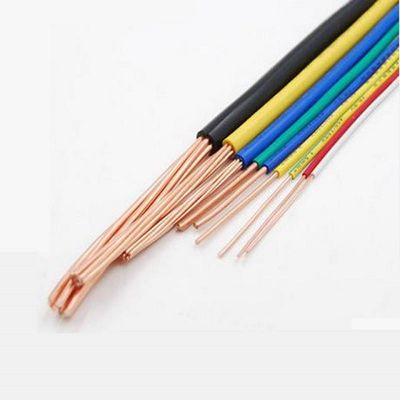

22AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated


Conductor Insulation Maximum Resistance at 20ºC
Ω
/km
AWG No./mm Dia.
mm
Nom. Thick.
mm
Nom.Dia.
mm
30 7/0.1 0.30 0.26 0.82 354
28 7/0.127 0.38 0.26 0.90 223
26 7/0.16 0.48 0.26 1.00 139
24 11/0.16 0.61 0.27 1.15 88.9
22 17/0.16 0.76 0.26 1.28 57.5
20 26/0.16 0.94 0.26 1.46 34.6
18 41/0.16 1.18 0.26 1.70 23.3
16 26/0.254 1.49 0.26 2.02 15.1
