Product Details:
Payment & Shipping Terms:
|
Type: | Insulaton | Application: | Appliance |
---|---|---|---|
Rated Voltage: | 600V, 1000V | Rated Temp: | 105℃ |
Conductor Material: | Copper | Conductor Type: | Stranded |
UL Number: | E312831 |

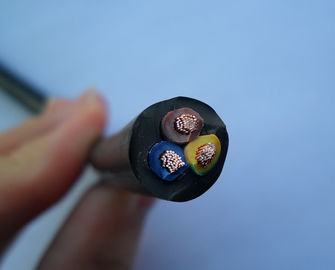

RoHS UL2501 PVC Double Insulated Copper Wire Multi Core Shielded Cable
Type | Size | Cond. No. | single cond. diaφ | Weight | OD |
KG/KM | mm | ||||
UL2501 | 14AWG*2C | 41 | 0.254 | 155.8 | 10 |
UL2501 | 14AWG*3C | 41 | 0.254 | 185.2 | 10.6 |
UL2501 | 14AWG*4C | 41 | 0.254 | 222.8 | 11.5 |
UL2501 | 14AWG*5C | 41 | 0.254 | 262.3 | 12.5 |
UL2501 | 14AWG*6C | 41 | 0.254 | 302.7 | 13.5 |
UL2501 | 14AWG*7C | 41 | 0.254 | 333.9 | 13.5 |
UL2501 | 14AWG*8C | 41 | 0.254 | 374.2 | 14.6 |
UL2501 | 14AWG*9C | 41 | 0.254 | 421.2 | 16 |
UL2501 | 14AWG*10C | 41 | 0.254 | 471.1 | 17 |
UL2501 | 14AWG*11C | 41 | 0.254 | 512.2 | 17.6 |
UL2501 | 14AWG*12C | 41 | 0.254 | 534.4 | 17.6 |
UL2501 | 14AWG*13C | 41 | 0.254 | 534.5 | 18.5 |
UL2501 | 14AWG*14C | 41 | 0.254 | 565.8 | 18.5 |
UL2501 | 14AWG*15C | 41 | 0.254 | 604.5 | 19.5 |
UL2501 | 14AWG*16C | 41 | 0.254 | 635.8 | 19.5 |
UL2501 | 14AWG*17C | 41 | 0.254 | 674.9 | 20.5 |
UL2501 | 14AWG*18C | 41 | 0.254 | 706.1 | 20.5 |
UL2501 | 14AWG*19C | 41 | 0.254 | 737.4 | 20.5 |
UL2501 | 14AWG*20C | 41 | 0.254 | 824.3 | 22.1 |
UL2501 | 14AWG*21C | 41 | 0.254 | 860.6 | 22.6 |
UL2501 | 14AWG*22C | 41 | 0.254 | 905.7 | 24 |
UL2501 | 14AWG*23C | 41 | 0.254 | 947.3 | 25.1 |
UL2501 | 14AWG*24C | 41 | 0.254 | 978.5 | 25.1 |
UL2501 | 14AWG*25C | 41 | 0.254 | 1015.1 | 25.6 |
UL2501 | 14AWG*26C | 41 | 0.254 | 1046.3 | 25.6 |
UL2501 | 14AWG*27C | 41 | 0.254 | 1077.6 | 25.6 |
UL2501 | 14AWG*28C | 41 | 0.254 | 1177.1 | 27.4 |
UL2501 | 14AWG*29C | 41 | 0.254 | 1208.4 | 27.4 |
UL2501 | 14AWG*30C | 41 | 0.254 | 1239.6 | 27.4 |
UL2501 | 14AWG*31C | 41 | 0.254 | 1282.9 | 28.5 |
UL2501 | 14AWG*32C | 41 | 0.254 | 1314.2 | 28.5 |
UL2501 | 14AWG*33C | 41 | 0.254 | 1345.4 | 28.5 |
UL2501 | 14AWG*34C | 41 | 0.254 | 1389.3 | 29.5 |
UL2501 | 14AWG*35C | 41 | 0.254 | 1420.6 | 29.5 |
UL2501 | 14AWG*36C | 41 | 0.254 | 1451.8 | 29.5 |
UL2501 | 14AWG*37C | 41 | 0.254 | 1483.1 | 29.5 |
UL2501 | 13AWG*2C | 52 | 0.254 | 173.7 | 10.4 |
UL2501 | 13AWG*3C | 52 | 0.254 | 208.5 | 11 |
UL2501 | 13AWG*4C | 52 | 0.254 | 252.2 | 12 |
UL2501 | 13AWG*5C | 52 | 0.254 | 298 | 13 |
UL2501 | 13AWG*6C | 52 | 0.254 | 344.8 | 14.1 |
UL2501 | 13AWG*7C | 52 | 0.254 | 381.8 | 14.1 |
UL2501 | 13AWG*8C | 52 | 0.254 | 428.4 | 15.3 |
UL2501 | 13AWG*9C | 52 | 0.254 | 482.4 | 16.7 |
UL2501 | 13AWG*10C | 52 | 0.254 | 539.9 | 17.8 |
UL2501 | 13AWG*11C | 52 | 0.254 | 587.6 | 18.4 |
UL2501 | 13AWG*12C | 52 | 0.254 | 614.5 | 18.4 |
UL2501 | 13AWG*13C | 52 | 0.254 | 620.4 | 19.4 |
UL2501 | 13AWG*14C | 52 | 0.254 | 657.5 | 19.4 |
UL2501 | 13AWG*15C | 52 | 0.254 | 702.7 | 20.4 |
UL2501 | 13AWG*16C | 52 | 0.254 | 739.8 | 20.4 |
UL2501 | 13AWG*17C | 52 | 0.254 | 838.1 | 22.6 |
UL2501 | 13AWG*18C | 52 | 0.254 | 875.1 | 22.6 |
UL2501 | 13AWG*19C | 52 | 0.254 | 912.2 | 22.6 |
UL2501 | 13AWG*20C | 52 | 0.254 | 955 | 23.1 |
UL2501 | 13AWG*21C | 52 | 0.254 | 997.5 | 23.7 |
UL2501 | 13AWG*22C | 52 | 0.254 | 1049.5 | 25.2 |
UL2501 | 13AWG*23C | 52 | 0.254 | 1156.6 | 27.2 |
UL2501 | 13AWG*24C | 52 | 0.254 | 1193.6 | 27.2 |
UL2501 | 13AWG*25C | 52 | 0.254 | 1237.6 | 27.8 |
UL2501 | 13AWG*26C | 52 | 0.254 | 1274.7 | 27.8 |
UL2501 | 13AWG*27C | 52 | 0.254 | 1311.7 | 27.8 |
UL2501 | 13AWG*28C | 52 | 0.254 | 1360.6 | 28.7 |
UL2501 | 13AWG*29C | 52 | 0.254 | 1397.6 | 28.7 |
UL2501 | 13AWG*30C | 52 | 0.254 | 1434.6 | 28.7 |
UL2501 | 13AWG*31C | 52 | 0.254 | 1484.7 | 29.8 |
UL2501 | 13AWG*32C | 52 | 0.254 | 1521.7 | 29.8 |
UL2501 | 13AWG*33C | 52 | 0.254 | 1558.8 | 29.8 |
UL2501 | 13AWG*34C | 52 | 0.254 | 1609.5 | 30.9 |
UL2501 | 13AWG*35C | 52 | 0.254 | 1646.5 | 30.9 |
UL2501 | 13AWG*36C | 52 | 0.254 | 1683.5 | 30.9 |
UL2501 | 13AWG*37C | 52 | 0.254 | 1720.6 | 30.9 |
UL2501 | 12AWG*2C | 65 | 0.254 | 198.8 | 11 |
UL2501 | 12AWG*3C | 65 | 0.254 | 240.4 | 11.7 |
UL2501 | 12AWG*4C | 65 | 0.254 | 292.2 | 12.7 |
UL2501 | 12AWG*5C | 65 | 0.254 | 346.4 | 13.8 |
UL2501 | 12AWG*6C | 65 | 0.254 | 401.7 | 15 |
UL2501 | 12AWG*7C | 65 | 0.254 | 446.4 | 15 |
UL2501 | 12AWG*8C | 65 | 0.254 | 501.5 | 16.2 |
UL2501 | 12AWG*9C | 65 | 0.254 | 565 | 17.8 |
UL2501 | 12AWG*10C | 65 | 0.254 | 632.8 | 19 |
UL2501 | 12AWG*11C | 65 | 0.254 | 689.5 | 19.7 |
UL2501 | 12AWG*12C | 65 | 0.254 | 722.3 | 19.7 |
UL2501 | 12AWG*13C | 65 | 0.254 | 729.6 | 20.7 |
UL2501 | 12AWG*14C | 65 | 0.254 | 774.2 | 20.7 |
UL2501 | 12AWG*15C | 65 | 0.254 | 881.2 | 22.9 |
UL2501 | 12AWG*16C | 65 | 0.254 | 925.8 | 22.9 |
UL2501 | 12AWG*17C | 65 | 0.254 | 982.6 | 24.1 |
UL2501 | 12AWG*18C | 65 | 0.254 | 1027.2 | 24.1 |
UL2501 | 12AWG*19C | 65 | 0.254 | 1071.9 | 24.1 |
UL2501 | 12AWG*20C | 65 | 0.254 | 1122.8 | 24.7 |
UL2501 | 12AWG*21C | 65 | 0.254 | 1173.3 | 25.3 |
UL2501 | 12AWG*22C | 65 | 0.254 | 1294.3 | 27.8 |
UL2501 | 12AWG*23C | 65 | 0.254 | 1353.7 | 29 |
UL2501 | 12AWG*24C | 65 | 0.254 | 1398.3 | 29 |
UL2501 | 12AWG*25C | 65 | 0.254 | 1450.5 | 29.6 |
UL2501 | 12AWG*26C | 65 | 0.254 | 1495.2 | 29.6 |
UL2501 | 12AWG*27C | 65 | 0.254 | 1539.8 | 29.6 |
UL2501 | 12AWG*28C | 65 | 0.254 | 1597.2 | 30.7 |
UL2501 | 12AWG*29C | 65 | 0.254 | 1641.9 | 30.7 |
UL2501 | 12AWG*30C | 65 | 0.254 | 1686.5 | 30.7 |
UL2501 | 12AWG*31C | 65 | 0.254 | 1745.2 | 31.8 |
UL2501 | 12AWG*32C | 65 | 0.254 | 1789.9 | 31.8 |
UL2501 | 12AWG*33C | 65 | 0.254 | 1834.5 | 31.8 |
UL2501 | 12AWG*34C | 65 | 0.254 | 1893.9 | 33 |
UL2501 | 12AWG*35C | 65 | 0.254 | 1938.6 | 33 |
UL2501 | 12AWG*36C | 65 | 0.254 | 1983.2 | 33 |
UL2501 | 12AWG*37C | 65 | 0.254 | 2027.8 | 33 |
UL2501 | 11AWG*2C | 82 | 0.254 | 227.6 | 11.6 |
UL2501 | 11AWG*3C | 82 | 0.254 | 277.7 | 12.3 |
UL2501 | 11AWG*4C | 82 | 0.254 | 339.2 | 13.4 |
UL2501 | 11AWG*5C | 82 | 0.254 | 403.4 | 14.7 |
UL2501 | 11AWG*6C | 82 | 0.254 | 469 | 15.9 |
UL2501 | 11AWG*7C | 82 | 0.254 | 522.9 | 15.9 |
UL2501 | 11AWG*8C | 82 | 0.254 | 588.1 | 17.2 |
UL2501 | 11AWG*9C | 82 | 0.254 | 662.9 | 19 |
UL2501 | 11AWG*10C | 82 | 0.254 | 742.8 | 20.2 |
UL2501 | 11AWG*11C | 82 | 0.254 | 861.5 | 21.9 |
UL2501 | 11AWG*12C | 82 | 0.254 | 901.8 | 21.9 |
UL2501 | 11AWG*13C | 82 | 0.254 | 914.1 | 23 |
UL2501 | 11AWG*14C | 82 | 0.254 | 968 | 23 |
UL2501 | 11AWG*15C | 82 | 0.254 | 1034.4 | 24.3 |
UL2501 | 11AWG*16C | 82 | 0.254 | 1088.3 | 24.3 |
UL2501 | 11AWG*17C | 82 | 0.254 | 1155.3 | 25.6 |
UL2501 | 11AWG*18C | 82 | 0.254 | 1209.2 | 25.6 |
UL2501 | 11AWG*19C | 82 | 0.254 | 1263.1 | 25.6 |
UL2501 | 11AWG*20C | 82 | 0.254 | 1382.4 | 27.2 |
UL2501 | 11AWG*21C | 82 | 0.254 | 1444 | 27.8 |
UL2501 | 11AWG*22C | 82 | 0.254 | 1519.1 | 29.5 |
UL2501 | 11AWG*23C | 82 | 0.254 | 1588.9 | 30.8 |
UL2501 | 11AWG*24C | 82 | 0.254 | 1642.8 | 30.8 |
UL2501 | 11AWG*25C | 82 | 0.254 | 1704.8 | 31.5 |
UL2501 | 11AWG*26C | 82 | 0.254 | 1758.7 | 31.5 |
UL2501 | 11AWG*27C | 82 | 0.254 | 1812.6 | 31.5 |
UL2501 | 11AWG*28C | 82 | 0.254 | 1880.3 | 32.6 |
UL2501 | 11AWG*29C | 82 | 0.254 | 1934.2 | 32.6 |
UL2501 | 11AWG*30C | 82 | 0.254 | 1988.1 | 32.6 |
UL2501 | 11AWG*31C | 82 | 0.254 | 2057.1 | 33.8 |
UL2501 | 11AWG*32C | 82 | 0.254 | 2111 | 33.8 |
UL2501 | 11AWG*33C | 82 | 0.254 | 2164.9 | 33.8 |
UL2501 | 11AWG*34C | 82 | 0.254 | 2284.3 | 35.7 |
UL2501 | 11AWG*35C | 82 | 0.254 | 2338.2 | 35.7 |
UL2501 | 11AWG*36C | 82 | 0.254 | 2392.1 | 35.7 |
UL2501 | 11AWG*37C | 82 | 0.254 | 2446 | 35.7 |
UL2501 | 10AWG*2C | 104 | 0.254 | 271.2 | 12.6 |
UL2501 | 10AWG*3C | 104 | 0.254 | 332.4 | 13.4 |
UL2501 | 10AWG*4C | 104 | 0.254 | 407.5 | 14.6 |
UL2501 | 10AWG*5C | 104 | 0.254 | 485.8 | 16 |
UL2501 | 10AWG*6C | 104 | 0.254 | 565.7 | 17.4 |
UL2501 | 10AWG*7C | 104 | 0.254 | 632.3 | 17.4 |
UL2501 | 10AWG*8C | 104 | 0.254 | 711.9 | 18.9 |
UL2501 | 10AWG*9C | 104 | 0.254 | 802.8 | 20.8 |
UL2501 | 10AWG*10C | 104 | 0.254 | 955 | 23.3 |
UL2501 | 10AWG*11C | 104 | 0.254 | 1039.8 | 24 |
UL2501 | 10AWG*12C | 104 | 0.254 | 1089.4 | 24 |
UL2501 | 10AWG*13C | 104 | 0.254 | 1102.3 | 25.2 |
UL2501 | 10AWG*14C | 104 | 0.254 | 1168.9 | 25.2 |
UL2501 | 10AWG*15C | 104 | 0.254 | 1309 | 27.6 |
UL2501 | 10AWG*16C | 104 | 0.254 | 1375.7 | 27.6 |
UL2501 | 10AWG*17C | 104 | 0.254 | 1460.1 | 29 |
UL2501 | 10AWG*18C | 104 | 0.254 | 1526.7 | 29 |
UL2501 | 10AWG*19C | 104 | 0.254 | 1593.4 | 29 |
UL2501 | 10AWG*20C | 104 | 0.254 | 1669.1 | 29.7 |
UL2501 | 10AWG*21C | 104 | 0.254 | 1744.4 | 30.4 |
UL2501 | 10AWG*22C | 104 | 0.254 | 1834.7 | 32.4 |
UL2501 | 10AWG*23C | 104 | 0.254 | 1919.1 | 33.8 |
UL2501 | 10AWG*24C | 104 | 0.254 | 1985.7 | 33.8 |
UL2501 | 10AWG*25C | 104 | 0.254 | 2061.5 | 34.5 |
UL2501 | 10AWG*26C | 104 | 0.254 | 2128.1 | 34.5 |
UL2501 | 10AWG*27C | 104 | 0.254 | 2194.8 | 34.5 |
UL2501 | 10AWG*28C | 104 | 0.254 | 2327.4 | 36.4 |
UL2501 | 10AWG*29C | 104 | 0.254 | 2394 | 36.4 |
UL2501 | 10AWG*30C | 104 | 0.254 | 2460.7 | 36.4 |
UL2501 | 10AWG*31C | 104 | 0.254 | 2546.1 | 37.8 |
UL2501 | 10AWG*32C | 104 | 0.254 | 2612.8 | 37.8 |
UL2501 | 10AWG*33C | 104 | 0.254 | 2679.4 | 37.8 |
UL2501 | 9AWG*2C | 94 | 0.3 | 321.1 | 13.8 |
UL2501 | 9AWG*3C | 94 | 0.3 | 395 | 14.7 |
UL2501 | 9AWG*4C | 94 | 0.3 | 485.4 | 16 |
UL2501 | 9AWG*5C | 94 | 0.3 | 579.6 | 17.6 |
UL2501 | 9AWG*6C | 94 | 0.3 | 675.7 | 19.1 |
UL2501 | 9AWG*7C | 94 | 0.3 | 756.9 | 19.1 |
UL2501 | 9AWG*8C | 94 | 0.3 | 852.6 | 20.7 |
UL2501 | 9AWG*9C | 94 | 0.3 | 1017.5 | 23.9 |
UL2501 | 9AWG*10C | 94 | 0.3 | 1139.3 | 25.5 |
UL2501 | 9AWG*11C | 94 | 0.3 | 1300.5 | 27.2 |
UL2501 | 9AWG*12C | 94 | 0.3 | 1360.9 | 27.2 |
UL2501 | 9AWG*13C | 94 | 0.3 | 1377.6 | 28.6 |
UL2501 | 9AWG*14C | 94 | 0.3 | 1458.8 | 28.6 |
UL2501 | 9AWG*15C | 94 | 0.3 | 1558.7 | 30.1 |
UL2501 | 9AWG*16C | 94 | 0.3 | 1639.9 | 30.1 |
UL2501 | 9AWG*17C | 94 | 0.3 | 1740.7 | 31.7 |
UL2501 | 9AWG*18C | 94 | 0.3 | 1821.9 | 31.7 |
UL2501 | 9AWG*19C | 94 | 0.3 | 1903.1 | 31.7 |
UL2501 | 9AWG*20C | 94 | 0.3 | 1994.3 | 32.5 |
UL2501 | 9AWG*21C | 94 | 0.3 | 2085 | 33.3 |
UL2501 | 9AWG*22C | 94 | 0.3 | 2242.4 | 36 |
UL2501 | 9AWG*23C | 94 | 0.3 | 2345.4 | 37.6 |
UL2501 | 9AWG*24C | 94 | 0.3 | 2426.6 | 37.6 |
UL2501 | 9AWG*25C | 94 | 0.3 | 2519 | 38.4 |
UL2501 | 9AWG*26C | 94 | 0.3 | 2600.2 | 38.4 |
UL2501 | 9AWG*27C | 94 | 0.3 | 2681.4 | 38.4 |
UL2501 | 8AWG*2C | 118 | 0.3 | 430.2 | 16.2 |
UL2501 | 8AWG*3C | 118 | 0.3 | 527.8 | 17.2 |
UL2501 | 8AWG*4C | 118 | 0.3 | 649 | 18.9 |
UL2501 | 8AWG*5C | 118 | 0.3 | 775.7 | 20.8 |
UL2501 | 8AWG*6C | 118 | 0.3 | 960.5 | 23.8 |
UL2501 | 8AWG*7C | 118 | 0.3 | 1070.7 | 23.8 |
UL2501 | 8AWG*8C | 118 | 0.3 | 1204.1 | 25.7 |
UL2501 | 8AWG*9C | 118 | 0.3 | 1421.4 | 29.3 |
UL2501 | 8AWG*10C | 118 | 0.3 | 1592.5 | 31.2 |
UL2501 | 8AWG*11C | 118 | 0.3 | 1734.6 | 32.2 |
UL2501 | 8AWG*12C | 118 | 0.3 | 1813.6 | 32.2 |
UL2501 | 8AWG*13C | 118 | 0.3 | 1820.6 | 33.9 |
UL2501 | 8AWG*14C | 118 | 0.3 | 1978.8 | 34.5 |
UL2501 | 8AWG*15C | 118 | 0.3 | 2114.5 | 36.4 |
UL2501 | 8AWG*16C | 118 | 0.3 | 2224.8 | 36.4 |
UL2501 | 8AWG*17C | 118 | 0.3 | 2361.8 | 38.3 |
UL2501 | 8AWG*18C | 118 | 0.3 | 2472 | 38.3 |
UL2501 | 8AWG*19C | 118 | 0.3 | 2582.3 | 38.3 |
UL2501 | 7AWG*2C | 147 | 0.3 | 497.7 | 17.2 |
UL2501 | 7AWG*3C | 147 | 0.3 | 614.9 | 18.3 |
UL2501 | 7AWG*4C | 147 | 0.3 | 759 | 20.1 |
UL2501 | 7AWG*5C | 147 | 0.3 | 963.4 | 23.2 |
UL2501 | 7AWG*6C | 147 | 0.3 | 1121.7 | 25.3 |
UL2501 | 7AWG*7C | 147 | 0.3 | 1254.1 | 25.3 |
UL2501 | 7AWG*8C | 147 | 0.3 | 1472.9 | 28.3 |
UL2501 | 7AWG*9C | 147 | 0.3 | 1660.1 | 31.1 |
UL2501 | 7AWG*10C | 147 | 0.3 | 1861.2 | 33.2 |
UL2501 | 7AWG*11C | 147 | 0.3 | 2029.6 | 34.3 |
UL2501 | 7AWG*12C | 147 | 0.3 | 2125.8 | 34.3 |
UL2501 | 7AWG*13C | 147 | 0.3 | 2187.2 | 36.7 |
UL2501 | 7AWG*14C | 147 | 0.3 | 2319.6 | 36.7 |
UL2501 | 7AWG*15C | 147 | 0.3 | 2479.5 | 38.7 |
UL2501 | 7AWG*16C | 147 | 0.3 | 2611.9 | 38.7 |
UL2501 | 6AWG*2C | 189 | 0.3 | 660.7 | 19.8 |
UL2501 | 6AWG*3C | 189 | 0.3 | 867.5 | 22.2 |
UL2501 | 6AWG*4C | 189 | 0.3 | 1065.2 | 24.3 |
UL2501 | 6AWG*5C | 189 | 0.3 | 1332 | 27.7 |
UL2501 | 6AWG*6C | 189 | 0.3 | 1548.8 | 30.2 |
UL2501 | 6AWG*7C | 189 | 0.3 | 1727.8 | 30.2 |
UL2501 | 6AWG*8C | 189 | 0.3 | 1943.7 | 32.7 |
UL2501 | 6AWG*9C | 189 | 0.3 | 2244.5 | 36.7 |
UL2501 | 5AWG*2C | 238 | 0.3 | 828.5 | 22.3 |
UL2501 | 5AWG*3C | 238 | 0.3 | 1020.3 | 23.7 |
UL2501 | 5AWG*4C | 238 | 0.3 | 1316 | 27 |
UL2501 | 5AWG*5C | 238 | 0.3 | 1569.7 | 29.6 |
UL2501 | 5AWG*6C | 238 | 0.3 | 1828.8 | 32.3 |
UL2501 | 5AWG*7C | 238 | 0.3 | 2092 | 32.9 |
UL2501 | 5AWG*8C | 238 | 0.3 | 2353.7 | 35.6 |
UL2501 | 4AWG*2C | 299 | 0.3 | 973.4 | 24.1 |
UL2501 | 4AWG*3C | 299 | 0.3 | 1205 | 25.6 |
UL2501 | 4AWG*4C | 299 | 0.3 | 1552.7 | 29.1 |
UL2501 | 4AWG*5C | 299 | 0.3 | 1855.9 | 31.9 |
UL2501 | 4AWG*6C | 299 | 0.3 | 2214.6 | 35.5 |
UL2501 | 4AWG*7C | 299 | 0.3 | 2478 | 35.5 |
UL2501 | 4AWG*8C | 299 | 0.3 | 2790.2 | 38.5 |
UL2501 | 3AWG*2C | 378 | 0.3 | 1142.2 | 25.7 |
UL2501 | 3AWG*3C | 378 | 0.3 | 1485.7 | 28.2 |
UL2501 | 3AWG*4C | 378 | 0.3 | 1835.3 | 31 |
UL2501 | 3AWG*5C | 378 | 0.3 | 2247.7 | 34.7 |
UL2501 | 3AWG*6C | 378 | 0.3 | 2623.6 | 37.9 |
UL2501 | 3AWG*7C | 378 | 0.3 | 2944.3 | 37.9 |
UL2501 | 2AWG*2C | 475 | 0.3 | 1427.9 | 28.6 |
UL2501 | 2AWG*3C | 475 | 0.3 | 1781.1 | 30.4 |
UL2501 | 2AWG*4C | 475 | 0.3 | 2256.2 | 34 |
