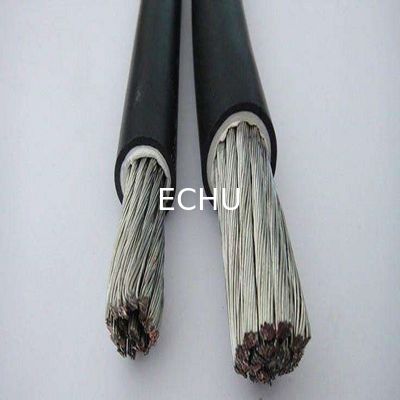

E312831 ECHU UL CABLE ROHS PVC UL1284 MTW 600V, 105℃ Bare Copper or Tinned Copper, 3AWG to 750MCM in Black Color

Name: E312831 ECHU UL CABLE ROHS PVC UL1284 MTW 600V, 105℃ Bare Copper or Tinned Copper, 3AWG to 750MCM in Black Color
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL1284
Price: 5.23 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL1284
MOQ:	100m
Price:	USD1.23 to USD9.389/M
Payment Terms:	T/T, Western Union
Supply Ability:	10000km per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL Number:

E312831

Conductor:

Bare Copper Or Tinned Copper

Color:

Optional

Voltage:

600V

Packaging Details:

in roll or splint reel

Product Description

E312831 ECHU UL CABLE

Product Description:

UL CERT.:E312831

UL1284: 1AWG, 2AWG, 3AWG,4AWG,5AWG,6AWG,7AWG,8AWG, 1/0AWG,2/0AWG, 3/0 AWG, 4/0AWG, 250Kcmil, 300kcmil,350kcmil, 400kcmil,450kcmil,500kcmil,500kcmil

Construction
Conductor :bare copper or tinned copper conductor Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

TYPE	Spec. AWG	Bare Copper		Tinned Copper		Insulation Thickness mm	Weight KG/KM
		Conductor No.	Conductor Dia.	Conductor No.	Conductor Dia.
UL1284	8	118	0.3	118	0.30	2.03	138.4
UL1284	7	147	0.3	147	0.30	2.03	161.8
UL1284	6	189	0.3	189	0.30	2.03	194.9
UL1284	5	238	0.3	238	0.30	2.03	232.8
UL1284	4	299	0.3	299	0.30	2.03	279.0
UL1284	3	378	0.3	378	0.30	2.03	337.9
UL1284	2	475	0.3	475	0.30	2.03	409.1
UL1284	1	600	0.3	600	0.30	2.03	499.6
UL1284	1/0	251	0.52	272	0.50	2.03	609.7
UL1284	2/0	317	0.52	343	0.50	2.03	749.9
UL1284	3/0	400	0.52	433	0.50	2.03	924.3
UL1284	4/0	505	0.52	546	0.50	2.03	1142.9
UL1284	250	598	0.52	647	0.50	2.41	1372.4
UL1284	300	716	0.52	774	0.50	2.41	1617.7
UL1284	350	833	0.52	901	0.50	2.41	1859.5
UL1284	400	955	0.52	1033	0.50	2.41	2110.4
UL1284	450	1073	0.52	1161	0.50	2.41	2352.2
UL1284	500	1191	0.52	1288	0.50	2.41	2593.1
UL1284	550	1313	0.52	1420	0.50	2.79	2894.1
