300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire

China 300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire supplier
300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire supplier 300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire supplier 300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire supplier 300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire supplier 300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire supplier 300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire supplier

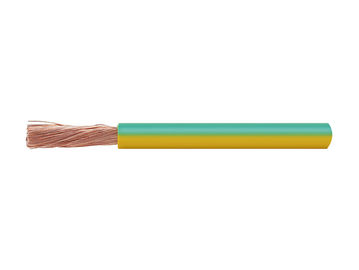

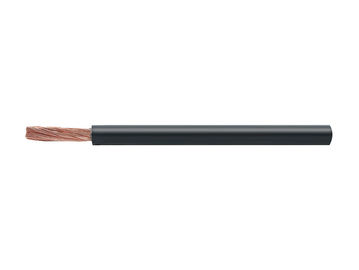

Large Image :  300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire

Product Details:

Place of Origin: Shanghai, China
Brand Name: ECHU
Certification: E312831
Model Number: UL1569

Payment & Shipping Terms:

Minimum Order Quantity: 300m
Price: USD0.073-3.576/m
Packaging Details: 305m/roll, 610m/roll
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000km/week
Detailed Product Description
Insulation: ROHS PVC Jacket: ROHS PVC
Color: Differnt Kind Of Colors Voltage: 300V

300V 105℃ UL wire UL1569 Electrical Cable



AVailable size is from 26AWG to 2AWG



Application: Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage



1. Rated Temperature: 105℃



2. Rated Voltage: 300V



3. Standard: UL758 & UL1581/CSA C22.2



4. Solid or stranded bare copper wire or tinned copper wire



5. PVC insualtion, Uniform insulation thickness to ensure, easy stripping and cutting



6.Environment testing pass ROHS, REACH



7. Passes UL VW-1 & CSA FT1 vertical flame test Ultra fine version are availabe

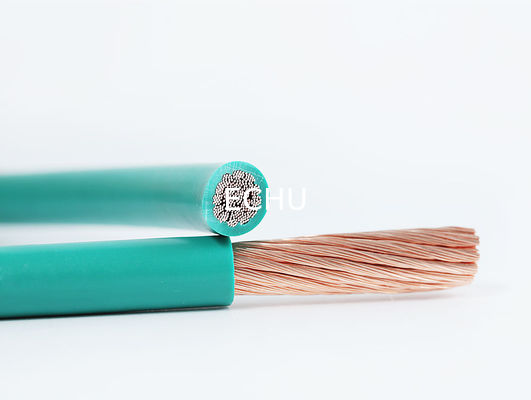

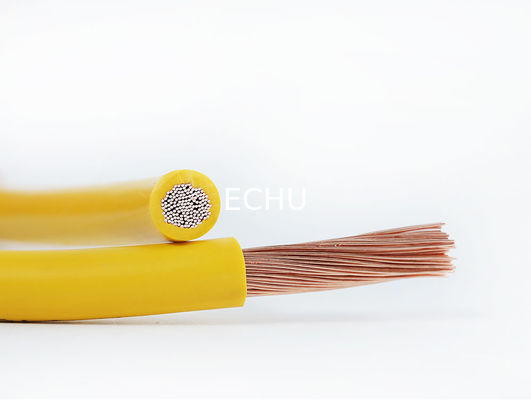

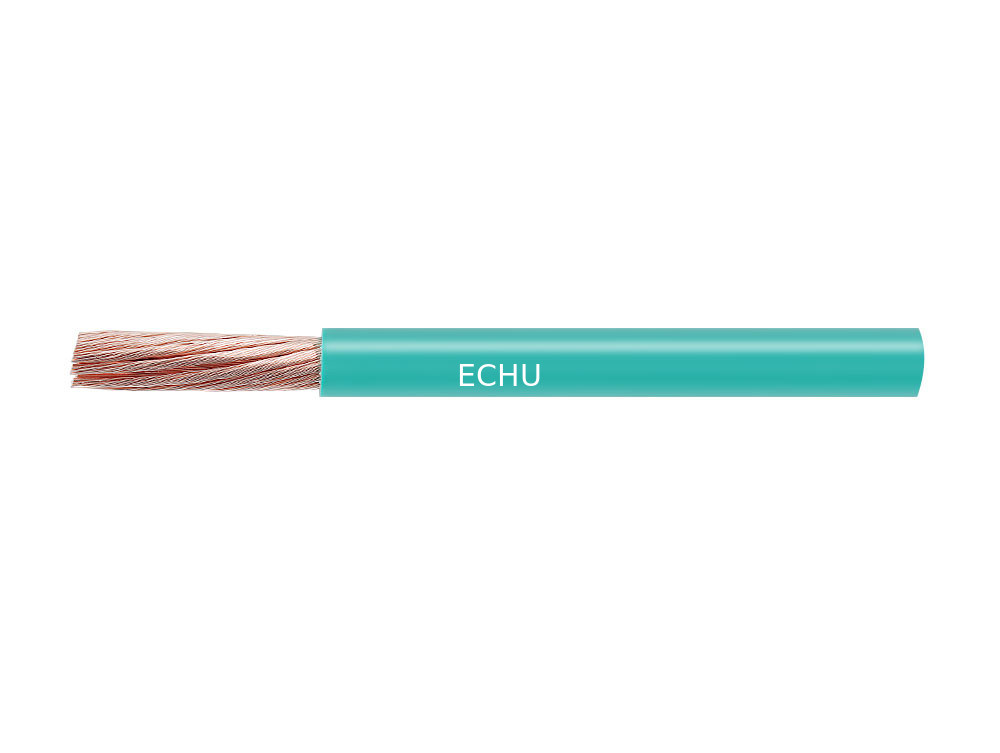

300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire300V 105℃ UL wire UL1569 Electrical Cable with UL certificated 26AWG with Green Color tinned copper wire


Type Size(AWG) Diameter(mm) Maximum resistance of conductor at 20℃
UL1569 26 1.3 140
UL1569 25 1.35 111
UL1569 24 1.4 87.6
UL1569 23 1.5 69.2
UL1569 22 1.55 55.4
UL1569 21 1.6 43.6
UL1569 20 1.7 34.6
UL1569 19 1.9 27.4
UL1569 18 2.0 21.8
UL1569 17 2.1 17.3
UL1569 16 2.3 13.7
UL1569 15 2.6 10.9
UL1569 14 2.95 8.62
UL1569 13 3.2 6.82
UL1569 12 3.45 5.43
UL1569 11 4.2 4.3
UL1569 10 4.55 3.409
UL1569 9 5.35 2.705
UL1569 8 5.8 2.144
UL1569 7 7.0 1.7
UL1569 6 7.7 1.348
UL1569 5 8.3 1.07
UL1569 4 9.1 0.8481
UL1569 3 10 0.6727
UL1569 2 10.9 0.5335
