UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color

Name: UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL1283
Price: 1.32 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL1283
MOQ:	100meters
Price:	USD0.315-USD3.299/M
Payment Terms:	T/T, Western Union
Supply Ability:	10000km per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Conductor:

Copper Or Tinned Copper

Voltage:

600V,

Color:

Different Colors

Temperature:

105 ℃

Insulation:

Double Insulation

Packaging Details:

in roll or splint reel

Product Description

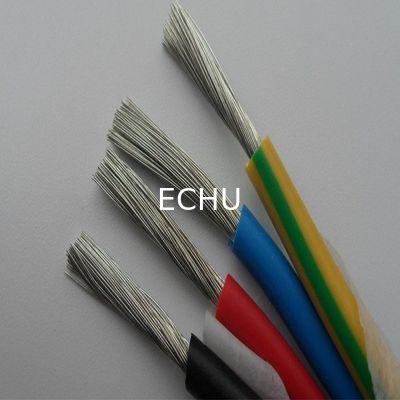

UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color

Production description:

UL CERT.:E312831

Single Conductor Single Core Flexible Wire UL1283 PVC Insulated 8 AWG,7AWG,6AWG,5AWG,4AWG,3AWG,2AWG

Construction
Conductor :bare copper or tinned copper conductor
Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 2.5kV/1min

UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color 0

UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color 1

UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color 2

UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color 3

UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color 4

TYPE	Spec. AWG	Bare Copper		Tinned Copper		Insulation Thickness mm	Weight KG/KM
		Conductor No.	Conductor Dia.	Conductor No.	Conductor Dia.
UL1283	8	118	0.3	118	0.30	1.52	119.5
UL1283	7	147	0.3	147	0.30	1.52	141.8
UL1283	6	189	0.3	189	0.30	1.52	173.4
UL1283	5	238	0.3	238	0.30	1.52	209.7
UL1283	4	299	0.3	299	0.30	1.52	254.3
UL1283	3	378	0.3	378	0.30	1.52	311.2
UL1283	2	475	0.3	475	0.30	1.52	380.2
