PVC hook-up wire as internal wiring of electrical appliance H07V-K

China PVC hook-up wire as internal wiring of electrical appliance H07V-K supplier
PVC hook-up wire as internal wiring of electrical appliance H07V-K supplier PVC hook-up wire as internal wiring of electrical appliance H07V-K supplier PVC hook-up wire as internal wiring of electrical appliance H07V-K supplier PVC hook-up wire as internal wiring of electrical appliance H07V-K supplier

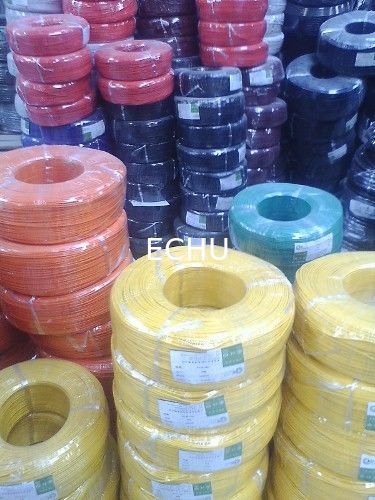

Large Image :  PVC hook-up wire as internal wiring of electrical appliance H07V-K

Product Details:

Place of Origin: CHINA
Brand Name: ECHU
Model Number: RV,BV,BVR,H07V-K/U/R

Payment & Shipping Terms:

Minimum Order Quantity: 100meters
Price: USD0.0152/m-USD3.51/M
Packaging Details: plywoode box
Delivery Time: 2 to 7days
Payment Terms: T/T, Western Union.
Supply Ability: 1000KM/week
Detailed Product Description
Conducotor: Pure Copper Or Tinned Copper Insulation: PVC
Jacket: PVC Voltage: 300/300V, 300/500V, 450/750V
Temperature: -30℃ To + 70℃

Single core electrical wire for house installation

Applications:
PVC hook-up wire as internal wiring of electrical appliances is used in movable appliances, communication equipments and electronic transmission equipment, such as electrical control box, distribution box, telephone exchange and other related situations. For the monolayer insulation construction, the cable can not be used in external equipments (not works as tray cables)

Properties:
High insulation, excellent properties, bright color

Structure:
Conductor: Bare, fine copper strands acc. To VDE0281.3
HD21.3, 60227.3, Idt. GBT3956
Insulation: PVC TL1 flmae resistance (acc to VED0482, part 265-2-1 resp. EN50265-2-1 and IEC60332-1)
Colors are optional.

Temperature:
Fixed installation: -5 degree to +70degree
Special Installation: -30 degree to +70 degree
Rated Voltage (V):
<0.5mm: 300/300V
0.5-1.5mm: 300/500V
>/=450/750V
Test voltage(V): 1500V 2000V 2500V

Type Size Weight KG/KM OD mm
Down limited   Up limited
H05V-U 0.5 9.7 2.0 2.2
H05V-U 0.75 12.6 2.2 2.4
H05V-R 0.75 13.0 2.3 2.5
H05V-U 1 15.3 2.3 2.5
H05V-R 1 16.1 2.5 2.7
H07V-U 1.5 21.9 2.8 3.0
H07V-R 1.5 22.5 3.0 3.2
H07V-U 2.5 34.0 3.4 3.6
H07V-U 4 49.3 3.9 4.1
H07V-U 6 69.5 4.4 4.6
H07V-R 10 117.6 6.1 6.3
H07V-R 16 174.6 7.1 7.4
H07V-R 25 276.0 8.8 9.1
H07V-R 35 367.9 10.0 10.5
H07V-R 50 525.0 11.7 12.2
H07V-R 70 686.3 13.5 14.0
H07V-R 95 964.4 15.8 16.3
H07V-R 120 1201 17.4 17.9
H07V-R 150 1478 19.4 19.9

H07V-R 2.5 35.3 3.7 3.9
H07V-R 4 51.3 4.3 4.5
H07V-R 6 70.9 4.9 5.1
H07V-R 10 121.2 6.4 6.6
H07V-R 16 175.9 7.8 8.0
H07V-R 25 269.0 9.7 9.9
H07V-R 35 369.9 11.1 11.5
H07V-R 50 523.8 13.3 13.7
H07V-R 70 716.5 15.2 15.7
H07V-R 95 992.3 16.3 17.1
H07V-R 120 1236.0 18.0 18.8
H07V-R 150 1546.5 20.1 20.9

H05V-K 0.5 9.9 2.1 2.3
H05V-K 0.75 13.6 2.3 2.5
H05V-K 1 15.9 2.5 2.7
H07V-K 1.5 22.9 3.0 3.2
H07V-K 2.5 35.3 3.7 3.9
H07V-K 4 52.0 4.3 4.5
H07V-K 6 72.3 5.2 5.4
H07V-K 10 118.5 6.6 6.8
H07V-K 16 179.2 7.9 8.1
H07V-K 25 276.7 9.8 10.2
H07V-K 35 375.1 11.1 11.5
H07V-K 50 532.2 13.3 13.8
H07V-K 70 729.9 15.3 16.3
H07V-K 95 984.8 17.7 18.7
H07V-K 120 2211.4 18.9 19.9
H07V-K 150 2760.0 20.8 21.8
H07V-K 185 3404.9 23.1 24.1
H07V-K 240 4417.5 26.0 27.0

PVC hook-up wire as internal wiring of electrical appliance H07V-K





PVC hook-up wire as internal wiring of electrical appliance H07V-K

Type Specification Conductor Structure Insulation (mm)
Down   Up
BVR 2.5 20 0.4 3.7 ~ 4.0
BVR 4 19 0.52 4.3 ~ 4.8
BVR 6 28 0.52 4.9 ~ 5.3
BVR 10 47 0.52 6.3 ~ 6.8
BVR 16 75 0.52 7.4 ~ 8.1
BVR 25 118 0.52 9.1 ~ 10.0
BVR 35 165 0.52 10.4 ~ 11.0
BVR 50 235 0.52 12.3 ~ 13.9
BVR 70 330 0.52 14.1 ~ 16.0

RV 0.5 33 0.14 2.1 ~ 2.3
RV 0.75 49 0.14 2.4 ~ 2.5
RV 1 35 0.19 2.5 ~ 2.7
RV 1.5 53 0.19 3.0 ~ 3.4
RV 2 70 0.19 3.5 ~ 3.7
RV 2.5 88 0.19 3.7 ~ 4.1
RV 4 81 0.25 4.3 ~ 4.8
RV 6 79 0.31 5.0 ~ 5.3
RV 10 80 0.4 6.0 ~ 6.8
RV 16 127 0.4 7.6 ~ 8.1
RV 25 199 0.4 9.4 ~ 10.2
RV 35 278 0.4 10.6 ~ 11.7
RV 50 396 0.4 12.7 ~ 13.9
RV 70 557 0.4 14.5 ~ 16.0
RV 95 756 0.4 16.8 ~ 18.2
RV 120 955 0.4 18.5 ~ 20.2
RV 150 706 0.52 20.8 ~ 22.5
RV 185 871 0.52 23.1 ~ 24.9
RV 240 1130 0.52 26.0 ~ 28.4

AVR 0.12 8 0.14 1.3 ~ 1.3
AVR 0.2 13 0.14 1.4 ~ 1.5
AVR 0.3 20 0.14 1.7 ~ 1.8
AVR 0.4 26 0.14 1.9 ~ 2.0
