PVC hook-up wire as internal wiring of electrical appliance RV/BV/BVR

Brand Name:	ECHU
Model Number:	RV,BV,BVR
MOQ:	300M
Price:	USD0.013-USD0.148/m
Payment Terms:	T/T, Western Union
Supply Ability:	1000KM/week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Conducotor:

Pure Copper Or Tinned Copper

Insulation:

PVC

Jacket:

PVC

Voltage:

300/300V, 300/500V, 450/750V

Temperature:

-30℃ To + 70℃

Packaging Details:

plywoode box

Product Description

Single core electrical wire for house installation

Applications:
PVC hook-up wire as internal wiring of electrical appliances is used in movable appliances, communication equipments and electronic transmission equipment, such as electrical control box, distribution box, telephone exchange and other related situations. For the monolayer insulation construction, the cable can not be used in external equipments (not works as tray cables)

Properties:
High insulation, excellent properties, bright color

Structure:
Conductor: Bare, fine copper strands acc. To VDE0281.3
HD21.3, 60227.3, Idt. GBT3956
Insulation: PVC TL1 flmae resistance (acc to VED0482, part 265-2-1 resp. EN50265-2-1 and IEC60332-1)
Colors are optional.

Temperature:
Fixed installation: -5 degree to +70degree
Special Installation: -30 degree to +70 degree
Rated Voltage (V):
<0.5mm: 300/300V
0.5-1.5mm: 300/500V
>/=450/750V
Test voltage(V): 1500V 2000V 2500V

Type	Size	Weight KG/KM	OD mm
Type	Size	Weight KG/KM	Down limited		Up limited
H05V-U	0.5	9.7	2.0	～	2.2
H05V-U	0.75	12.6	2.2	～	2.4
H05V-R	0.75	13.0	2.3	～	2.5
H05V-U	1	15.3	2.3	～	2.5
H05V-R	1	16.1	2.5	～	2.7
H07V-U	1.5	21.9	2.8	～	3.0
H07V-R	1.5	22.5	3.0	～	3.2
H07V-U	2.5	34.0	3.4	～	3.6
H07V-U	4	49.3	3.9	～	4.1
H07V-U	6	69.5	4.4	～	4.6
H07V-R	10	117.6	6.1	～	6.3
H07V-R	16	174.6	7.1	～	7.4
H07V-R	25	276.0	8.8	～	9.1
H07V-R	35	367.9	10.0	～	10.5
H07V-R	50	525.0	11.7	～	12.2
H07V-R	70	686.3	13.5	～	14.0
H07V-R	95	964.4	15.8	～	16.3
H07V-R	120	1201	17.4	～	17.9
H07V-R	150	1478	19.4	～	19.9

H07V-R	2.5	35.3	3.7	～	3.9
H07V-R	4	51.3	4.3	～	4.5
H07V-R	6	70.9	4.9	～	5.1
H07V-R	10	121.2	6.4	～	6.6
H07V-R	16	175.9	7.8	～	8.0
H07V-R	25	269.0	9.7	～	9.9
H07V-R	35	369.9	11.1	～	11.5
H07V-R	50	523.8	13.3	～	13.7
H07V-R	70	716.5	15.2	～	15.7
H07V-R	95	992.3	16.3	～	17.1
H07V-R	120	1236.0	18.0	～	18.8
H07V-R	150	1546.5	20.1	～	20.9

H05V-K	0.5	9.9	2.1	～	2.3
H05V-K	0.75	13.6	2.3	～	2.5
H05V-K	1	15.9	2.5	～	2.7
H07V-K	1.5	22.9	3.0	～	3.2
H07V-K	2.5	35.3	3.7	～	3.9
H07V-K	4	52.0	4.3	～	4.5
H07V-K	6	72.3	5.2	～	5.4
H07V-K	10	118.5	6.6	～	6.8
H07V-K	16	179.2	7.9	～	8.1
H07V-K	25	276.7	9.8	～	10.2
H07V-K	35	375.1	11.1	～	11.5
H07V-K	50	532.2	13.3	～	13.8
H07V-K	70	729.9	15.3	～	16.3
H07V-K	95	984.8	17.7	～	18.7
H07V-K	120	2211.4	18.9	～	19.9
H07V-K	150	2760.0	20.8	～	21.8
H07V-K	185	3404.9	23.1	～	24.1
H07V-K	240	4417.5	26.0	～	27.0

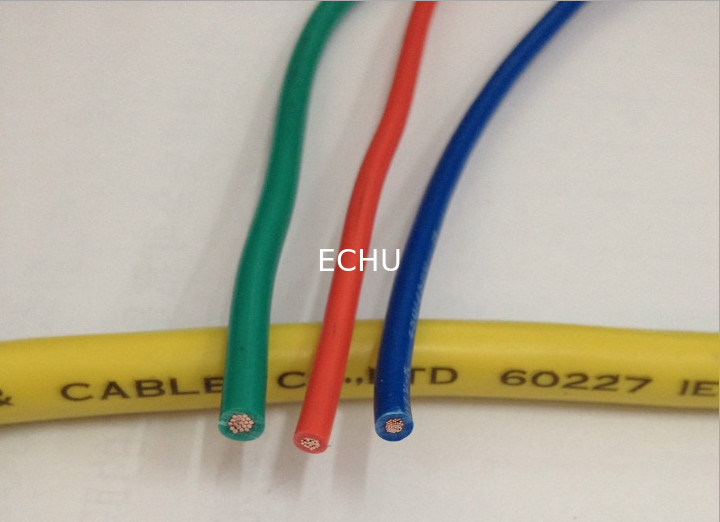

PVC hook-up wire as internal wiring of electrical appliance RV/BV/BVR 0

PVC hook-up wire as internal wiring of electrical appliance RV/BV/BVR 1

Type	Specification	Conductor Structure		Insulation (mm)
Type	Specification	Conductor Structure		Down		Up
BVR	2.5	20	0.4	3.7	~	4.0
BVR	4	19	0.52	4.3	~	4.8
BVR	6	28	0.52	4.9	~	5.3
BVR	10	47	0.52	6.3	~	6.8
BVR	16	75	0.52	7.4	~	8.1
BVR	25	118	0.52	9.1	~	10.0
BVR	35	165	0.52	10.4	~	11.0
BVR	50	235	0.52	12.3	~	13.9
BVR	70	330	0.52	14.1	~	16.0

RV	0.5	33	0.14	2.1	~	2.3
RV	0.75	49	0.14	2.4	~	2.5
RV	1	35	0.19	2.5	~	2.7
RV	1.5	53	0.19	3.0	~	3.4
RV	2	70	0.19	3.5	~	3.7
RV	2.5	88	0.19	3.7	~	4.1
RV	4	81	0.25	4.3	~	4.8
RV	6	79	0.31	5.0	~	5.3
RV	10	80	0.4	6.0	~	6.8
RV	16	127	0.4	7.6	~	8.1
RV	25	199	0.4	9.4	~	10.2
RV	35	278	0.4	10.6	~	11.7
RV	50	396	0.4	12.7	~	13.9
RV	70	557	0.4	14.5	~	16.0
RV	95	756	0.4	16.8	~	18.2
RV	120	955	0.4	18.5	~	20.2
RV	150	706	0.52	20.8	~	22.5
RV	185	871	0.52	23.1	~	24.9
RV	240	1130	0.52	26.0	~	28.4

AVR	0.12	8	0.14	1.3	~	1.3
AVR	0.2	13	0.14	1.4	~	1.5
AVR	0.3	20	0.14	1.7	~	1.8
AVR	0.4	26	0.14	1.9	~	2.0
