ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate

China ROHS PVC Electrical  Earth Cable  UL1007 300V with UL certificate supplier
ROHS PVC Electrical  Earth Cable  UL1007 300V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1007 300V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1007 300V with UL certificate supplier

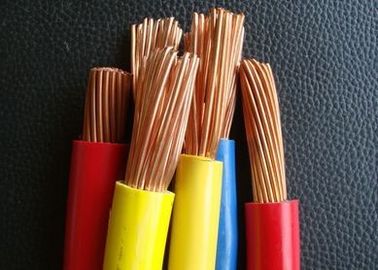

Large Image :  ROHS PVC Electrical Earth Cable UL1007 300V with UL certificate

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: UL
Model Number: UL1007

Payment & Shipping Terms:

Minimum Order Quantity: 100-300M
Price: USD0.012-USD0.357/m
Packaging Details: 100M/roll
Delivery Time: within 10days after receiving payment
Payment Terms: T/T, Western Union.
Supply Ability: 10000km/week
Detailed Product Description
Related Temperature: 80℃ Rated Voltage: 300V
Jacket: ROHS PVC Insulation: ROHS PVC
Color: Red/white/black/blue/yellow.... Flame Test: VW-1
Conductor: Copper Wire Or Tinned Copper Wire

ROHS PVC UL1007 Electrical Earth Cable 300V

UL Approval
Description:
Related temperature: 80℃
Rated voltage: 300V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05
Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test
Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL3386

Type SizeAWGConductorWeight KG/KMInslulation Thickness mmOD mm
Down limited Up Limtied
UL1007bare copper wire2670.163.550.401.281.48
UL1007bare copper wire24110.164.580.401.411.61
UL1007bare copper wire22170.166.030.401.561.76
UL1007bare copper wire20260.168.090.401.741.94
UL1007bare copper wire18410.1611.380.401.982.18
UL1007bare copper wire16260.25417.180.402.362.56

Type SizeAWGConductorWeight KG/KMInslulation Thickness mmOD mm
Down limited Up Limtied
UL1007tinned copper wire2670.163.550.41.281.48
UL1007tinned copper wire24110.164.580.41.411.61
UL1007tinned copper wire22170.166.030.41.561.76
UL1007tinned copper wire20260.168.090.41.741.94
UL1007tinned copper wire18410.1611.380.41.982.18
UL1007tinned copper wire16270.2517.180.42.362.56

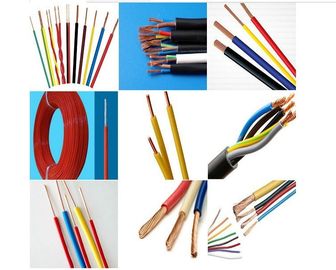

ROHS PVC Electrical  Earth Cable  UL1007 300V with UL certificate

TypeSize (AWG)Bare CopperTinned CopperInsulation Thickness (mm)Weight KG/KMInsulation O.D. mmCross section (mm 2)
ConductorConductorDown Up
UL10152670.1670.160.767.12.0~2.20.14
UL101524110.16110.160.768.32.1~2.30.22
UL101522170.16170.160.7610.02.3~2.50.34
UL101520260.16260.160.7612.42.5~2.70.52
UL101518410.16410.160.7616.22.7~2.90.82
UL101517510.16510.160.7619.02.8~3.01.03
UL101516260.254270.250.7622.63.0~3.21.32
UL101515330.254340.250.7625.93.2~3.41.67
UL101514410.254430.250.7631.53.4~3.62.0775
UL101513520.254540.250.7636.53.6~3.82.63
UL101512650.254670.250.7645.53.9~4.13.29
UL101511820.254850.250.7652.64.3~4.54.16
UL1015101040.2541070.250.7667.14.8~5.05.27
UL10159940.30940.300.7689.05.3~5.56.64
UL101581180.301180.301.15107.56.5~6.78.34
UL101571470.301470.301.15140.37.0~7.210.39
UL101561890.301890.301.52172.68.4~8.613.36
UL101552380.302380.301.52207.69.1~9.316.82
UL101542990.302990.301.52267.99.8~10.021.14
UL101533780.303780.301.52325.610.7~11.126.72
UL101524750.304750.301.52382.511.7~12.133.58
UL101516000.306000.302.03495.913.8~14.242.41
UL10151/02510.522720.502.03615.314.5~14.953.31
UL10152/03170.523430.502.03750.015.8~16.467.32
UL10153/04000.524330.502.03923.017.2~17.884.95
UL10154/05050.525460.502.031134.318.9~19.5107.25
UL10152505980.526470.502.411366.520.9~21.9127.00
UL10153007160.527740.502.411609.322.5~23.5152.06
UL10153508330.529010.502.411852.723.9~24.9176.91
UL10154009550.5210330.502.412104.325.3~26.3202.82
UL101545010730.5211610.502.412344.726.5~27.5227.88
UL101550011910.5212880.502.412584.827.7~28.7252.94
UL101555013130.5214200.502.792898.629.6~30.6278.84
