ROHS PVC Electrical Earth Cable UL1015 16AWG 600V with UL certificate

China ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier
ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate supplier

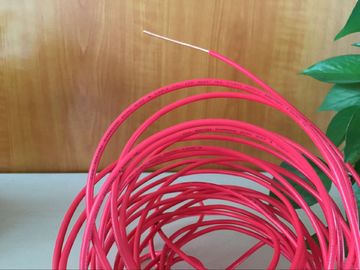

Large Image :  ROHS PVC Electrical Earth Cable UL1015 16AWG 600V with UL certificate

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: UL
Model Number: UL1005

Payment & Shipping Terms:

Minimum Order Quantity: 300Meters
Price: USD0.053-USD0.293/M
Packaging Details: 100M/roll
Delivery Time: within 10days after receiving payment
Payment Terms: T/T, Western Union.., L/C
Supply Ability: 10000km/week
Detailed Product Description
Related Temperature: 105C Rated Voltage: 600V
Jacket: ROHS PVC Insulation: ROHS PVC
Color: Red/white/black/blue/yellow....

ROHS PVC UL1015 Electrical Earth Cable 16AWG 600V

UL Approval

Description:
Related temperature: 105 degree
Rated voltage: 600V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05
Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test

Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL3386

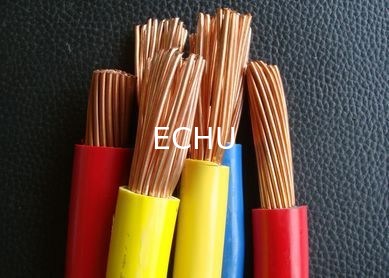

ROHS PVC Electrical  Earth Cable  UL1015 16AWG 600V with UL certificate

Type Size (AWG) Bare Copper Tinned Copper Insulation Thickness (mm) Weight KG/KM Insulation O.D. mm Cross section (mm 2)
Conductor Conductor Down   Up
UL1015 26 7 0.16 7 0.16 0.76 7.1 2.0 ~ 2.2 0.14
UL1015 24 11 0.16 11 0.16 0.76 8.3 2.1 ~ 2.3 0.22
UL1015 22 17 0.16 17 0.16 0.76 10.0 2.3 ~ 2.5 0.34
UL1015 20 26 0.16 26 0.16 0.76 12.4 2.5 ~ 2.7 0.52
UL1015 18 41 0.16 41 0.16 0.76 16.2 2.7 ~ 2.9 0.82
UL1015 17 51 0.16 51 0.16 0.76 19.0 2.8 ~ 3.0 1.03
UL1015 16 26 0.254 27 0.25 0.76 22.6 3.0 ~ 3.2 1.32
UL1015 15 33 0.254 34 0.25 0.76 25.9 3.2 ~ 3.4 1.67
UL1015 14 41 0.254 43 0.25 0.76 31.5 3.4 ~ 3.6 2.0775
UL1015 13 52 0.254 54 0.25 0.76 36.5 3.6 ~ 3.8 2.63
UL1015 12 65 0.254 67 0.25 0.76 45.5 3.9 ~ 4.1 3.29
UL1015 11 82 0.254 85 0.25 0.76 52.6 4.3 ~ 4.5 4.16
UL1015 10 104 0.254 107 0.25 0.76 67.1 4.8 ~ 5.0 5.27
UL1015 9 94 0.30 94 0.30 0.76 89.0 5.3 ~ 5.5 6.64
UL1015 8 118 0.30 118 0.30 1.15 107.5 6.5 ~ 6.7 8.34
UL1015 7 147 0.30 147 0.30 1.15 140.3 7.0 ~ 7.2 10.39
UL1015 6 189 0.30 189 0.30 1.52 172.6 8.4 ~ 8.6 13.36
UL1015 5 238 0.30 238 0.30 1.52 207.6 9.1 ~ 9.3 16.82
UL1015 4 299 0.30 299 0.30 1.52 267.9 9.8 ~ 10.0 21.14
UL1015 3 378 0.30 378 0.30 1.52 325.6 10.7 ~ 11.1 26.72
UL1015 2 475 0.30 475 0.30 1.52 382.5 11.7 ~ 12.1 33.58
UL1015 1 600 0.30 600 0.30 2.03 495.9 13.8 ~ 14.2 42.41
UL1015 1/0 251 0.52 272 0.50 2.03 615.3 14.5 ~ 14.9 53.31
UL1015 2/0 317 0.52 343 0.50 2.03 750.0 15.8 ~ 16.4 67.32
UL1015 3/0 400 0.52 433 0.50 2.03 923.0 17.2 ~ 17.8 84.95
UL1015 4/0 505 0.52 546 0.50 2.03 1134.3 18.9 ~ 19.5 107.25
UL1015 250 598 0.52 647 0.50 2.41 1366.5 20.9 ~ 21.9 127.00
UL1015 300 716 0.52 774 0.50 2.41 1609.3 22.5 ~ 23.5 152.06
UL1015 350 833 0.52 901 0.50 2.41 1852.7 23.9 ~ 24.9 176.91
UL1015 400 955 0.52 1033 0.50 2.41 2104.3 25.3 ~ 26.3 202.82
UL1015 450 1073 0.52 1161 0.50 2.41 2344.7 26.5 ~ 27.5 227.88
UL1015 500 1191 0.52 1288 0.50 2.41 2584.8 27.7 ~ 28.7 252.94
UL1015 550 1313 0.52 1420 0.50 2.79 2898.6 29.6 ~ 30.6 278.84
