Product Details:
Payment & Shipping Terms:
|
Insulation: | XLPE, | Jacket: | XLPE |
---|---|---|---|
Currect: | AC Cable | Voltage: | Low Or Middle Voltage |
Feature: | Super Heat-proof, Flame Retardant, Halogen-free, Weathering Resistance | Conductor: | Stranded Tinned Copper Wire |
Model: | PV1-F | Port: | Shanghai |
HS Code: | 854449 |

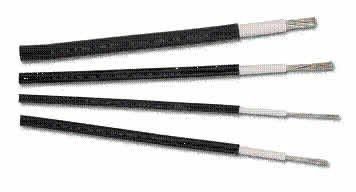

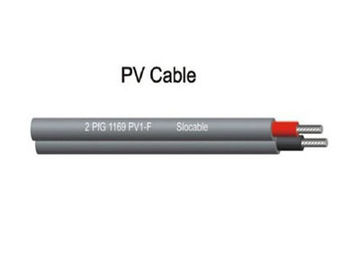

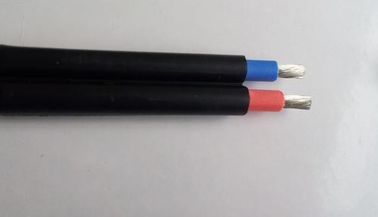

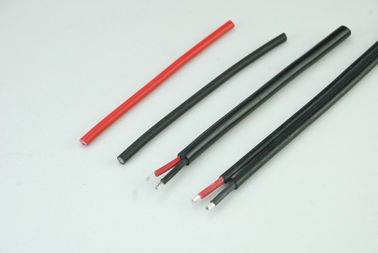

PVI-F (Solar Photovoltaic Cable)

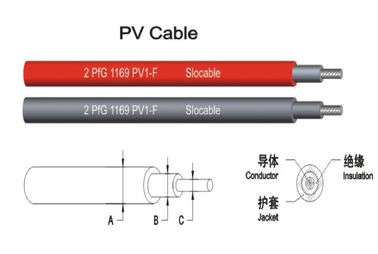

Cable Structure:
Conductor: Stranded Tinned Rated Copper acc. to IEC60228+EN60228, VDE0295, CLASS 5
Inner jacket: XLPE UL4703

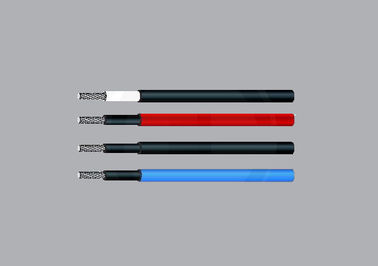

Jacket color: black/black, black/blue, red/red, blue/black ,black/red, red/black, blue/blue, others are optional
Out jacket: XLPE UL4703
Jacket color: black/black, black/blue, red/red, blue/black, black/red, red/black, blue/blue, others are optional
Properties:
Feature: super heat-proof, flame retardant, Halogen-free, Weathering resistance
Certificates: acc. to ROHS, TUV
Technical Data
Rated voltage: 600/1000V
Test voltage: 6500V
Minimumbending radius:
dia </=12mm 3XD
dia >/=12mm 4XD
Working temperature: Environmental Temp.: +90degree Cable highest Temp: +120degree Laying: -30 to +120 degree Fixed laying: -45 to +120 degree Short circuit: +250degree
Halogen free: No Hydrochloric acid acc. toEN50627-2-1, No fluorin acc. to EN60684-2
Flame retardant: flame retardant, self-extinguishing acc. to IEC60332-1-2 and EN60332-1-2
Typical Application:

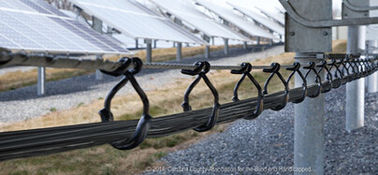

Cable's insulation material improved the flame retardant feature and temperature usage scope, especially suitable to use as connection cable of solar appartus system, it can be used in different weather condition, outdoor environment,, also wer or dry indoor environment.
Cable Structure: | Technical Data | ||
Conductor: Stranded Tinned Rated Copper acc. to IEC60228+EN60228, VDE0295, CLASS 5 | Rated voltage: 600/1000V | ||
Test voltage: 6500V | |||
Inner jacket: XLPE UL4703 | Minimum bending radius: dia </=12mm 3XD dia >/=12mm 4XD | ||
Jacket color: black/black, black/blue,red/red,blue/black,black/red,red/black,blue/blue, others are optional | Working temperature: Environmental Temp.: +90degree Cable highest Temp: +120degree Laying: -30 to +120 degree Fixed laying: -45 to +120 degree Short circuit: +250degree | ||
Out jacket: XLPE UL4703 | |||
Jacket color: black/black, black/blue,red/red,blue/black,black/red,red/black,blue/blue, others are optional | Halogen free: No Hydrochloric acid acc. toEN50627-2-1 No fluorin acc. to EN60684-2 Flame retardant: flame retardant, self-extinguishing acc. to IEC60332-1-2 and EN60332-1-2 | ||
Properties: | Typical application: | ||
Feature: super heat-proof, flame retardant | Cable's insulation material improved the flame retardant feature and temperature usage scope, especially suitable to use as connection cable of solar appartus system, it can be used in different weather condition, outdoor environment,, also wer or dry indoor environment. | ||
Halogen-free | |||
Weathering resistance | |||
Certificates: acc. to ROHS, TUV | |||
Part-No. | Section sqmm | Extermal Diameter mm | Weight kg/km |
PVI-F | 1.5 | 5.3 | 39 |
PVI-F | 2.5 | 5.7 | 50 |
PVI-F | 4 | 6.4 | 67 |
PVI-F | 6 | 7.1 | 95 |
PVI-F | 10 | 9.5 | 162 |
PVI-F | 16 | 10.9 | 234 |
PVI-F | 25 | 13.2 | 353 |
PVI-F | 35 | 14.7 | 463 |
