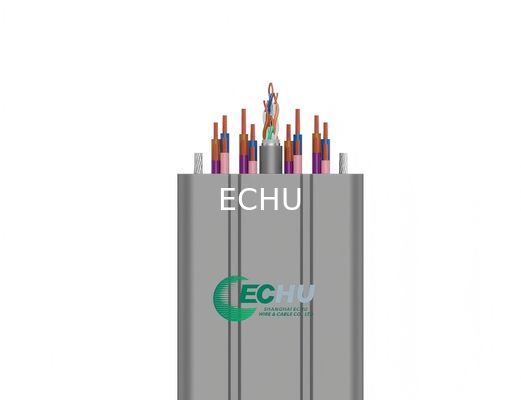

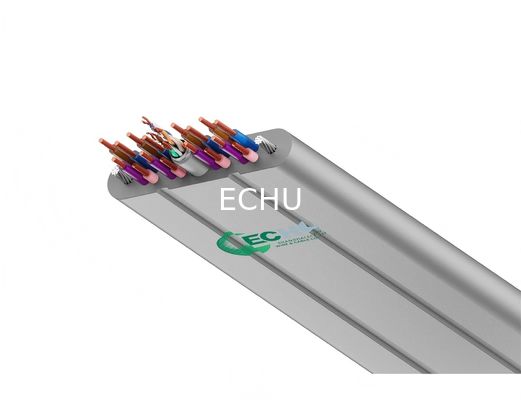

Flat Flexible Traveling Cable for Elevator with CE certificate TVVBP 42Cx0.75+2x2Px0.75 with Special PVC Jacket

Name: Flat Flexible Traveling Cable for Elevator with CE certificate TVVBP 42Cx0.75+2x2Px0.75 with Special PVC Jacket
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: TVVB, H05VVH6-F, TVVBG, TVVBP, TVVBPG
Price: 5.11 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	TVVB, H05VVH6-F, TVVBG, TVVBP, TVVBPG
MOQ:	100-300Meters
Price:	0.113-10.267USD/m
Payment Terms:	T/T, Western Union
Supply Ability:	10000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Orange

Voltage:

300/500V

Installation:

Flexible

Insulation:

PVC

Jacket:

Flexible PVC

Packaging Details:

plywoode reel

Product Description

Flat Travelling Cables, Flat Elevator Cables (TVVB, H05VVH6-F, TVVBG, TVVBP, TVVBPG)
Flat traveling cables
Flat elevator cables
H05VVH6-F
H07VVH6-F
Flat traveling cables application:
As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
Flat traveling cables Properties:
Outer sheath is extensively resistant to oil and cooling liquid.
Standards: GB5023.6, IEC60227-6, EN 50214

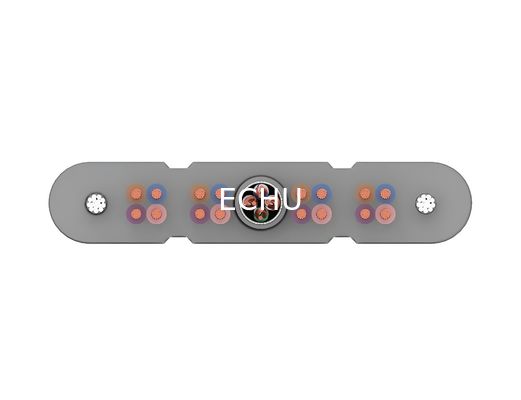

Structure:
Conductor: Fine strands of bare copper wire,
Acc. To VDE0295 CLASS5
Insulation: Special PVC
Colour: Yellow, white, orangeg with black number with white digital coding
Bearing: Steel rope
Outer sheath: Flexible PVC, cold resistance, flame resistance
Colour: Grey(RAL7001)
Technical data:
Rated voltage: 300/500V
Test voltage: 2500V
Minimum bending radius: 0.3m
Burning vertically test: GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions. The temperature of conductor is lower than 70ºC
Temperature range:
-15ºC to 70ºC
TVVB (Parallel) free suspension length must not exceed 35 meters, and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.
Flat Flexible Traveling Cable for Elevator with CE certificate TVVBP 42Cx0.75+2x2Px0.75 with Special PVC Jacket 0

Product Name	Specification	Width(mm)	Thickness(mm)	Weight (kg/km)	Struction
H05VVH6-F	2C0.5mm2	7.3± 1.0	4.1± 0.5	55	Straight line
H05VVH6-F	3C0.5mm2	9.3± 1.0	4.1± 0.5	71	Straight line
H05VVH6-F	4C0.5mm2	12.3± 1.0	4.1± 0.5	93	Straight line
H05VVH6-F	5C0.5mm2	15.2± 1.0	4.1± 0.5	114	Straight line
H05VVH6-F	6C0.5mm2	17.2± 1.0	4.1± 0.5	130	Straight line
H05VVH6-F	7C0.5mm2	19.2± 1.0	4.1± 0.5	146	Straight line
H05VVH6-F	8C0.5mm2	21.2± 1.5	4.1± 0.5	162	Straight line
H05VVH6-F	9C0.5mm2	23.2± 1.5	4.1± 0.5	178	Straight line
H05VVH6-F	10C0.5mm2	25.2± 1.5	4.1± 0.5	194	Straight line
H05VVH6-F	11C0.5mm2	27.2± 1.5	4.1± 0.5	210	Straight line
H05VVH6-F	12C0.5mm2	29.2± 1.5	4.1± 0.5	226	Straight line
H05VVH6-F	13C0.5mm2	31.2± 2.0	4.1± 0.5	24
