Flexible and torsion resistant cables of rated voltages up to and including 1.8/3kV for wind turbine GB/T 29631-2013

Flexible and torsion resistant cables of rated voltages up to and including 1.8/3kV for wind turbine GB/T 29631-2013

Brand Name: ECHU
Model Number: FDEF, FDES, FDGG, FDEG, FDEH
MOQ: 100-300M
Price: USD1.2-USD16.68/M
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000km/week
Detail Information
Place of Origin:
China
Jacket Material:
CR, Silicon Rubber, PUR(TPU), CSM
Number Of Cores:
1-48
Type:
Special Cable
Trademark:
ECHU
Function:
For Wind Turbine
Packing:
Splint Reel
Flame Retardant:
Yes
Insulation:
EPR, Silicon Rubber
Voltage:
450/750V, 0.6/1KV. 1.8/3KV
Temperature:
-25℃,-40℃,-55℃
Packaging Details:
plywood reel
Product Description

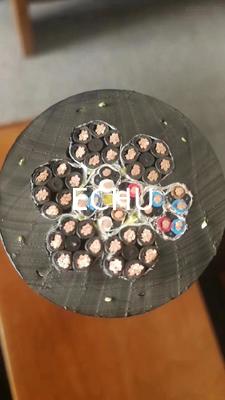

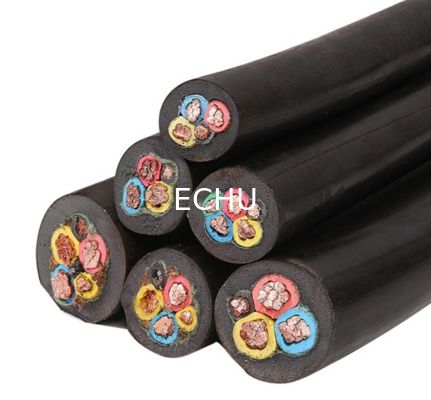

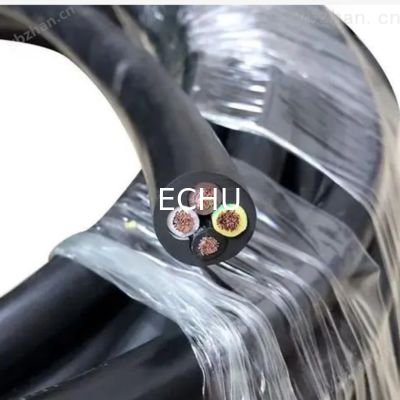

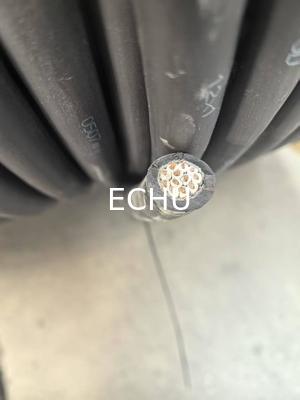

Flexible and torsion resistant cables of rated voltages up to and including 1.8/3kV for wind turbine GB/T 29631-2013



Application Characteristics

  • The cables are of reated voltage UP TO 450/750V, 0.6/1KV, 1.8/3KV
  • The permissible temperature in continuous service of cables is respectively as follows:



Voltage grade 450/750V: 70℃

Voltage grade 0.6/1KV, 1.8/3KV: 90℃

  • The minimum bending radius of cable 6 D (D is overall diameter of cables)
  • The suitable minimum ambient temperature of cables is respectively as follows:

Ordinary:-25℃

Cold resistant: -40℃

Freezing resistant: -55℃

  • The cables have the performance of torsion resistance









芯数及导体标称截面

Number &nonminal

cros5-5ectional area of

conductor

mm²

平均外径

Mean overall diameter mm

450V/750V0.6/1kV 0.6/1kV
FDEF FDES FDGG FDEG FDEH FDEU FDGU

下限

Lower limit

上限

Upper limit

下限

Lower limit

上限

Upper limit

1×1.5 5.7 7.1 48 5.9
1×2.5 6.3 7.9 5.4 6.7
1×4 7.2 9.0 6.3 7.8
1×6 7.9 9.8 6.7 8.4
1×10 9.5 11.9 8.3 10.5
1×16 10.8 13.4 9.5 11.7
J×25 12.7 15.8 11.4 14.1
1×35 14.3 I7.9 127 16.0
1×50 16.5 20.6 14.8 18.4
1×70 18.6 23.3 16.6 20.9
1×95 20.8 26.0 18.8 23.6
1×120 22.8 28.6 20.8 26.3
1×150 25.2 31.4 23.1 28.9
1×185 27.6 34.4 25.2 31.7
1×240 30.6 38.3 28.2 35.6
1×300 33.5 41.9 31.1 39.2
1×400 37.4 46.8 34.9 43.8
2×1 7.7 10.0 6.9 9.0
2×1.5 8.5 11.0 7.6 9.8
2×2.5 10.2 13.1 9.0 11.6
2×4 11.8 15.1 10.6 13.7
2×6 13.1 16.8 1.8 15.1
2×10 17.7 22.6 15.6 19.9
2×16 20.2 25.7 17.9 22.8
2×25 24.3 30.7 21.8 27.6
