products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Flat Cable
Created with Pixso.

Rubber Flat Flexible Traveling Cable

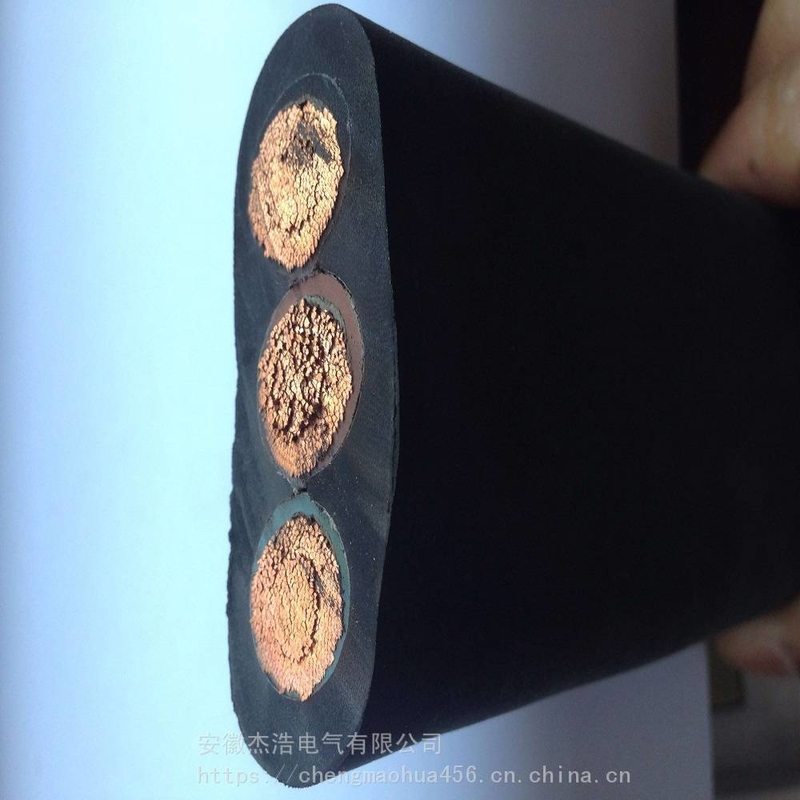

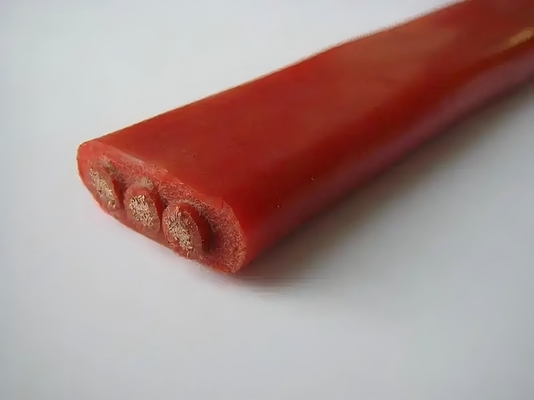

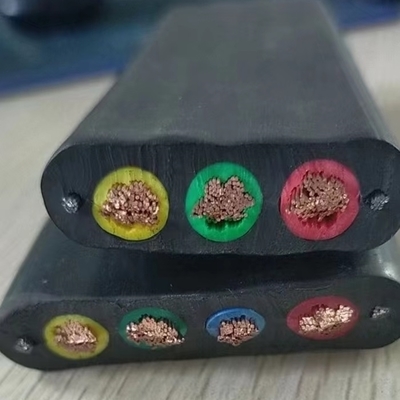

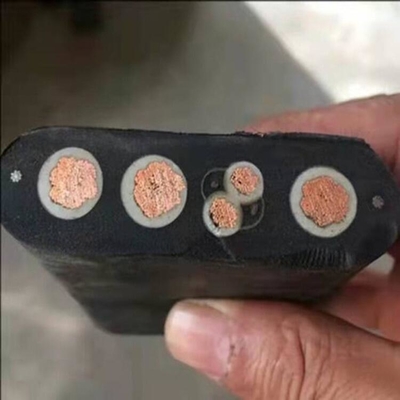

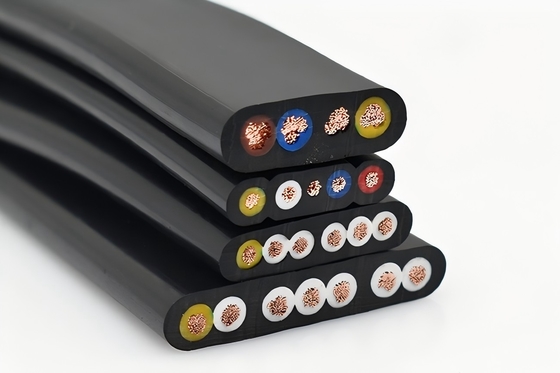

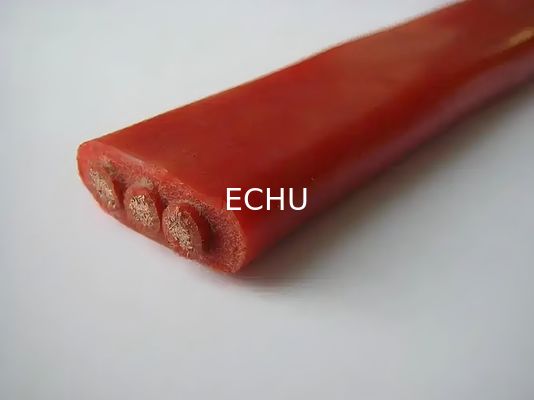

Rubber Flat Flexible Traveling Cable

Rubber Flat Flexible Traveling Cable

Brand Name: ECHU
Model Number: YFFB, H07VVH6-F, H07VVD3H6-F
MOQ: 300M
Price: USD0.8-USD2.297/M
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000KM/week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Temperature Rating:
70°C
Number Of Conductors:
2-60
Insulation Material:
Rubber
Conductor Material:
Copper
Flexibility:
High
Usage:
Electrical Applications
Product Type:
Flat Cable
Shielding:
None
Material:
Rubber
Color:
Black
Length:
300meter
Conductor Size:
1.5-240mm2
Durability:
High
Voltage Rating:
450/750V
Packaging Details:
plywood Reel
Product Description

Rubber flat traveling cable





Applications:

This product is suitable for use in lifting and transportation machinery with an AC rated voltage of 450/750V and below, as well as mobile electrical equipment.

Specification:
Product standard: Enterprise Standard

Core: 2/4/6/8/10 etc, available

Cross section: 1.5-240mm2
Type of conductor: Copper or tinned copper,class 5
Material of conductor: Copper/Tinned Copper
Material of insulation: EPR/EPDM
Color of core insulation: Red/White/Blue/Black/Green/Yellow(Optional)
Material of Jacket: SE3/SE4

Voltage: 450/750V VOLTS
Temperature Range: -15°C to +70°C



Type Name Application Size (mm²)
YZB Rubber insulated flat rubber sheathed flexible cable Suitable for Various lifting and transportation machinery and electrical equipment used for frequent movement 2.3 1.5~240
YCB 4.6 1.5~240
YZWB Suitable for Various lifting and transportation machinery and electrical equipment used for frequent movement, outdoor or oil contaminated platforms 2,3 1.5~240
YCWB 4,6 2.5-240
