ECHU Drag Chain Cable CE Certificated EKM62383 4x0.34 in Grey/black/orange color, 600V drag chain cable

Brand Name:	ECHU
Model Number:	EKM62373,EKM62383, EKM61100, EKM62100, EKM61373
MOQ:	200Meter
Price:	$0.155-$2.989/M
Payment Terms:	T/T, Western Union
Supply Ability:	10000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Bending For Life:

Above 8,000,000 Times

Properties:

Oil Resistance, Cool Resistance,abrasion Resistance, Flame Resistance, Anti-ultravoiolet

Insulation:

Jacket:

Double Jacket

Installation:

Movable

Flame Retardant:

Meet IEC60332-1-2+EN60332-1-2

Voltage:

600V

Packaging Details:

plywood reel

Product Description

Flexible Drag Chain Cable

Applications:

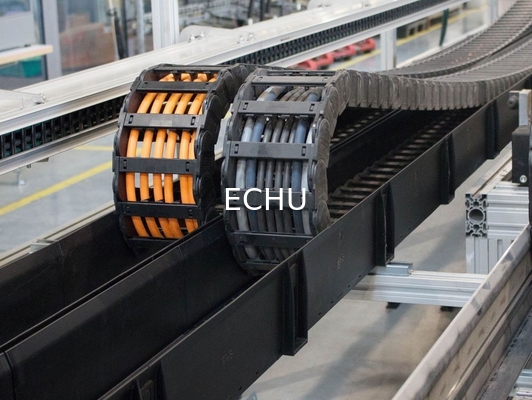

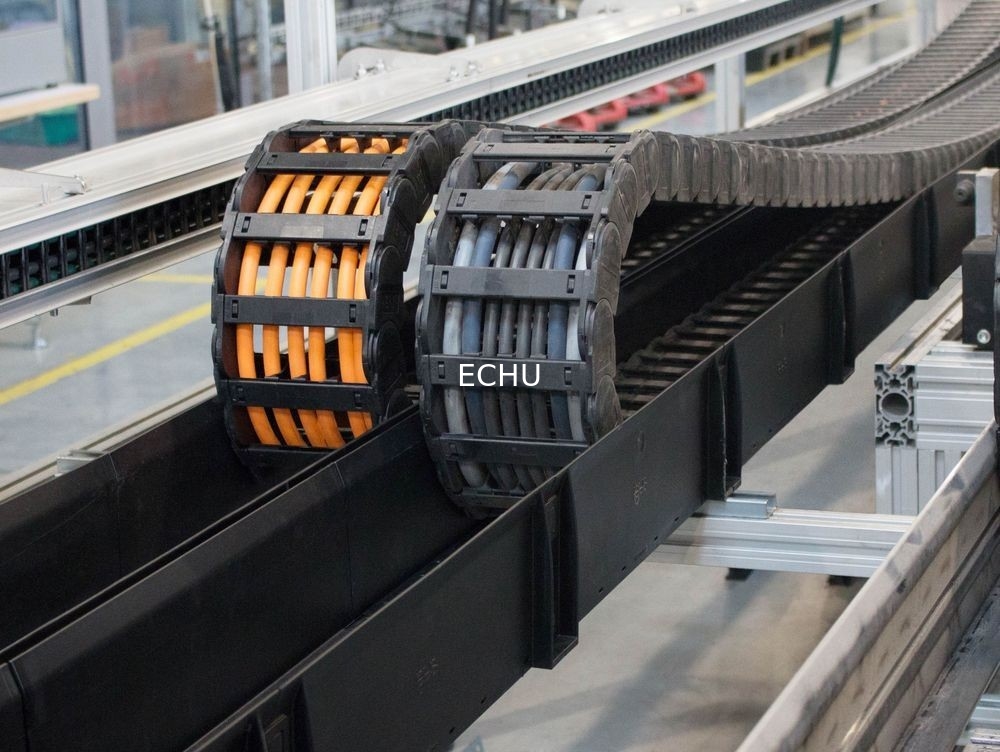

It is suitable for day or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyor system, crane and other related equipments.

Properties:
Waterproofing, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet
Bending life: About 8, 000, 000 times

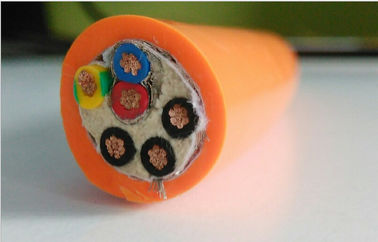

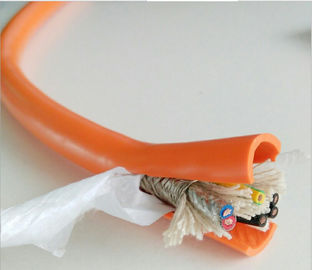

Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295 CLASS6
Insulation: PP
Color: ≤ 0.5mm brown, black, blue, purple, pink, orange
≥ 0.5mm cores black with consecutive white numbering
3 cores or more with green/ yellow earth wire
Sheath: NBR
Black (RAL9005) or grey (RAL7001),Orange (RAL2003)
Related voltage: SQ<0.5mm2: 300/300V
SQ>0.5mm2: 300/500V
Test voltage: 2000V

Temperature range:
Fixed Installation: -30 ℃---+70℃

Flexing Installation: -20 ℃---+70℃

The minimum bending radius: Fixed: 5xD
Moved: When travel < 10m, bending radius is 8xD
When travel > 10m, bending radius is 10xD

Type	Size	Weight KG/KM	O.D.(mm)
Type	Size	Weight KG/KM	O.D.(mm)
EKM62373	0.14*2C	32	4.3
EKM62373	0.14*3C	36	4.5
EKM62373	0.14*4C	41	4.8
EKM62373	0.14*5C	46	5.2
EKM62373	0.14*6C	53	5.6
	......
	......
EKM62373	0.20*2C	34	4.6
EKM62373	0.20*3C	39	4.8
EKM62373	0.20*4C	44	5.1
	......
	......
EKM62373	0.25*2C	37	4.7
EKM62373	0.25*3C	42	4.9
EKM62373	0.25*4C	59	5.7
	......
	.......
	......
EKM62373	4.0*2C	280	12.1
EKM62373	4.0*3C	351	13.4
Or other sizes not mensioned
