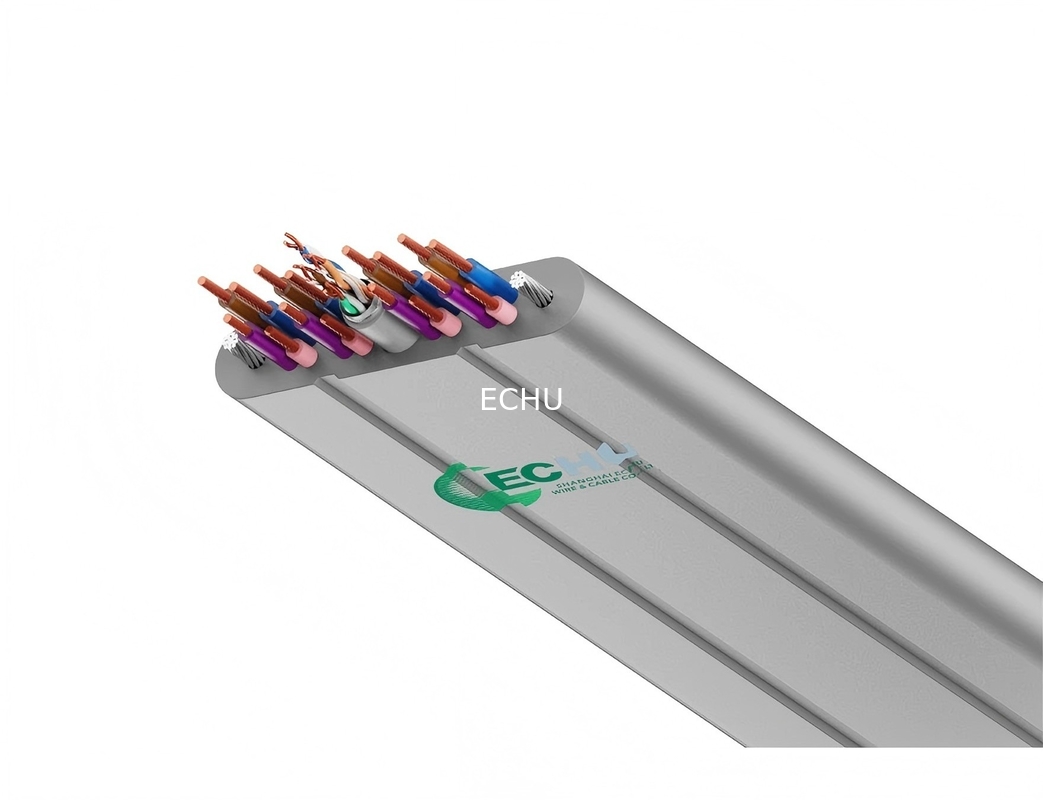

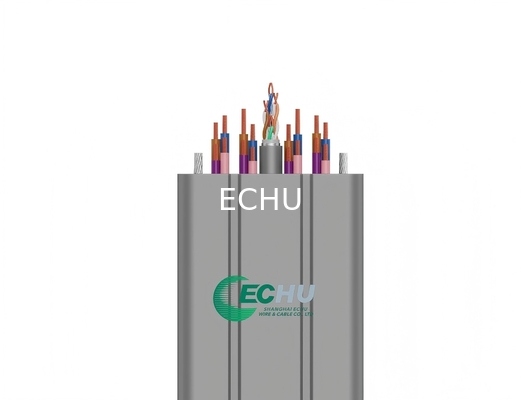

ECHU Flat Traveling Cable for Elevator use, Shielded Flat Travel Cable with STP/UTP CAT6

Brand Name:	ECHU
Model Number:	TVVB, H05VVH6-F, TVVBG, TVVBP, TVVBPG, TVVBG-STP
MOQ:	100-300M
Price:	0.1013-10.198USD/m
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC, CE

Color:

Orange

Voltage:

300/500V

Installation:

Flexible

Insulation:

PVC

Jacket:

Flexible PVC

Packaging Details:

plywoode reel

Product Description

ECHU Flat Traveling Cable for Elevator use, Shielded Flat Travel Cable with STP/UTP CAT6 0

Approvals: CCC & CE approval

Conductor:bare copper , VDE 0295 class 5
Insulation:special PVC
Sheath: special PVC
flexible, wear -resistant ,cold-resistant

Range of application:
As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
Properties:
The outer sheath is extensively resistant to oil and cooling liquid.
Standards:GB5023.6,IEC60227-6,EN 50214

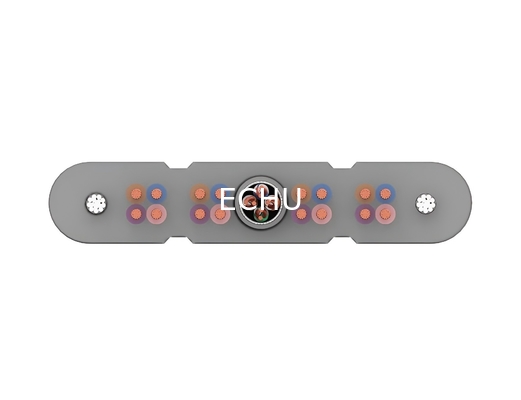

Structure:
Conductor: fine strands of bare copper wire,
Acc.to VDE0295 CLASS5
Insulation:special PVC
Colour:yellow,white,orangeg with black number with white digital coding
Bearing:steel rope
Outer sheath:flexible PVC,cold resistance ,flame resistance
Colour:grey(RAL7001)
Technical data:
Rated voltage:300/500V
Test voltage:2500V
Minimum bending radius:0.3m<L<0.6M
Burning vertically test:GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions.the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C
TVVB (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.

Type	Size	Widthxthickness(mm)
TVVB2G	75-5+2X1.0	22.9±1.0×9.3±0.5
TVVB2G	75-5+2X0.75	22.9±1.0×9.3±0.5
TVVB1G	75-3+2X0.75	17.0±1.0×6.5±0.5
TVVB2G	SYV75-5-2	13.3±1.0×7.1±0.5
SYV2G	75-5-2	8.1±0.5×3.7±0.2

E	CORES	SPEC.	Shielding	Width mm	Thickness mm	Weight (kg/km)
TVVBP	24	0.75	22P0.75(bare copper braid)	44.3±2.0	8.4±0.5	824
TVVBP	30	0.75	22P0.75(bare copper braid)	53.1±2.0	7.8±0.5	925
TVVBP	36	0.75	22P0.75(bare copper braid)	56.8±2.0	8.4±0.5	1042
TVVBP	40	0.75	22P0.75(bare copper braid)	64.2±2.5	7.8±0.5	1087
TVVBP	42	0.75	22P0.75(bare copper braid)	63.0±2.5	8.4±0.5	1140
TVVBP	48	0.75	22P0.75(bare copper braid)	69.1±2.5	8.4±0.5	1238
TVVBP	54	0.75	22P0.75(bare copper braid)	75.3±2.5	8.4±0.5	1336
TVVBP	60	0.75	22P0.75(bare copper braid)	81.4±2.5	8.4±0.5	1434
TVVBP	66	0.75	22P0.75(bare copper braid)	87.6±2.5	8.4±0.5	1533
TVVBP(G)	24	0.75	22P0.75(bare copper braid)	53.3±2.0	7.8±0.5	963
TVVBP(G)	30	0.75	22P0.75(bare copper braid)	61.3±2.5	8.4±0.5	1047
TVVBP(G)	36	0.75	22P0.75(bare copper braid)	65.0±2.5	7.8±0.5	1171
TVVBP(G)	40	0.75	22P0.75(bare copper braid)	72.4±2.5	8.4±0.5	1210
TVVBP(G)	42	0.75	22P0.75(bare copper braid)	72.2±2.5	8.4±0.5	1301
TVVBP(G)	48	0.75	22P0.75(bare copper braid)	78.3±2.5	8.4±0.5	1399
TVVBP(G)	54	0.75	22P0.75(bare copper braid)	84.5±2.5	8.4±0.5	1497
TVVBP(G)	60	0.75	22P0.75(bare copper braid)	90.6±2.5	8.4±0.5	1596
TVVBP(G)	66	0.75	22P0.75(bare copper braid)	96.8±2.5	8.4±0.5	1694
