ECHU VFF Flat Type PVC Insulated , PVC Jacket Cable , Parallel Flat Cable RVB

Brand Name:	ECHU
Model Number:	VFF, RVB
MOQ:	300m
Price:	USD0.1-USD1.02/M
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000KM/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

PSE

Color:

Red, Black

Conductor:

Bare Copper

Shape:

Parrallel

Standard:

CCC, PSE

Packaging Details:

in roll, splint boxes, pallet

Product Description

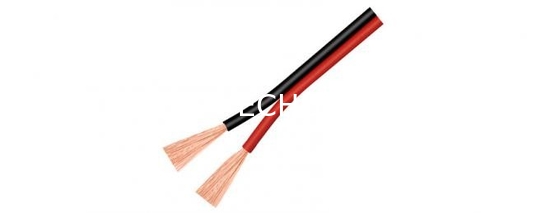

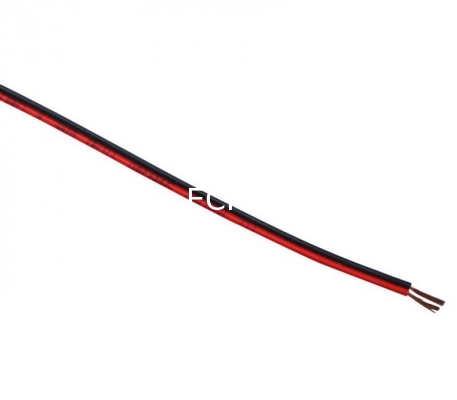

ECHU VFF Flat Type PVC Insulated , PVC Jacket Cable , Parallel Flat Cable RVB 0

RVB Power Cable is specially for Anti-theft alarm,Automatic meter reading project,Cable television and Cado communications engineering;Automation and control systems with line,Fire engineering,Communication engineering,Computer network cabling project,Instruments, Electrical equipment line;Broadcast, Audio cabling project. Specification

RVB 2×0.5mm²
RVB 2×0.75mm²
RVB 2×1mm²
RVB 2×1.5mm²
RVB 2×2.5mm²
RVB 2×4mm²
RVB 2×6mm²
RVB 2×10mm²

Operating Characteristics:
A. Working Temperature: 0oC ~ 70oC
B. Min. Bending Radius: 4D(O.D. less than 25mm), 6D(O.D. more than and including 25mm) Product name: copper core PVC insulated sheathed flexible wire (red and black)
Inner conductor material: copper Conductor using multiple strands of bare copper wire twisted

Insulation thickness: 0.8 1.0 mm

Insulation resistance: 5000 m Ω/km

Conductor resistance when 20 ℃ maximum Ω/Km

70 ℃ when the conductor resistance minimum M Ω. Km

Rated voltage Uo/U 300/300 300/300 v v

Execution standard: GB5023.5-1997

Production standard: national standards and enterprise standards

Temperature: - 40 ~ 70 ℃

The characteristic impedance: 75 Ω
