Related Temperature: | 105℃ | Rated Voltage: | 600V |
---|---|---|---|
Jacket: | ROHS PVC | Insulation: | ROHS PVC |
Color: | Red/white/black/blue/yellow.... |

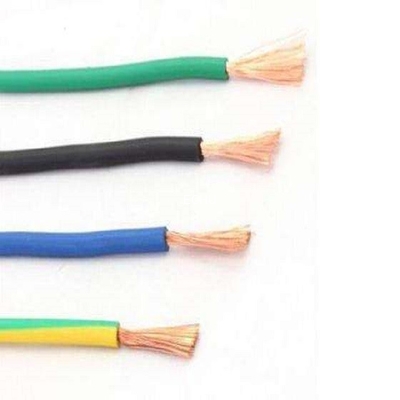

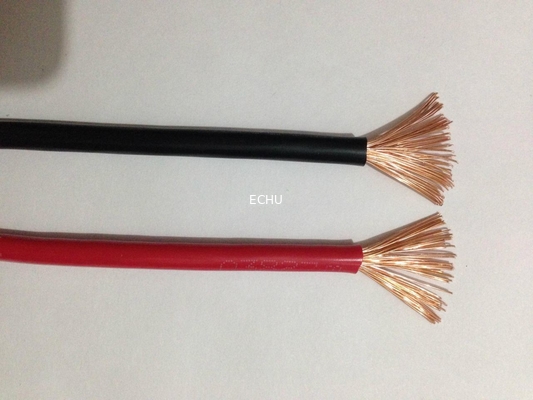

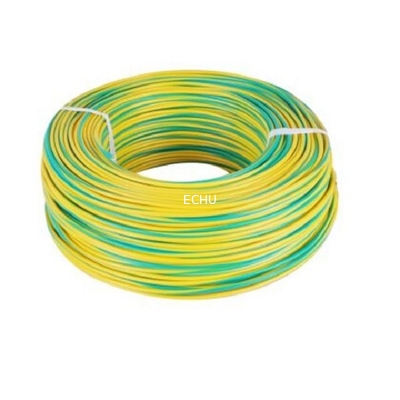

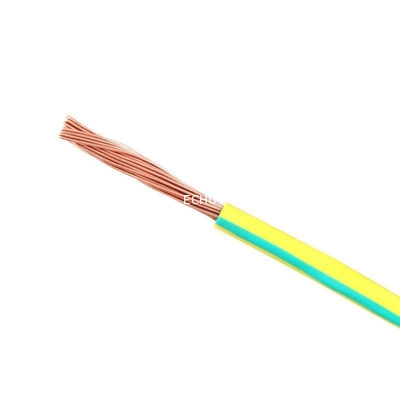

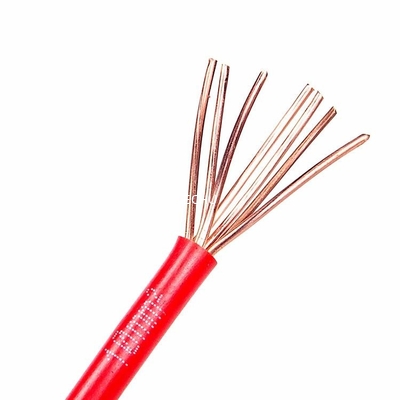

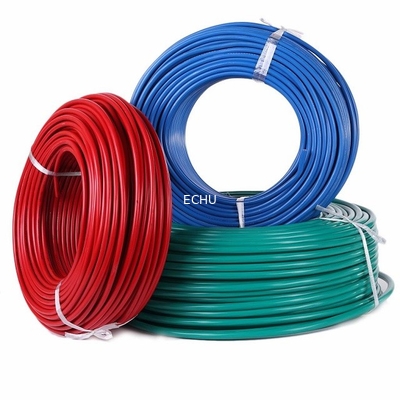

ROHS PVC UL1015 Electrical Earth Cable 14AWG 600V
UL Approval
Description:
Related temperature: 105 degree
Rated voltage: 600V
Reference standard:
UL subject 758 & UL1581/CSA C22.2 No. 210.05
Tinned or bare, stranded or solid copper conductor
Insulation: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passed UL VW-1 flame test
Application:
For internal wiring of electronic and electrical equipment
Can be substituted by UL3386
Type | Size (AWG) | Bare Copper | Tinned Copper | Insulation Thickness (mm) | Weight KG/KM | Insulation O.D. mm | Cross section (mm 2) | ||||
Conductor | Conductor | Down | Up | ||||||||
UL1015 | 26 | 7 | 0.16 | 7 | 0.16 | 0.76 | 7.1 | 2.0 | ~ | 2.2 | 0.14 |
UL1015 | 24 | 11 | 0.16 | 11 | 0.16 | 0.76 | 8.3 | 2.1 | ~ | 2.3 | 0.22 |
UL1015 | 22 | 17 | 0.16 | 17 | 0.16 | 0.76 | 10.0 | 2.3 | ~ | 2.5 | 0.34 |
UL1015 | 20 | 26 | 0.16 | 26 | 0.16 | 0.76 | 12.4 | 2.5 | ~ | 2.7 | 0.52 |
UL1015 | 18 | 41 | 0.16 | 41 | 0.16 | 0.76 | 16.2 | 2.7 | ~ | 2.9 | 0.82 |
UL1015 | 17 | 51 | 0.16 | 51 | 0.16 | 0.76 | 19.0 | 2.8 | ~ | 3.0 | 1.03 |
UL1015 | 16 | 26 | 0.254 | 27 | 0.25 | 0.76 | 22.6 | 3.0 | ~ | 3.2 | 1.32 |
UL1015 | 15 | 33 | 0.254 | 34 | 0.25 | 0.76 | 25.9 | 3.2 | ~ | 3.4 | 1.67 |
UL1015 | 14 | 41 | 0.254 | 43 | 0.25 | 0.76 | 31.5 | 3.4 | ~ | 3.6 | 2.0775 |
UL1015 | 13 | 52 | 0.254 | 54 | 0.25 | 0.76 | 36.5 | 3.6 | ~ | 3.8 | 2.63 |
UL1015 | 12 | 65 | 0.254 | 67 | 0.25 | 0.76 | 45.5 | 3.9 | ~ | 4.1 | 3.29 |
UL1015 | 11 | 82 | 0.254 | 85 | 0.25 | 0.76 | 52.6 | 4.3 | ~ | 4.5 | 4.16 |
UL1015 | 10 | 104 | 0.254 | 107 | 0.25 | 0.76 | 67.1 | 4.8 | ~ | 5.0 | 5.27 |
UL1015 | 9 | 94 | 0.30 | 94 | 0.30 | 0.76 | 89.0 | 5.3 | ~ | 5.5 | 6.64 |
UL1015 | 8 | 118 | 0.30 | 118 | 0.30 | 1.15 | 107.5 | 6.5 | ~ | 6.7 | 8.34 |
UL1015 | 7 | 147 | 0.30 | 147 | 0.30 | 1.15 | 140.3 | 7.0 | ~ | 7.2 | 10.39 |
UL1015 | 6 | 189 | 0.30 | 189 | 0.30 | 1.52 | 172.6 | 8.4 | ~ | 8.6 | 13.36 |
UL1015 | 5 | 238 | 0.30 | 238 | 0.30 | 1.52 | 207.6 | 9.1 | ~ | 9.3 | 16.82 |
UL1015 | 4 | 299 | 0.30 | 299 | 0.30 | 1.52 | 267.9 | 9.8 | ~ | 10.0 | 21.14 |
UL1015 | 3 | 378 | 0.30 | 378 | 0.30 | 1.52 | 325.6 | 10.7 | ~ | 11.1 | 26.72 |
UL1015 | 2 | 475 | 0.30 | 475 | 0.30 | 1.52 | 382.5 | 11.7 | ~ | 12.1 | 33.58 |
UL1015 | 1 | 600 | 0.30 | 600 | 0.30 | 2.03 | 495.9 | 13.8 | ~ | 14.2 | 42.41 |
UL1015 | 1/0 | 251 | 0.52 | 272 | 0.50 | 2.03 | 615.3 | 14.5 | ~ | 14.9 | 53.31 |
UL1015 | 2/0 | 317 | 0.52 | 343 | 0.50 | 2.03 | 750.0 | 15.8 | ~ | 16.4 | 67.32 |
UL1015 | 3/0 | 400 | 0.52 | 433 | 0.50 | 2.03 | 923.0 | 17.2 | ~ | 17.8 | 84.95 |
UL1015 | 4/0 | 505 | 0.52 | 546 | 0.50 | 2.03 | 1134.3 | 18.9 | ~ | 19.5 | 107.25 |
UL1015 | 250 | 598 | 0.52 | 647 | 0.50 | 2.41 | 1366.5 | 20.9 | ~ | 21.9 | 127.00 |
UL1015 | 300 | 716 | 0.52 | 774 | 0.50 | 2.41 | 1609.3 | 22.5 | ~ | 23.5 | 152.06 |
UL1015 | 350 | 833 | 0.52 | 901 | 0.50 | 2.41 | 1852.7 | 23.9 | ~ | 24.9 | 176.91 |
UL1015 | 400 | 955 | 0.52 | 1033 | 0.50 | 2.41 | 2104.3 | 25.3 | ~ | 26.3 | 202.82 |
UL1015 | 450 | 1073 | 0.52 | 1161 | 0.50 | 2.41 | 2344.7 | 26.5 | ~ | 27.5 | 227.88 |
UL1015 | 500 | 1191 | 0.52 | 1288 | 0.50 | 2.41 | 2584.8 | 27.7 | ~ | 28.7 | 252.94 |
UL1015 | 550 | 1313 | 0.52 | 1420 | 0.50 | 2.79 | 2898.6 | 29.6 | ~ | 30.6 | 278.84 |
