UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire

China UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire supplier
UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire supplier UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire supplier UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire supplier UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire supplier UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire supplier UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire supplier

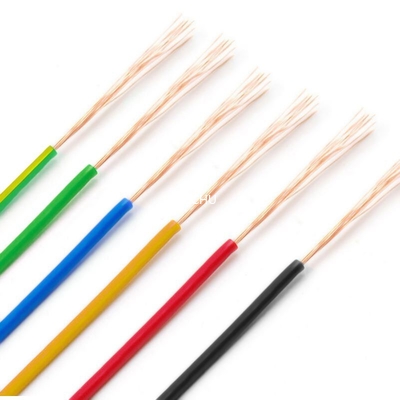

Large Image :  UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: UL. E312831
Model Number: UL1061

Payment & Shipping Terms:

Minimum Order Quantity: 305m
Price: USD0.023-USD0.0689/M
Packaging Details: 305meter per roll
Delivery Time: within 10days
Payment Terms: T/T, Western Union
Supply Ability: 100000km/week
Detailed Product Description
Product Name: UL1061 Electrical Wire Conductor: Bare Copper Or Tinned Copper
Colors: 12 Different Kinds Of Color Company Type: Manufacturer
Range Of Application: Internal Wiring Brand: ECHU
Voltage: 300V

UL1061 Sr-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light



Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible

This type of cable have the advantage of the cable have smaller outside diameter, can meet higher using requirement.

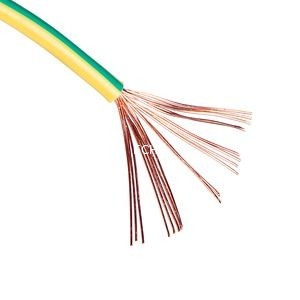

UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire

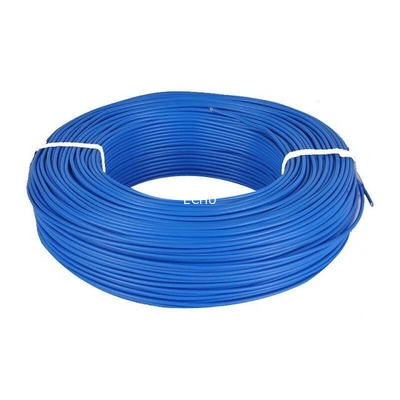

UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire

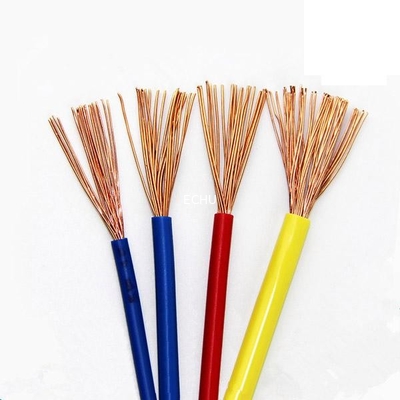

UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire

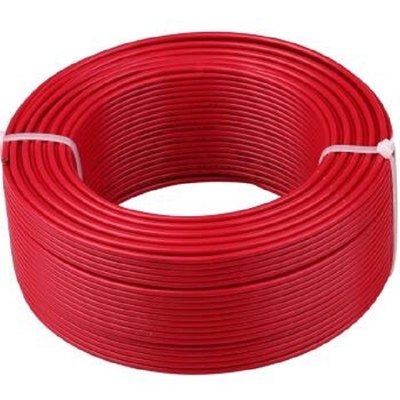

UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light ECHU Wire


Conductor Insulation Maximum Resistance at 20ºC
Ω
/km
AWG No./mm Dia.
mm
Nom. Thick.
mm
Nom.Dia.
mm
30 7/0.1 0.30 0.26 0.82 354
28 7/0.127 0.38 0.26 0.90 223
26 7/0.16 0.48 0.26 1.00 139
24 11/0.16 0.61 0.27 1.15 88.9
22 17/0.16 0.76 0.26 1.28 57.5
20 26/0.16 0.94 0.26 1.46 34.6
18 41/0.16 1.18 0.26 1.70 23.3
16 26/0.254 1.49 0.26 2.02 15.1
