ECHU Flexible Pendant Cable RVV(1G)/RVV(2G)

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

ECHU Flexible Pendant Cable RVV(1G)/RVV(2G)

China ECHU Flexible Pendant Cable RVV(1G)/RVV(2G) supplier
ECHU Flexible Pendant Cable RVV(1G)/RVV(2G) supplier ECHU Flexible Pendant Cable RVV(1G)/RVV(2G) supplier ECHU Flexible Pendant Cable RVV(1G)/RVV(2G) supplier ECHU Flexible Pendant Cable RVV(1G)/RVV(2G) supplier

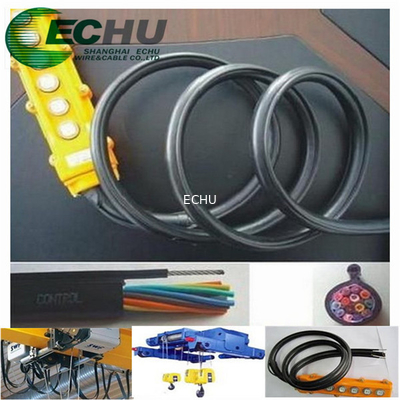

Large Image :  ECHU Flexible Pendant Cable RVV(1G)/RVV(2G)

Product Details:

Place of Origin: Shanghai, China
Brand Name: ECHU
Certification: CE
Model Number: RVV(1G), RVV(2G)

Payment & Shipping Terms:

Minimum Order Quantity: 300Meters
Price: USD0.115-USD1.326/m
Packaging Details: splint reel/wooden box
Delivery Time: 10days after receiving payment
Payment Terms: T/T., Western Union..., L/C
Supply Ability: 100000km/week
Detailed Product Description
Color: Black Volotage: 300/500V, 450/750V
Bending Radius: 20xouter Diameter Out Shealth: Special PVC

Pendant Crane Cable from Factory
Applications:
It is the control cable being used for cranes and other appliances in dry or wet environment (indoor). For its special flexibility, it also can be used for non-continuous installation or fixation, but cannot work as elevator cables. Juted insulated cable rope among cores functions as tensile resistance, there is non-woven fabric to release impact between cores and sheath.
Properties:
In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4KN and the height 150m.
For the adoption of modified PVC sheath, the product has an excellent properties and safety service.

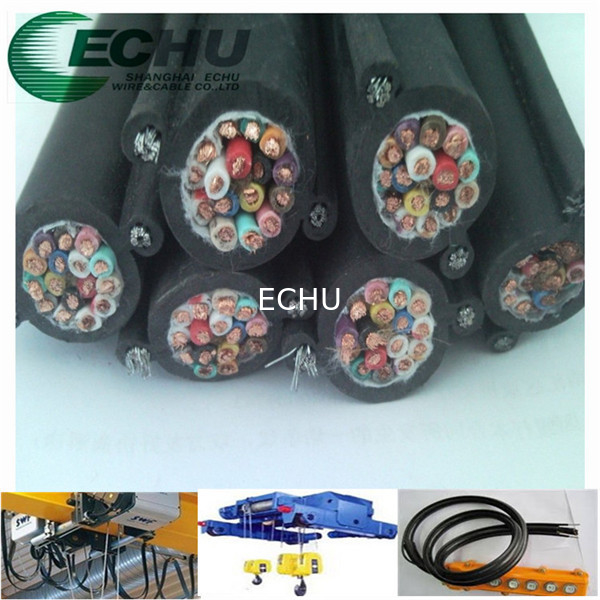

Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295, class 5
Color: Various colour cores with number acc. To JISC3306
Black with white number and green/yellow acc. To IEC227
Inner liner: Non-woven fabric wrapping to release impact

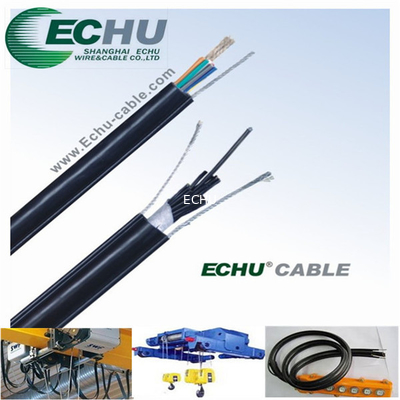

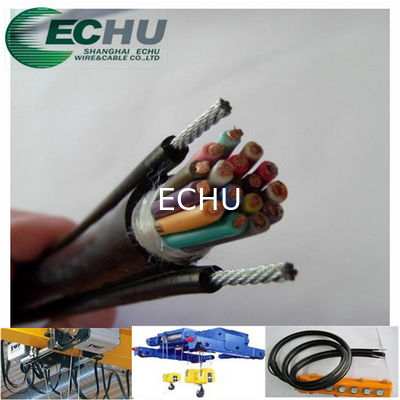

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.
Outer sheath: Special PVC, black(RAL9005)
Technical data:
Rated voltage: 1.5mm 450/750V
Test voltage: 1.5mm 3000V
Temperature range: -15 degree to +70 degree; (or -40 degree to 105 degree)

ECHU Flexible Pendant Cable RVV(1G)/RVV(2G)ECHU Flexible Pendant Cable RVV(1G)/RVV(2G)ECHU Flexible Pendant Cable RVV(1G)/RVV(2G)

TYPE
CORES

SPECIFICATION

STEEL NO.

STEEL DIAMETER mm

WEIGHT(KG/KM)

MEASUREMENTmm

RVV(2G)

2C

1.25

2

1.3

175

17.3

RVV(2G)

3C

1.25

2

1.3

192

17.8

RVV(2G)

4C

1.25

2

1.3

221

18.7

RVV(2G)

5C

1.25

2

1.3

253

19.7

RVV(2G)

6C

1.25

2

1.3

287

20.7

RVV(2G)

7C

1.25

2

1.6

329

24

RVV(2G)

8C

1.25

2

1.6

369

25.4

RVV(2G)

9C

1.25

2

1.6

410

26.4

RVV(2G)

10C

1.25

2

1.6

445

26.4

RVV(2G)

11C

1.25

2

1.6

481

26.9

RVV(2G)

12C

1.25

2

1.6

489

26.9

RVV(2G)

13C

1.25

2

1.6

534

27.8

RVV(2G)

14C

1.25

2

1.6

542

27.8

RVV(2G)

15C

1.25

2

1.6

590

28.8

RVV(2G)

16C

1.25

2

2.5

639

30.9

RVV(2G)

17C

1.25

2

2.5

690

31.9

RVV(2G)

18C

1.25

2

2.5

698

31.9

RVV(2G)

19C

1.25

2

2.5

719

31.9

RVV(2G)

20C

1.25

2

2.5

744

32.4

RVV(2G)

21C

1.25

2

2.5

780

32.9

RVV(2G)

22C

1.25

2

2.5

877

34.3

RVV(2G)

23C

1.25

2

2.5

896

35.3

RVV(2G)

24C

1.25

2

2.5

902

35.3

RVV(2G)

25C

1.25

2

2.5

940

35.9

RVV(2G)

26C

1.25

2

2.5

960

35.9

RVV(2G)

27C

1.25

2

2.5

969

35.9

RVV(2G)

28C

1.25

2

2.5

1019

36.7

RVV(2G)

29C

1.25

2

2.5

1028

36.7

RVV(2G)

30C

1.25

2

2.5

1048

36.7

RVV(2G)

2C

1.5

2

1.3

189

17.4

RVV(2G)

3C

1.5

2

1.3

207

17.9

RVV(2G)

4C

1.5

2

1.3

239

18.8

RVV(2G)

5C

1.5

2

1.3

276

19.8

RVV(2G)

6C

1.5

2

1.3

315

20.9

RVV(2G)

7C

1.5

2

2.5

403

26.3

RVV(2G)

8C

1.5

2

2.5

452

27.7

RVV(2G)

9C

1.5

2

2.5

502

28.7

RVV(2G)

10C

1.5

2

2.5

536

28.7

RVV(2G)

11C

1.5

2

2.5

575

29.3

RVV(2G)

12C

1.5

2

2.5

582

29.3

RVV(2G)

13C

1.5

2

2.5

634

30.2

RVV(2G)

14C

1.5

2

2.5

640

30.2

RVV(2G)

15C

1.5

2

2.5

698

31.2

RVV(2G)

16C

1.5

2

2.5

704

31.2

RVV(2G)

17C

1.5

2

2.5

765

32.2

RVV(2G)

18C

1.5

2

2.5

772

32.2

RVV(2G)

19C

1.5

2

2.5

791

32.2

RVV(2G)

20C

1.5

2

2.5

820

32.7

RVV(2G)

21C

1.5

2

2.5

861

33.2

RVV(2G)

22C

1.5

2

2.5

976

34.6

RVV(2G)

23C

1.5

2

2.5

1006

35.7

RVV(2G)

24C

1.5

2

2.5

1010

35.7

RVV(2G)

25C

1.5

2

2.5

1054

36.2

RVV(2G)

26C

1.5

2

2.5

1073

36.2

RVV(2G)

27C

1.5

2

2.5

1080

36.2

RVV(2G)

28C

1.5

2

2.5

1141

37.1

RVV(2G)

29C

1.5

2

2.5

1149

37.1

RVV(2G)

30C

1.5

2

2.5

1168

37.1
