Pendant Control Cable
Created with Pixso.

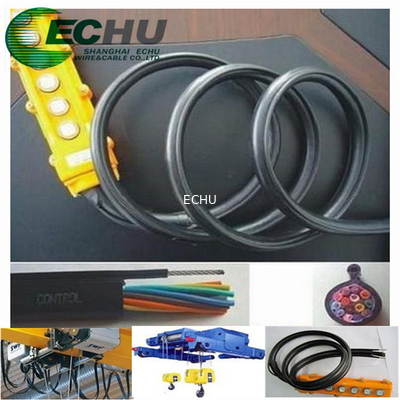

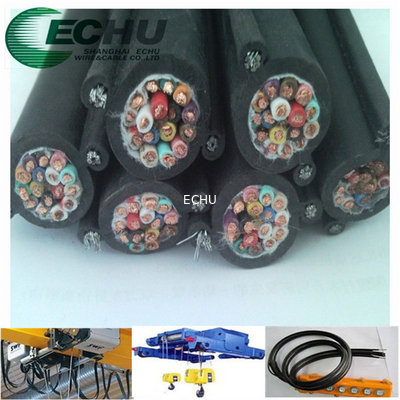

Round Cable with Supporting Steel Wires EKM790/79100

Round Cable with Supporting Steel Wires EKM790/79100

Round Cable with Supporting Steel Wires EKM790/79100

Brand Name: ECHU
Model Number: RVV(1G), RVV(2G)
MOQ: 300Meters
Price: USD0.116-USD0.897/M
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000km/week
Detail Information
Product Description
Detail Information
Place of Origin:
Shanghai, China
Color:
Black
Volotage:
300/500V, 450/750V
Bending Radius:
20xouter Diameter
Out Shealth:
Special PVC
Packaging Details:
splint reel/wooden box
Product Description

Pendant Crane Cable from Factory
Applications:
It is the control cable being used for cranes and other appliances in dry or wet environment (indoor). For its special flexibility, it also can be used for non-continuous installation or fixation, but cannot work as elevator cables. Juted insulated cable rope among cores functions as tensile resistance, there is non-woven fabric to release impact between cores and sheath.
Properties:
In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4KN and the height 150m.
For the adoption of modified PVC sheath, the product has an excellent properties and safety service.

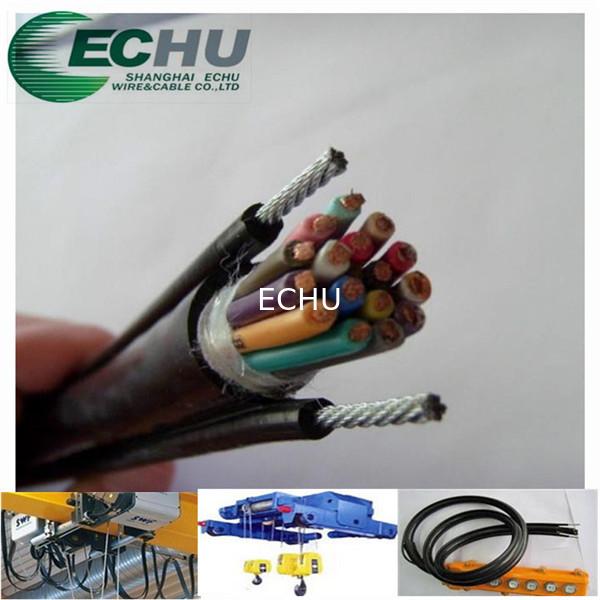

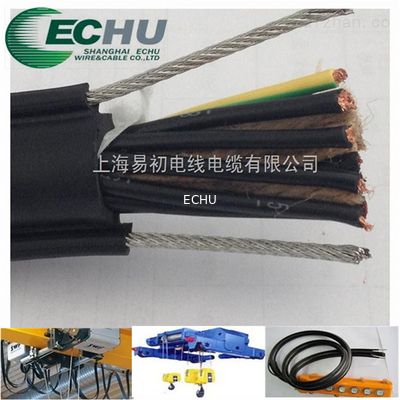

Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295, class 5
Color: Various colour cores with number acc. To JISC3306
Black with white number and green/yellow acc. To IEC227
Inner liner: Non-woven fabric wrapping to release impact
Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.
Outer sheath: Special PVC, black(RAL9005)
Technical data:
Rated voltage: 1.5mm 450/750V
Test voltage: 1.5mm 3000V
Temperature range: -15 degree to +70 degree; (or -40 degree to 105 degree)

Round Cable with Supporting Steel Wires EKM790/79100 0Round Cable with Supporting Steel Wires EKM790/79100 1Round Cable with Supporting Steel Wires EKM790/79100 2

TYPE
CORES
SPECIFICATION
STEEL NO.
STEEL DIAMETER mm
WEIGHT(KG/KM)
MEASUREMENTmm

RVV(2G)
2C
1.25
2
1.3
175
17.3

RVV(2G)
3C
1.25
2
1.3
192
17.8

RVV(2G)
4C
1.25
2
1.3
221
18.7

RVV(2G)
5C
1.25
2
1.3
253
19.7

RVV(2G)
6C
1.25
2
1.3
287
20.7

RVV(2G)
7C
1.25
2
1.6
329
24

RVV(2G)
8C
1.25
2
1.6
369
25.4

RVV(2G)
9C
1.25
2
1.6
410
26.4

RVV(2G)
10C
1.25
2
1.6
445
26.4

RVV(2G)
11C
1.25
2
1.6
481
26.9

RVV(2G)
12C
1.25
2
1.6
489
26.9

RVV(2G)
13C
1.25
2
1.6
534
27.8

RVV(2G)
14C
1.25
2
1.6
542
27.8

RVV(2G)
15C
1.25
2
1.6
590
28.8

RVV(2G)
16C
1.25
2
2.5
639
30.9

RVV(2G)
17C
1.25
2
2.5
690
31.9

RVV(2G)
18C
1.25
2
2.5
698
31.9

RVV(2G)
19C
1.25
2
2.5
719
31.9

RVV(2G)
20C
1.25
2
2.5
744
32.4

RVV(2G)
21C
1.25
2
2.5
780
32.9

RVV(2G)
22C
1.25
2
2.5
877
34.3

RVV(2G)
23C
1.25
2
2.5
896
35.3

RVV(2G)
24C
1.25
2
2.5
902
35.3

RVV(2G)
25C
1.25
2
2.5
940
35.9

RVV(2G)
26C
1.25
2
2.5
960
35.9

RVV(2G)
27C
1.25
2
2.5
969
35.9

RVV(2G)
28C
1.25
2
2.5
1019
36.7

RVV(2G)
29C
1.25
2
2.5
1028
36.7

RVV(2G)
30C
1.25
2
2.5
1048
36.7

RVV(2G)
2C
1.5
2
1.3
189
17.4

RVV(2G)
3C
1.5
2
1.3
207
17.9

RVV(2G)
4C
1.5
2
1.3
239
18.8

RVV(2G)
5C
1.5
2
1.3
276
19.8

RVV(2G)
6C
1.5
2
1.3
315
20.9

RVV(2G)
7C
1.5
2
2.5
403
26.3

RVV(2G)
8C
1.5
2
2.5
452
27.7

RVV(2G)
9C
1.5
2
2.5
502
28.7

RVV(2G)
10C
1.5
2
2.5
536
28.7

RVV(2G)
11C
1.5
2
2.5
575
29.3

RVV(2G)
12C
1.5
2
2.5
582
29.3

RVV(2G)
13C
1.5
2
2.5
634
30.2

RVV(2G)
14C
1.5
2
2.5
640
30.2

RVV(2G)
15C
1.5
2
2.5
698
31.2

RVV(2G)
16C
1.5
2
2.5
704
31.2

RVV(2G)
17C
1.5
2
2.5
765
32.2

RVV(2G)
18C
1.5
2
2.5
772
32.2

RVV(2G)
19C
1.5
2
2.5
791
32.2

RVV(2G)
20C
1.5
2
2.5
820
32.7

RVV(2G)
21C
1.5
2
2.5
861
33.2

RVV(2G)
22C
1.5
2
2.5
976
34.6

RVV(2G)
23C
1.5
2
2.5
1006
35.7

RVV(2G)
24C
1.5
2
2.5
1010
35.7

RVV(2G)
25C
1.5
2
2.5
1054
36.2

RVV(2G)
26C
1.5
2
2.5
1073
36.2

RVV(2G)
27C
1.5
2
2.5
1080
36.2

RVV(2G)
28C
1.5
2
2.5
1141
37.1

RVV(2G)
29C
1.5
2
2.5
1149
37.1

RVV(2G)
30C
1.5
2
2.5
1168
37.1
