UL1061 PVC Coated Hook up Lead Electrical Wire & Electric Lighting Cable

Name: UL1061 PVC Coated Hook up Lead Electrical Wire & Electric Lighting Cable
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL1061
Price: Negotiable USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL1061
MOQ:	305meters
Price:	0.0122-0.079USD/M
Payment Terms:	T/T, Western Union
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL. E312831

Product Name:

UL1061 Electrical Wire

Conductor:

Bare Copper Or Tinned Copper

Colors:

12 Different Kinds Of Color

Company Type:

Manufacturer

Range Of Application:

Internal Wiring

Brand:

ECHU

Voltage:

300V

Packaging Details:

305meter per roll

Product Description

UL1061 Sr-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light

Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible

This type of cable have the advantage of the cable have smaller outside diameter, can meet higher using requirement.

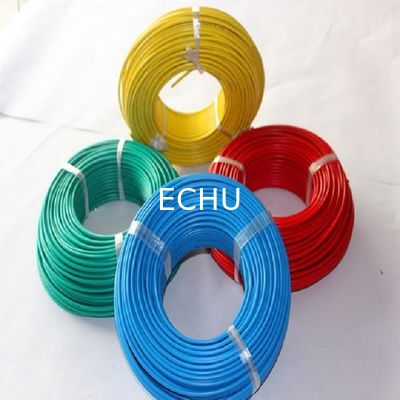

UL1061 PVC Coated Hook up Lead Electrical Wire & Electric Lighting Cable 0

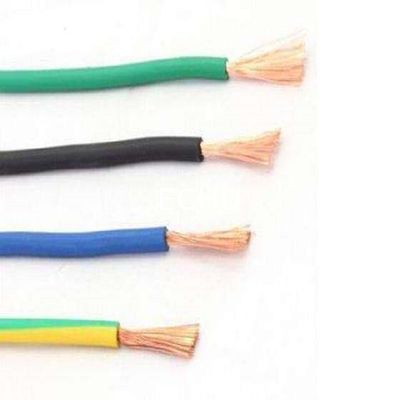

UL1061 PVC Coated Hook up Lead Electrical Wire & Electric Lighting Cable 1

UL1061 PVC Coated Hook up Lead Electrical Wire & Electric Lighting Cable 2

UL1061 PVC Coated Hook up Lead Electrical Wire & Electric Lighting Cable 3

Conductor			Insulation		Maximum Resistance at 20ºC Ω/km
AWG	No./mm	Dia. mm	Nom. Thick. mm	Nom.Dia. mm	Maximum Resistance at 20ºC Ω/km
30	7/0.1	0.30	0.26	0.82	354
28	7/0.127	0.38	0.26	0.90	223
26	7/0.16	0.48	0.26	1.00	139
24	11/0.16	0.61	0.27	1.15	88.9
22	17/0.16	0.76	0.26	1.28	57.5
20	26/0.16	0.94	0.26	1.46	34.6
18	41/0.16	1.18	0.26	1.70	23.3
16	26/0.254	1.49	0.26	2.02	15.1
