Round Elevator and Escalator Control Cable RVV 6x0.75+1x2.0 PVC insulation PVC sheath Cable

Brand Name:	ECHU
Model Number:	RVV
MOQ:	300M
Price:	0.106USD-9.978USD/M
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100000km/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Connect And Control Cable

Properties:

High Mechanical Property, Excellent Insulation, Good Chemistry Stability, Water Resistance

Core Color:

Colour Core Identification Or Number Identification

Sheath:

PVC

Optional Type:

Flat, RVVB

Packaging Details:

plywood reel

Product Description

Round Elevator and Escalator Control Cable

The cross section and sizes are optional
Applications:
Working as connecting and control cable under dry or wet indoor situation, especially for kinds of electronic installation of industrial condition. The cable cross section area 0.5sqmm or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belchin and air conditionor installation, For its special flexibility, it could also work in installation or fixation.
Properties:
For PVC's high mechanical property, excellent insulation, good chemistry stability, water resistance. Coloured core identification cable has more excellent capability and safety service.

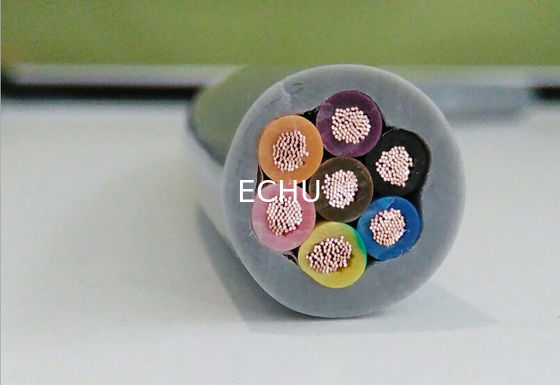

Structure:
Conductor: Copper acc. To VDE0295CLASS 5
Insulation: Special PVC
Inner liner: PP or non-woven for buffer
Sheath: PVC 70C sheath, black (RAL9005) or Grey (RAL7001)
Standards: JB8734.4-1998, GB5023.5-2008
Technical data:
Minimum bending diameter
Fixed Installation: 15xouter diameter
Flexing Installation: 6xouter diameter
Temprature range:
Flexing Installation: -10C to +70C
Fixed Installation: -30C to +70C
Test Voltage: </=0.5mm: 2000V
>/=0.5mm: 2500V
Working temperature: : </=0.5mm: 300/300V
>/=0.5mm: 300/500V
Optional: Flat Cable
Round Elevator and Escalator Control Cable RVV 6x0.75+1x2.0 PVC insulation PVC sheath Cable 0

Type	Size	Conductor		Weight (KG/KM)	O.D.(mm)
RVV	0.75*2C	49	0.14	48	6.2
RVV	0.75*3C	49	0.14	62	6.5
RVV	0.75*4C	49	0.14	77	7.1
RVV	0.75*5C	49	0.14	91	7.7
RVV	0.75*6C	49	0.14	107	8.4
RVV	0.75*7C	49	0.14	119	8.4
RVV	0.75*8C	49	0.14	143	9.5
RVV	0.75*9C	49	0.14	159	10.3
RVV	0.75*10C	49	0.14	175	11
RVV	0.75*11C	49	0.14	189	11.3
RVV	0.75*12C	49	0.14	212	11.7
RVV	0.75*13C	49	0.14	228	12.3
RVV	0.75*14C	49	0.14	240	12.3
RVV	0.75*15C	49	0.14	256	12.9
RVV	0.75*16C	49	0.14	268	12.9
RVV	0.75*17C	49	0.14	284	13.6
RVV	0.75*18C	49	0.14	297	13.6
RVV	0.75*19C	49	0.14	309	13.6
RVV	0.75*20C	49	0.14	323	13.9
RVV	0.75*21C	49	0.14	337	14.3
RVV	0.75*22C	49	0.14	355	15.1
RVV	0.75*23C	49	0.14	371	15.8
RVV	0.75*24C	49	0.14	383	15.8
RVV	0.75*25C	49	0.14	397	16.1
RVV	0.75*26C	49	0.14	409	16.1
RVV	0.75*27C	49	0.14	421	16.1
RVV	0.75*28C	49	0.14	437	16.7
RVV	0.75*29C	49	0.14	449	16.7
RVV	0.75*30C	49	0.14	478	17.1
RVV	0.75*31C	49	0.14	494	17.7
RVV	0.75*32C	49	0.14	506	17.7
RVV	0.75*33C	49	0.14	518	17.7
RVV	0.75*34C	49	0.14	535	18.4
RVV	0.75*35C	49	0.14	547	18.4
RVV	0.75*36C	49	0.14	560	18.4
RVV	0.75*37C	49	0.14	572	18.4
RVV	0.75*38C	49	0.14	588	19.1
