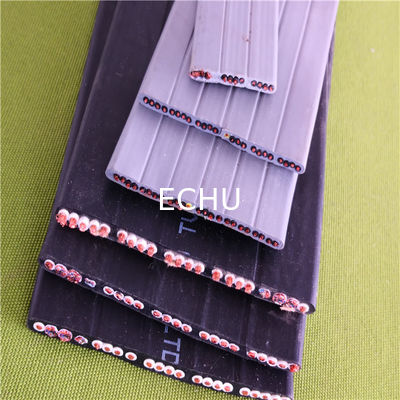

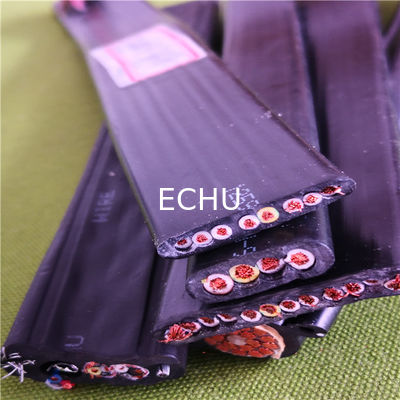

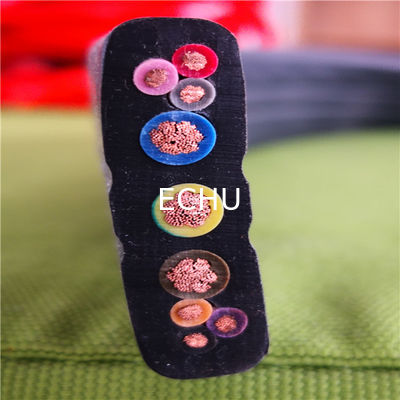

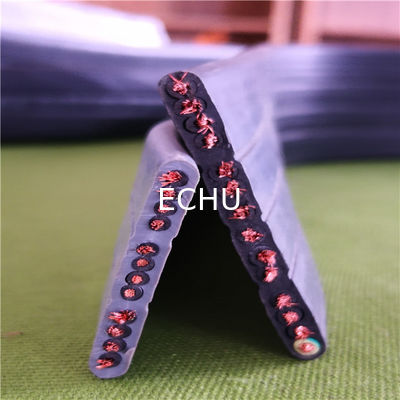

Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket

China Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket supplier
Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket supplier Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket supplier Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket supplier Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket supplier Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket supplier

Large Image :  Flat Flexible Traveling Cable for Crane or Conveyor H07VVH6-F 3*10+6*.25 Black Jacket

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: CE
Model Number: YFFB, H07VVH6-F, H07VVD3H6-F

Payment & Shipping Terms:

Minimum Order Quantity: 300M
Price: USD1.585-USD4.229/M
Packaging Details: plywood Reel
Delivery Time: 10days
Payment Terms: T/T, Western Union..., L/C
Supply Ability: 10000KM/week
Detailed Product Description
Color: Black, Grey, Orange Conductor: Superfine Copper Strands Acc. To VDE0295, Class5
Installation: Flexible/Movable Standard: Acc. To VDE0482, Part265-2-1 Resp. EN50265-2-1 And IEC60332-1
Voltage: 300/500V, 450/750V, 600/1000V Application: As Connecting/control Cable For Cranes And Conveyors

Flat Flexible Traveling Cable for Crane or Conveyor 4Cx1.5sqmm Black Jacket



As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations, crane and other related products
Structure:
Conductor: Superfine copper strands acc. To VDE0295, CLASS 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Colour: Acc. To 227IEC(brown, blue, black, green/yellow)
5cores or more with black number with white digital coding
Sheath: Special PVC, flame retardant and self-extinguishing;
Colour: Black(RAL9005)or grey (RAL7001)
Standard: Acc. To VDE 0482, part 265-2-1 resp. EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage: ≤ 1.5mm 300/500V >1.5mm: 450/750V
Test voltage: ≤ 1.5mm 2500V >1.5mm: 3000V
Mimimum bending radius: 0.3m<L<0.6m
Burning vertically test: GB/T1 8380.1-2001, IEC 60332-1: 1993 test
Passedstandard: GB5023.6, IEC60227-6, EN 50214.
Used under the normal conditions. The temperature of conductor is lower than 70° C
Temperature range: -15° C to +70° C
Cables are reommended for installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s
If it is more than this, with steel.

Type Cores Sections(mm2) width(mm) thickness(mm) Denity(kg/km) Shape
H07VVH6-F 2 1.25 9.0± 1.0 6.2± 0.5 100.5 LINE TYPE
H07VVH6-F 3 1.25 11.9± 1.0 6.2± 0.5 136.7 LINE TYPE
H07VVH6-F 4 1.25 15.8± 1.0 6.2± 0.5 181.6 LINE TYPE
H07VVH6-F 5 1.25 19.7± 1.0 6.2± 0.5 226.6 LINE TYPE
H07VVH6-F 6 1.25 22.6± 1.5 6.2± 0.5 262.8 LINE TYPE
H07VVH6-F 7 1.25 25.5± 1.5 6.2± 0.5 299 LINE TYPE
H07VVH6-F 8 1.25 28.4± 1.5 6.2± 0.5 335.2 LINE TYPE
H07VVH6-F 9 1.25 31.3± 2.0 6.2± 0.5 371.4 LINE TYPE
H07VVH6-F 10 1.25 34.2± 2.0 6.2± 0.5 407.6 LINE TYPE
H07VVH6-F 11 1.25 37.1± 2.0 6.2± 0.5 443.9 LINE TYPE
H07VVH6-F 12 1.25 40.0± 2.0 6.2± 0.5 480.1 LINE TYPE
H07VVH6-F 13 1.25 42.9± 2.0 6.2± 0.5 516.3 LINE TYPE
H07VVH6-F 14 1.25 46.8± 2.0 6.2± 0.5 561.2 LINE TYPE
H07VVH6-F 15 1.25 49.7± 2.0 6.2± 0.5 597.4 LINE TYPE
H07VVH6-F 16 1.25 52.6± 2.0 6.2± 0.5 633.6 LINE TYPE
H07VVH6-F 17 1.25 55.5± 2.0 6.2± 0.5 669.9 LINE TYPE
H07VVH6-F 18 1.25 59.4± 2.0 6.2± 0.5 714.8 LINE TYPE
H07VVH6-F 19 1.25 62.3± 2.5 6.2± 0.5 751 LINE TYPE
H07VVH6-F 20 1.25 65.2± 2.5 6.2± 0.5 787.2 LINE TYPE
H07VVH6-F 2 1.5 9.3± 1.0 5.8± 0.5 111.3 LINE TYPE
H07VVH6-F 3 1.5 12.3± 1.0 5.8± 0.5 148.5 LINE TYPE
H07VVH6-F 4 1.5 16.3± 1.0 5.8± 0.5 193.8 LINE TYPE
H07VVH6-F 5 1.5 20.3± 1.5 5.8± 0.5 239.2 LINE TYPE
H07VVH6-F 6 1.5 23.3± 1.5 5.8± 0.5 276.3 LINE TYPE
H07VVH6-F 7 1.5 26.3± 1.5 5.8± 0.5 313.5 LINE TYPE
H07VVH6-F 8 1.5 29.3± 1.5 5.8± 0.5 350.6 LINE TYPE
H07VVH6-F 9 1.5 32.3± 2.0 5.8± 0.5 387.7 LINE TYPE
H07VVH6-F 10 1.5 35.3± 2.0 5.8± 0.5 424.9 LINE TYPE
H07VVH6-F 11 1.5 38.3± 2.0 5.8± 0.5 462 LINE TYPE
H07VVH6-F 12 1.5 41.3± 2.0 5.8± 0.5 499.2 LINE TYPE
H07VVH6-F 13 1.5 44.3± 2.0 5.8± 0.5 536.3 LINE TYPE
H07VVH6-F 14 1.5 48.3± 2.0 5.8± 0.5 581.7 LINE TYPE
H07VVH6-F 15 1.5 51.3± 2.0 5.8± 0.5 618.8 LINE TYPE
H07VVH6-F 16 1.5 54.3± 2.0 5.8± 0.5 655.9 LINE TYPE
