PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color

China PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color supplier
PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color supplier PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color supplier PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color supplier PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color supplier PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color supplier

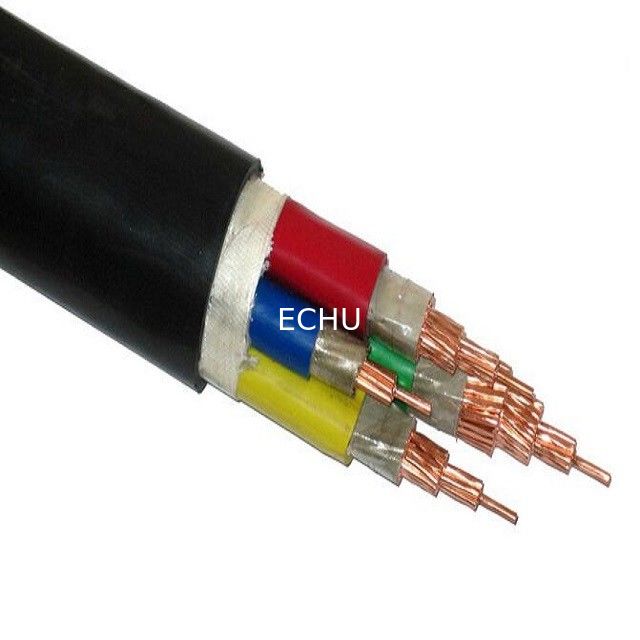

Large Image :  PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: CCC
Model Number: KVV, KVV22

Payment & Shipping Terms:

Minimum Order Quantity: 300M
Price: USD0.21-USD0.598/m
Packaging Details: Splint Reel/Splint BOX
Delivery Time: 10days after receiving deposit
Payment Terms: T/T, Western Union.
Supply Ability: 1000KM/WEEK
Detailed Product Description
Conductor: Bare Copper Insulation: PVC
Jacket: PVC Voltage: -30℃ To +70℃

Flexible Round Control Cable

Control cable

PVC insulated sheathed control cable is worked as control, monitor or protect cable under AC rated voltage 450/750V or less than it.

Rated voltage: 450/750V
Long term working promitted temperature: +70 degree
Cable laying temperature could not lower than 0 degree
Suggestion bending radius:
Without sheathed cable should not less than 6x outer diameter
Sheathed cable or copper shield cable should not less than 12Xouter diameter
Shielded flexible cable should not less than 6x outer diameter
Standard: GB9330
Structure:
Conductor: Oxygen-free bare copper
Insulation: PVC
Color: Black number with digital coding, 3 cores or more with green/yellow earth (optional
Inner liner: Non-woven fabric
Sheath: PVC sheath black (RAL9005) or Grey (RAL7001)
Technical data:
Working temperature:
Flexing Installation: -10 degree to + 70 degree
Fixed Insutallation: -30 degree to +70 degree
Working voltage: 450/750V
Testing voltage: 3000V
 PVC Insulation Steel tape Armoured Control Cable KVV22 8*1.5 450/750V in black color

Type Size Conductor Weight/KM
KVV22 1.0*2C 1 1.13 133.2
KVV22 1.0*3C 1 1.13 153.3
KVV22 1.0*4C 1 1.13 176.7
KVV22 1.0*5C 1 1.13 200.8
KVV22 1.0*6C 1 1.13 225.3
KVV22 1.0*7C 1 1.13 240.7
KVV22 1.0*8C 1 1.13 265.2
KVV22 1.0*9C 1 1.13 292.8
KVV22 1.0*10C 1 1.13 317.4
KVV22 1.0*11C 1 1.13 337.5
KVV22 1.0*12C 1 1.13 352.9
KVV22 1.0*13C 1 1.13 376.2
KVV22 1.0*14C 1 1.13 391.6
KVV22 1.0*15C 1 1.13 415.7
KVV22 1.0*16C 1 1.13 431.1
KVV22 1.0*17C 1 1.13 489.6
KVV22 1.0*18C 1 1.13 505
KVV22 1.0*19C 1 1.13 520.4
KVV22 1.0*20C 1 1.13 541.2
KVV22 1.0*21C 1 1.13 561.7
KVV22 1.0*22C 1 1.13 591.1
KVV22 1.0*23C 1 1.13 616.9
KVV22 1.0*24C 1 1.13 632.3
KVV22 1.0*25C 1 1.13 653.1
KVV22 1.0*26C 1 1.13 668.5
KVV22 1.0*27C 1 1.13 683.9
KVV22 1.0*28C 1 1.13 708.4
KVV22 1.0*29C 1 1.13 723.8
KVV22 1.0*30C 1 1.13 739.2
KVV22 1.0*31C 1 1.13 764.6
KVV22 1.0*32C 1 1.13 780
KVV22 1.0*33C 1 1.13 795.4
KVV22 1.0*34C 1 1.13 821.3
KVV22 1.0*35C 1 1.13 836.7
KVV22 1.0*36C 1 1.13 852.1
KVV22 1.0*37C 1 1.13 934.5
KVV22 1.0*38C 1 1.13 962.4

KVV22 1.5*2C 1 1.38 158.4
KVV22 1.5*3C 1 1.38 186.1
KVV22 1.5*4C 1 1.38 217.7
KVV22 1.5*5C 1 1.38 250.3
KVV22 1.5*6C 1 1.38 283.3
KVV22 1.5*7C 1 1.38 305.5
KVV22 1.5*8C 1 1.38 338.5
KVV22 1.5*9C 1 1.38 375.2
KVV22 1.5*10C 1 1.38 408.2
KVV22 1.5*11C 1 1.38 436
KVV22 1.5*12C 1 1.38 458.1
KVV22 1.5*13C 1 1.38 489.7
KVV22 1.5*14C 1 1.38 511.9
KVV22 1.5*15C 1 1.38 544.4
KVV22 1.5*16C 1 1.38 566.6
KVV22 1.5*17C 1 1.38 637.8
KVV22 1.5*18C 1 1.38 660
KVV22 1.5*19C 1 1.38 682.1
KVV22 1.5*20C 1 1.38 710.7
KVV22 1.5*21C 1 1.38 738.9
KVV22 1.5*22C 1 1.38 777.7
KVV22 1.5*23C 1 1.38 812.3
KVV22 1.5*24C 1 1.38 834.5
KVV22 1.5*25C 1 1.38 863
KVV22 1.5*26C 1 1.38 885.2
KVV22 1.5*27C 1 1.38 907.3
KVV22 1.5*28C 1 1.38 940.3
KVV22 1.5*29C 1 1.38 962.5
KVV22 1.5*30C 1 1.38 984.6
KVV22 1.5*31C 1 1.38 1018.7
KVV22 1.5*32C 1 1.38 1040.8
KVV22 1.5*33C 1 1.38 1063
KVV22 1.5*34C 1 1.38 1097.6
KVV22 1.5*35C 1 1.38 1119.8
KVV22 1.5*36C 1 1.38 1142
KVV22 1.5*37C 1 1.38 1240
KVV22 1.5*38C 1 1.38 1277

KVV22 2.5*2C 1 1.78 198.2
KVV22 2.5*3C 1 1.78 239.3
KVV22 2.5*4C 1 1.78 285
KVV22 2.5*5C 1 1.78 331.9
KVV22 2.5*6C 1 1.78 379.4
KVV22 2.5*7C 1 1.78 413.7
KVV22 2.5*8C 1 1.78 461.2
KVV22 2.5*9C 1 1.78 513.1
KVV22 2.5*10C 1 1.78 560.6
KVV22 2.5*11C 1 1.78 601.7
KVV22 2.5*12C 1 1.78 636
KVV22 2.5*13C 1 1.78 681.7
KVV22 2.5*14C 1 1.78 716
KVV22 2.5*15C 1 1.78 762.9
KVV22 2.5*16C 1 1.78 797.2
KVV22 2.5*17C 1 1.78 888.5
KVV22 2.5*18C 1 1.78 922.8
KVV22 2.5*19C 1 1.78 957.1
KVV22 2.5*20C 1 1.78 999.2
KVV22 2.5*21C 1 1.78 1040.8
KVV22 2.5*22C 1 1.78 1095.3
KVV22 2.5*23C 1 1.78 1144.7
KVV22 2.5*24C 1 1.78 1179
KVV22 2.5*25C 1 1.78 1221
KVV22 2.5*26C 1 1.78 1255.3
KVV22 2.5*27C 1 1.78 1289.6
KVV22 2.5*28C 1 1.78 1337
KVV22 2.5*29C 1 1.78 1371.3
KVV22 2.5*30C 1 1.78 1405.6
KVV22 2.5*31C 1 1.78 1454.3
KVV22 2.5*32C 1 1.78 1488.6
KVV22 2.5*33C 1 1.78 1522.9
KVV22 2.5*34C 1 1.78 1572.4
KVV22 2.5*35C 1 1.78 1606.7
KVV22 2.5*36C 1 1.78 1641
KVV22 2.5*37C 1 1.78 1763
KVV22 2.5*38C 1 1.78 1815.2
