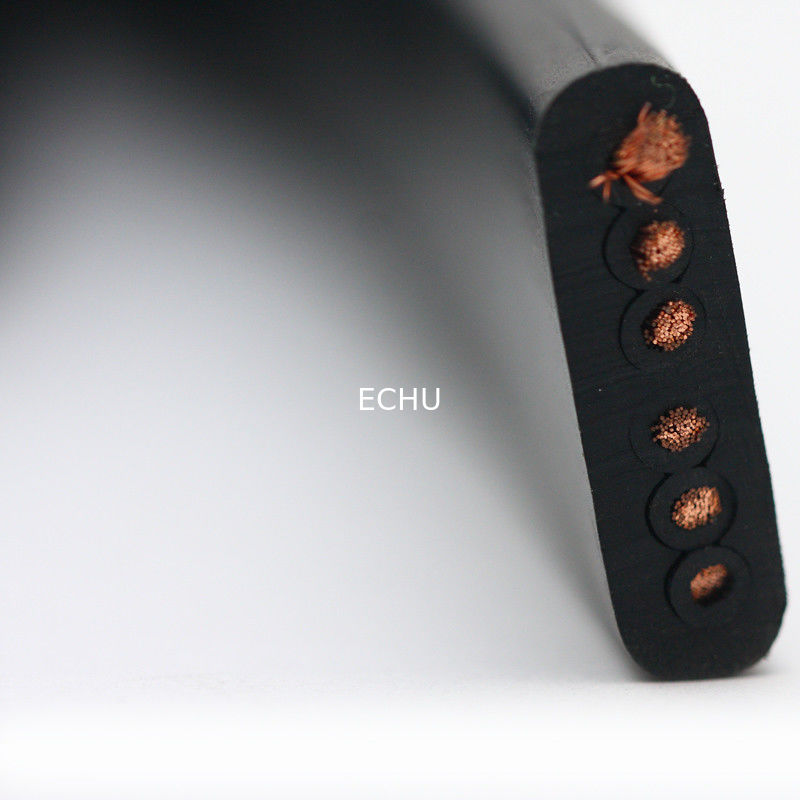

Flat Flexible Traveling Cable for Crane or Conveyor in Black Jacket 450/750V

Brand Name:	ECHU
Model Number:	YFFB, H07VVH6-F, H07VVD3H6-F
MOQ:	300M
Price:	USD0.225-USD20.298/M
Payment Terms:	T/T, Western Union
Supply Ability:	10000KM/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Black, Grey, Orange

Conductor:

Superfine Copper Strands Acc. To VDE0295, Class5

Installation:

Flexible/Movable

Standard:

Acc. To VDE0482, Part265-2-1 Resp. EN50265-2-1 And IEC60332-1

Voltage:

300/500V, 450/750V, 600/1000V

Application:

As Connecting/control Cable For Cranes And Conveyors

Packaging Details:

plywood Reel

Product Description

Flat Flexible Traveling Cable for Crane or Conveyor 4Cx25sqmm Black Jacket

As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations, crane and other related products
Structure:
Conductor: Superfine copper strands acc. To VDE0295, CLASS 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Colour: Acc. To 227IEC(brown, blue, black, green/yellow)
5cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber; Resistant to oil, flame retardant and self-extinguishing;
Colour: Black(RAL9005)or grey (RAL7001)
Standard: Acc. To VDE 0482, part 265-2-1 resp. EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage: ≤ 1.5mm 300/500V >1.5mm: 450/750V
Test voltage: ≤ 1.5mm 2500V >1.5mm: 3000V
Mimimum bending radius: 0.3m<L<0.6m
Burning vertically test: GB/T1 8380.1-2001, IEC 60332-1: 1993 test
Passedstandard: GB5023.6, IEC60227-6, EN 50214.
Used under the normal conditions. The temperature of conductor is lower than 70° C
Temperature range: -15° C to +70° C
Cables are reommended for installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s
If it is more than this, with steel.

Size 2 to 60cores or more, size 0.5sqmm to 400sqmm.....

Type	Cores	Sections(mm2)	width(mm)	thickness(mm)	Denity(kg/km)	Shape
YFFB	2	1.25	9.0± 1.0	6.2± 0.5	100.5	LINE TYPE
YFFB	3	1.25	11.9± 1.0	6.2± 0.5	136.7	LINE TYPE
YFFB	4	1.25	15.8± 1.0	6.2± 0.5	181.6	LINE TYPE
YFFB	5	1.25	19.7± 1.0	6.2± 0.5	226.6	LINE TYPE
YFFB	6	1.25	22.6± 1.5	6.2± 0.5	262.8	LINE TYPE
YFFB	7	1.25	25.5± 1.5	6.2± 0.5	299	LINE TYPE
YFFB	8	1.25	28.4± 1.5	6.2± 0.5	335.2	LINE TYPE
YFFB	9	1.25	31.3± 2.0	6.2± 0.5	371.4	LINE TYPE
YFFB	10	1.25	34.2± 2.0	6.2± 0.5	407.6	LINE TYPE
YFFB	11	1.25	37.1± 2.0	6.2± 0.5	443.9	LINE TYPE
YFFB	12	1.25	40.0± 2.0	6.2± 0.5	480.1	LINE TYPE
YFFB	13	1.25	42.9± 2.0	6.2± 0.5	516.3	LINE TYPE
YFFB	14	1.25	46.8± 2.0	6.2± 0.5	561.2	LINE TYPE
YFFB	15	1.25	49.7± 2.0	6.2± 0.5	597.4	LINE TYPE
YFFB	16	1.25	52.6± 2.0	6.2± 0.5	633.6	LINE TYPE
YFFB	17	1.25	55.5± 2.0	6.2± 0.5	669.9	LINE TYPE
YFFB	18	1.25	59.4± 2.0	6.2± 0.5	714.8	LINE TYPE
YFFB	19	1.25	62.3± 2.5	6.2± 0.5	751	LINE TYPE
YFFB	20	1.25	65.2± 2.5	6.2± 0.5	787.2	LINE TYPE
YFFB	2	1.5	9.3± 1.0	5.8± 0.5	111.3	LINE TYPE
YFFB	3	1.5	12.3± 1.0	5.8± 0.5	148.5	LINE TYPE
YFFB	4	1.5	16.3± 1.0	5.8± 0.5	193.8	LINE TYPE
YFFB	5	1.5	20.3± 1.5	5.8± 0.5	239.2	LINE TYPE
YFFB	6	1.5	23.3± 1.5	5.8± 0.5	276.3	LINE TYPE
YFFB	7	1.5	26.3± 1.5	5.8± 0.5	313.5	LINE TYPE
YFFB	8	1.5	29.3± 1.5	5.8± 0.5	350.6	LINE TYPE
YFFB	9	1.5	32.3± 2.0	5.8± 0.5	387.7	LINE TYPE
YFFB	10	1.5	35.3± 2.0	5.8± 0.5	424.9	LINE TYPE
YFFB	11	1.5	38.3± 2.0	5.8± 0.5	462	LINE TYPE
YFFB	12	1.5	41.3± 2.0	5.8± 0.5	499.2	LINE TYPE
YFFB	13	1.5	44.3± 2.0	5.8± 0.5	536.3	LINE TYPE
YFFB	14	1.5	48.3± 2.0	5.8± 0.5	581.7	LINE TYPE
YFFB	15	1.5	51.3± 2.0	5.8± 0.5	618.8	LINE TYPE
YFFB	16	1.5	54.3± 2.0	5.8± 0.5	655.9	LINE TYPE
