Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G) in black color

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G) in black color

China Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G)  in black color supplier
Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G)  in black color supplier Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G)  in black color supplier Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G)  in black color supplier

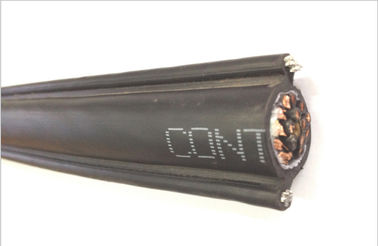

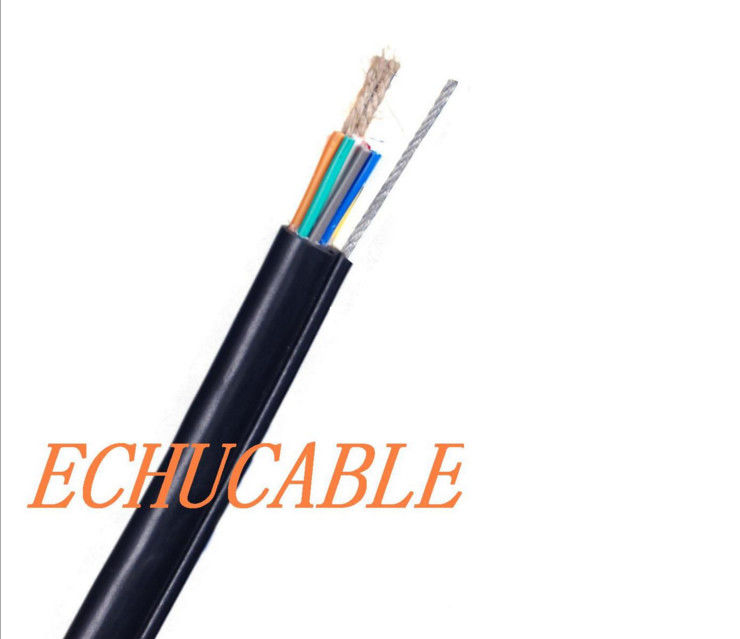

Large Image :  Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G) in black color

Product Details:

Place of Origin: Shanghai, China
Brand Name: ECHU
Model Number: RVV(1G), RVV(2G)

Payment & Shipping Terms:

Minimum Order Quantity: 300Meter
Price: USD0.126-USD0.886/m
Packaging Details: splint reel/wooden box
Delivery Time: 10days after receiving payment
Payment Terms: T/T, Western Union.., L/C
Supply Ability: 100000km/week
Detailed Product Description
Color: Black Volotage: 300/500V, 450/750V
Bending Radius: 20xouter Diameter Out Shealth: Special PVC

Pendant Crane Cable from Factory
Applications:
It is the control cable being used for cranes and other appliances in dry or wet environment (indoor). For its special flexibility, it also can be used for non-continuous installation or fixation, but cannot work as elevator cables. Juted insulated cable rope among cores functions as tensile resistance, there is non-woven fabric to release impact between cores and sheath.
Properties:
In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4KN and the height 150m.
For the adoption of modified PVC sheath, the product has an excellent properties and safety service.
Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295, class 5
Color: Various colour cores with number acc. To JISC3306
Black with white number and green/yellow acc. To IEC227
Inner liner: Non-woven fabric wrapping to release impact
Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.
Outer sheath: Special PVC, black(RAL9005)
Technical data:
Rated voltage: 1.5mm 450/750V
Test voltage: 1.5mm 3000V
Temperature range: -15 degree to +70 degree; (or -40 degree to 105 degree)

Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G)  in black colorFlexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G)  in black colorFlexible Round Traveling Control Cable for cranes or other appliances RVV(1G)/RVV(2G)  in black color

TYPE
CORES

SPECIFICATION

STEEL NO.

STEEL DIAMETER mm

WEIGHT(KG/KM)

MEASUREMENTmm

RVV(2G)

2C

1.25

2

1.3

175

17.3

RVV(2G)

3C

1.25

2

1.3

192

17.8

RVV(2G)

4C

1.25

2

1.3

221

18.7

RVV(2G)

5C

1.25

2

1.3

253

19.7

RVV(2G)

6C

1.25

2

1.3

287

20.7

RVV(2G)

7C

1.25

2

1.6

329

24

RVV(2G)

8C

1.25

2

1.6

369

25.4

RVV(2G)

9C

1.25

2

1.6

410

26.4

RVV(2G)

10C

1.25

2

1.6

445

26.4

RVV(2G)

11C

1.25

2

1.6

481

26.9

RVV(2G)

12C

1.25

2

1.6

489

26.9

RVV(2G)

13C

1.25

2

1.6

534

27.8

RVV(2G)

14C

1.25

2

1.6

542

27.8

RVV(2G)

15C

1.25

2

1.6

590

28.8

RVV(2G)

16C

1.25

2

2.5

639

30.9

RVV(2G)

17C

1.25

2

2.5

690

31.9

RVV(2G)

18C

1.25

2

2.5

698

31.9

RVV(2G)

19C

1.25

2

2.5

719

31.9

RVV(2G)

20C

1.25

2

2.5

744

32.4

RVV(2G)

21C

1.25

2

2.5

780

32.9

RVV(2G)

22C

1.25

2

2.5

877

34.3

RVV(2G)

23C

1.25

2

2.5

896

35.3

RVV(2G)

24C

1.25

2

2.5

902

35.3

RVV(2G)

25C

1.25

2

2.5

940

35.9

RVV(2G)

26C

1.25

2

2.5

960

35.9

RVV(2G)

27C

1.25

2

2.5

969

35.9

RVV(2G)

28C

1.25

2

2.5

1019

36.7

RVV(2G)

29C

1.25

2

2.5

1028

36.7

RVV(2G)

30C

1.25

2

2.5

1048

36.7

RVV(2G)

2C

1.5

2

1.3

189

17.4

RVV(2G)

3C

1.5

2

1.3

207

17.9

RVV(2G)

4C

1.5

2

1.3

239

18.8

RVV(2G)

5C

1.5

2

1.3

276

19.8

RVV(2G)

6C

1.5

2

1.3

315

20.9

RVV(2G)

7C

1.5

2

2.5

403

26.3

RVV(2G)

8C

1.5

2

2.5

452

27.7

RVV(2G)

9C

1.5

2

2.5

502

28.7

RVV(2G)

10C

1.5

2

2.5

536

28.7

RVV(2G)

11C

1.5

2

2.5

575

29.3

RVV(2G)

12C

1.5

2

2.5

582

29.3

RVV(2G)

13C

1.5

2

2.5

634

30.2

RVV(2G)

14C

1.5

2

2.5

640

30.2

RVV(2G)

15C

1.5

2

2.5

698

31.2

RVV(2G)

16C

1.5

2

2.5

704

31.2

RVV(2G)

17C

1.5

2

2.5

765

32.2

RVV(2G)

18C

1.5

2

2.5

772

32.2

RVV(2G)

19C

1.5

2

2.5

791

32.2

RVV(2G)

20C

1.5

2

2.5

820

32.7

RVV(2G)

21C

1.5

2

2.5

861

33.2

RVV(2G)

22C

1.5

2

2.5

976

34.6

RVV(2G)

23C

1.5

2

2.5

1006

35.7

RVV(2G)

24C

1.5

2

2.5

1010

35.7

RVV(2G)

25C

1.5

2

2.5

1054

36.2

RVV(2G)

26C

1.5

2

2.5

1073

36.2

RVV(2G)

27C

1.5

2

2.5

1080

36.2

RVV(2G)

28C

1.5

2

2.5

1141

37.1

RVV(2G)

29C

1.5

2

2.5

1149

37.1

RVV(2G)

30C

1.5

2

2.5

1168

37.1
