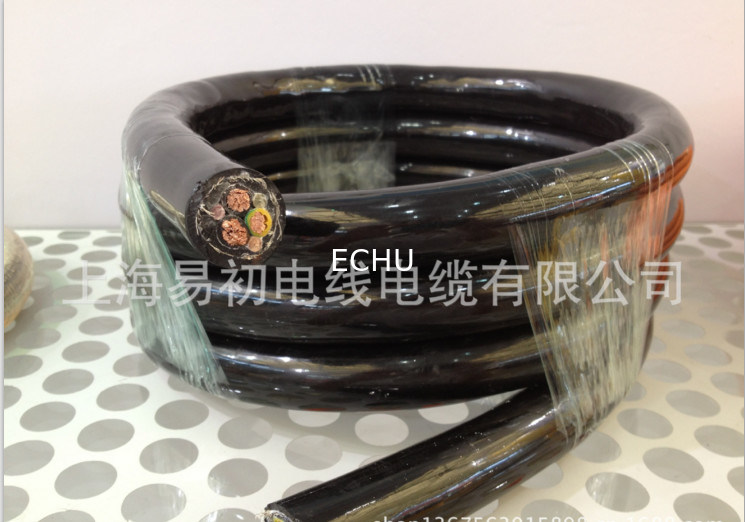

Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color

China Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color supplier
Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color supplier Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color supplier Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color supplier Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color supplier

Large Image :  Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: CE
Model Number: EKM71900, EKM71973

Payment & Shipping Terms:

Minimum Order Quantity: 200M
Price: $0.158-$0.998/M
Packaging Details: plywood reel
Delivery Time: within 10days
Payment Terms: T/T, Western Union.., L/C
Supply Ability: 10000km/week
Detailed Product Description
Bending For Life: Above 3,500,000 Times Properties: Oil Resistance, Cool Resistance,abrasion Resistance, Flame Resistance, Anti-ultravoiolet
Insulation: Special PVC Jacket: PUR
Installation: Movable Flame Retardant: Meet IEC60332-1-2+EN60332-1-2

Flexible Drag Chain Cable

Applications:
It is suitable for day or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyor system, crane and other related equipments.

Properties:
Waterproofing, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet
Bending life: About 3, 500, 000 times

Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295 CLASS6
Insulation: Special PVC
Color: ≤ 0.5mm brown, black, blue, purple, pink, orange
≥ 0.5mm cores black with consecutive white numbering
3 cores or more with green/ yellow earth wire
Sheath: PUR

Black (RAL9005) or grey (RAL7001),Orange (RAL2003)
Related voltage: SQ<0.5mm2: 300/300V
SQ>0.5mm2: 300/500V
Test voltage: 2000V

Temperature range:
Fixed Installation: -30 ℃---+90℃

Flexing Installation: -20 ℃---+90℃

The minimum bending radius: Fixed: 5xD
Moved: When travel < 10m, bending radius is 8xD
When travel > 10m, bending radius is 10xD



Type Size Weight KG/KM OD. Down mm OD Up mm
EKM 71900 0.14*2C 23.8 3.6 4
EKM 71900 0.14*3C 29.1 4.0 4.5
EKM 71900 0.14*4C 35.3 4.4 4.9
EKM 71900 0.14*5C 41.9 4.8 5.3
EKM 71900 0.14*6C 48.6 5.1 5.6
EKM 71900 0.14*7C 55.4 5.4 5.9
EKM 71900 0.14*8C 63.3 5.9 6.4
EKM 71900 0.14*9C 70.4 6.2 6.7
EKM 71900 0.14*10C 77.1 6.9 7.4
EKM 71900 0.14*11C 88.4 7.7 8.2
EKM 71900 0.14*12C 92.7 7.7 8.2
EKM 71900 0.14*13C 96.9 7.7 8.2
EKM 71900 0.14*14C 107.6 8.5 9.3
EKM 71900 0.14*15C 111.9 8.5 9.3
EKM 71900 0.14*16C 116.2 8.5 9.3
EKM 71900 0.14*17C 127.6 9.3 10.1
EKM 71900 0.14*18C 131.8 9.3 10.1
EKM 71900 0.14*19C 136 9.3 10.1
EKM 71900 0.14*20C 140.9 9.3 10.1
EKM 71900 0.14*21C 145.1 9.3 10.1
EKM 71900 0.14*22C 149.4 9.3 10.1
EKM 71900 0.14*23C 162.3 10.2 11.0
EKM 71900 0.14*24C 166.5 10.2 11.0
EKM 71900 0.14*25C 170.8 10.2 11.0
EKM 71900 0.14*26C 175 10.2 11.0
EKM 71900 0.14*27C 188.5 11.1 11.9
EKM 71900 0.14*28C 192.7 11.1 11.9
EKM 71900 0.14*29C 196.9 11.1 11.9
EKM 71900 0.14*30C 202.9 11.3 12.1
EKM 71900 0.14*31C 207.2 11.3 12.1
EKM 71900 0.14*32C 211.4 11.3 12.1
EKM 71900 0.14*33C 215.6 11.3 12.1
EKM 71900 0.14*34C 231 12.2 13.0
EKM 71900 0.14*35C 235.2 12.2 13.0
EKM 71900 0.14*36C 240.7 12.3 13.1
EKM 71900 0.14*37C 244.9 12.3 13.1
EKM 71900 0.14*38C 249.2 12.3 13.1

EKM 71900 0.2*2C 26.1 4.0 4.4
EKM 71900 0.2*3C 32.3 4.4 4.8
EKM 71900 0.2*4C 39.4 4.8 5.2
EKM 71900 0.2*5C 46.9 5.2 5.6
EKM 71900 0.2*6C 54.6 5.6 6.0
EKM 71900 0.2*7C 62.4 6.0 6.4
EKM 71900 0.2*8C 71.3 6.6 7.0
EKM 71900 0.2*9C 79.4 7.0 7.8
EKM 71900 0.2*10C 87.1 7.4 8.2
EKM 71900 0.2*11C 99.8 8.3 9.1
EKM 71900 0.2*12C 104.8 8.3 9.1
EKM 71900 0.2*13C 109.8 8.3 9.1
EKM 71900 0.2*14C 121.8 9.1 9.9
EKM 71900 0.2*15C 126.8 9.1 9.9
EKM 71900 0.2*16C 131.9 9.1 9.9
EKM 71900 0.2*17C 144.7 10.0 10.8
EKM 71900 0.2*18C 149.7 10.0 10.8
EKM 71900 0.2*19C 154.7 10.0 10.8
EKM 71900 0.2*20C 160.4 10.1 10.9
EKM 71900 0.2*21C 165.4 10.1 10.9
EKM 71900 0.2*22C 170.3 10.1 10.9
EKM 71900 0.2*23C 184.8 11.0 12.0
EKM 71900 0.2*24C 189.8 11.0 12.0
EKM 71900 0.2*25C 194.8 11.0 12.0
EKM 71900 0.2*26C 199.8 11.0 12.0
EKM 71900 0.2*27C 214.9 12.0 13.0
EKM 71900 0.2*28C 219.9 12.0 13.0
EKM 71900 0.2*29C 224.9 12.0 13.0
EKM 71900 0.2*30C 231.8 12.1 13.1
EKM 71900 0.2*31C 236.8 12.1 13.1
EKM 71900 0.2*32C 241.8 12.1 13.1
EKM 71900 0.2*33C 246.7 12.1 13.1
EKM 71900 0.2*34C 263.9 13.2 14.2
EKM 71900 0.2*35C 268.9 13.2 14.2
EKM 71900 0.2*36C 275.3 13.3 14.3
EKM 71900 0.2*37C 280.3 13.3 14.3
EKM 71900 0.2*38C 285.3 13.3 14.3

EKM 71900 0.25*2C 27 4.2 4.5
EKM 71900 0.25*3C 33 4.5 4.8
EKM 71900 0.25*4C 41 4.9 5.2
EKM 71900 0.25*5C 49 5.3 5.6
EKM 71900 0.25*6C 57 5.8 6.1
EKM 71900 0.25*7C 65 6.2 6.5
EKM 71900 0.25*8C 74 6.8 7.1
EKM 71900 0.25*9C 82 7.2 7.6
EKM 71900 0.25*10C 90 7.6 8.0
EKM 71900 0.25*11C 105 8.8 9.2
EKM 71900 0.25*12C 111 8.8 9.2
EKM 71900 0.25*13C 116 8.8 9.2
EKM 71900 0.25*14C 129 9.7 10.1
EKM 71900 0.25*15C 134 9.7 10.1
EKM 71900 0.25*16C 139 9.7 10.1
EKM 71900 0.25*17C 153 10.6 11.4
EKM 71900 0.25*18C 158 10.6 11.4
EKM 71900 0.25*19C 164 10.6 11.4
EKM 71900 0.25*20C 170 10.7 11.5
EKM 71900 0.25*21C 175 10.7 11.5
EKM 71900 0.25*22C 180 10.7 11.5
EKM 71900 0.25*23C 196 11.7 12.5
EKM 71900 0.25*24C 201 11.7 12.5
EKM 71900 0.25*25C 206 11.7 12.5
EKM 71900 0.25*26C 211 11.7 12.5
EKM 71900 0.25*27C 227 12.8 13.6
EKM 71900 0.25*28C 233 12.8 13.6
EKM 71900 0.25*29C 238 12.8 13.6
EKM 71900 0.25*30C 245 12.9 13.8
EKM 71900 0.25*31C 251 12.9 13.8
EKM 71900 0.25*32C 256 12.9 13.8
EKM 71900 0.25*33C 261 12.9 13.8
EKM 71900 0.25*34C 280 14.1 15.0
EKM 71900 0.25*35C 285 14.1 15.0
EKM 71900 0.25*36C 292 14.2 15.1

EKM 71900 0.3*2C 30.3 4.3 4.7
EKM 71900 0.3*3C 38.1 4.6 5.1
EKM 71900 0.3*4C 46.9 5.0 5.5
EKM 71900 0.3*5C 56 5.4 5.9
EKM 71900 0.3*6C 65.5 5.9 6.4
EKM 71900 0.3*7C 75 6.4 6.9
EKM 71900 0.3*8C 85.9 7.0 7.5
EKM 71900 0.3*9C 95.8 7.4 7.9
EKM 71900 0.3*10C 105.3 7.9 8.4
EKM 71900 0.3*11C 120.5 8.9 9.8
EKM 71900 0.3*12C 126.8 8.9 9.8
EKM 71900 0.3*13C 133.2 8.9 9.8
EKM 71900 0.3*14C 147.7 9.8 11.1
EKM 71900 0.3*15C 154.1 9.8 11.1
EKM 71900 0.3*16C 171.7 10.0 11.0
EKM 71900 0.3*17C 176 10.7 11.7
EKM 71900 0.3*18C 182.3 10.7 11.7
EKM 71900 0.3*19C 188.7 10.7 11.7
EKM 71900 0.3*20C 195.9 10.8 11.8
EKM 71900 0.3*21C 202.2 10.8 11.8
EKM 71900 0.3*22C 208.6 10.8 11.8
EKM 71900 0.3*23C 225.9 11.8 12.8
EKM 71900 0.3*24C 232.3 11.8 12.8
EKM 71900 0.3*25C 238.7 11.8 12.8
EKM 71900 0.3*26C 245 11.8 12.8
EKM 71900 0.3*27C 263.1 12.8 13.8
EKM 71900 0.3*28C 269.5 12.8 13.8
EKM 71900 0.3*29C 275.9 12.8 13.8
EKM 71900 0.3*30C 284.5 13.0 14.0
EKM 71900 0.3*31C 290.8 13.0 14.0
EKM 71900 0.3*32C 297.2 13.0 14.0
EKM 71900 0.3*33C 303.6 13.0 14.0
EKM 71900 0.3*34C 324.1 14.2 15.2
EKM 71900 0.3*35C 330.4 14.2 15.2
EKM 71900 0.3*36C 338.4 14.3 15.3
EKM 71900 0.3*37C 344.8 14.3 15.3
EKM 71900 0.3*38C 351.2 14.3 15.3

EKM 71900 0.34*2C 31 4.5 5.0
EKM 71900 0.34*3C 39 4.8 5.3
EKM 71900 0.34*4C 48 5.2 5.7
EKM 71900 0.34*5C 58 5.7 6.2
EKM 71900 0.34*6C 67 6.2 6.7
EKM 71900 0.34*7C 77 6.7 7.2
EKM 71900 0.34*8C 89 7.3 7.8
EKM 71900 0.34*9C 99 7.8 8.3
EKM 71900 0.34*10C 109 8.2 8.7
EKM 71900 0.34*11C 124 9.4 9.9
EKM 71900 0.34*12C 131 9.4 9.9
EKM 71900 0.34*13C 138 9.4 9.9
EKM 71900 0.34*14C 152 10.3 11.1
EKM 71900 0.34*15C 159 10.3 11.1
EKM 71900 0.34*16C 177 11.3 12.1
EKM 71900 0.34*17C 182 11.3 12.1
EKM 71900 0.34*18C 188 11.3 12.1
EKM 71900 0.34*19C 195 11.3 12.1
EKM 71900 0.34*20C 203 11.4 12.2
EKM 71900 0.34*21C 209 11.4 12.2
EKM 71900 0.34*22C 216 11.4 12.2
EKM 71900 0.34*23C 234 12.6 13.4
EKM 71900 0.34*24C 240 12.6 13.4
EKM 71900 0.34*25C 247 12.6 13.4
EKM 71900 0.34*26C 254 12.6 13.4
EKM 71900 0.34*27C 272 13.7 14.5
EKM 71900 0.34*28C 279 13.7 14.5
EKM 71900 0.34*29C 286 13.7 14.5
EKM 71900 0.34*30C 295 13.9 14.7
EKM 71900 0.34*31C 301 13.9 14.7
EKM 71900 0.34*32C 308 13.9 14.7
EKM 71900 0.34*33C 315 13.9 14.7
EKM 71900 0.34*34C 336 15.2 16.4
EKM 71900 0.34*35C 342 15.2 16.4
EKM 71900 0.34*36C 351 15.3 16.5
EKM 71900 0.34*37C 357 15.3 16.5
EKM 71900 0.34*38C 364 15.3 16.5

EKM 71900 0.4*2C 35.9 4.6 5.2
EKM 71900 0.4*3C 45.5 5.0 5.6
EKM 71900 0.4*4C 56.3 5.4 6.0
EKM 71900 0.4*5C 67.6 5.8 6.4
EKM 71900 0.4*6C 79.2 6.3 6.9
EKM 71900 0.4*7C 91 7.0 7.6
EKM 71900 0.4*8C 104.4 7.6 8.2
EKM 71900 0.4*9C 116.6 8.2 8.8
EKM 71900 0.4*10C 128.4 8.6 9.2
EKM 71900 0.4*11C 146.9 10.0 10.8
EKM 71900 0.4*12C 154.9 10.0 10.8
EKM 71900 0.4*13C 162.9 10.0 10.8
EKM 71900 0.4*14C 180.7 11.0 11.8
EKM 71900 0.4*15C 188.7 11.0 11.8
EKM 71900 0.4*16C 196.9 11.1 11.9
EKM 71900 0.4*17C 215.8 12.1 12.9
EKM 71900 0.4*18C 223.7 12.1 12.9
EKM 71900 0.4*19C 231.7 12.1 12.9
EKM 71900 0.4*20C 240.7 12.2 13.0
EKM 71900 0.4*21C 248.6 12.2 13.0
EKM 71900 0.4*22C 256.6 12.2 13.0
EKM 71900 0.4*23C 278 13.4 14.4
EKM 71900 0.4*24C 286 13.4 14.4
EKM 71900 0.4*25C 293.9 13.4 14.4
EKM 71900 0.4*26C 301.9 13.4 14.4
EKM 71900 0.4*27C 324.2 14.6 15.6
EKM 71900 0.4*28C 332.2 14.6 15.6
EKM 71900 0.4*29C 340.2 14.6 15.6
EKM 71900 0.4*30C 350.9 14.8 15.8
EKM 71900 0.4*31C 358.9 14.8 15.8
EKM 71900 0.4*32C 366.8 14.8 15.8
EKM 71900 0.4*33C 374.8 14.8 15.8
EKM 71900 0.4*34C 400.1 16.2 17.2
EKM 71900 0.4*35C 408.1 16.2 17.2
EKM 71900 0.4*36C 418.1 16.3 17.3
EKM 71900 0.4*37C 426 16.3 17.3
EKM 71900 0.4*38C 434 16.3 17.3

EKM 71900 0.5*2C 40 5.2 5.7
EKM 71900 0.5*3C 51.1 5.5 6.0
EKM 71900 0.5*4C 63.6 6.0 6.5
EKM 71900 0.5*5C 76.5 6.6 7.1
EKM 71900 0.5*6C 89.9 7.1 7.6
EKM 71900 0.5*7C 103.4 7.7 8.2
EKM 71900 0.5*8C 118.7 8.5 9.0
EKM 71900 0.5*9C 132.7 9.1 9.6
EKM 71900 0.5*10C 146.2 9.6 10.1
EKM 71900 0.5*11C 167.3 11.2 12.0
EKM 71900 0.5*12C 176.7 11.2 12.0
EKM 71900 0.5*13C 186 11.2 12.0
EKM 71900 0.5*14C 206.3 12.3 13.1
EKM 71900 0.5*15C 215.6 12.3 13.1
EKM 71900 0.5*16C 225.2 12.3 13.1
EKM 71900 0.5*17C 246.6 13.5 14.3
EKM 71900 0.5*18C 256 13.5 14.3
EKM 71900 0.5*19C 265.3 13.5 14.3
EKM 71900 0.5*20C 275.8 13.6 14.4
EKM 71900 0.5*21C 285.1 13.6 14.4
EKM 71900 0.5*22C 294.5 13.6 14.4
EKM 71900 0.5*23C 318.7 15.0 16.2
EKM 71900 0.5*24C 328 15.0 16.2
EKM 71900 0.5*25C 337.4 15.0 16.2
EKM 71900 0.5*26C 346.7 15.0 16.2
EKM 71900 0.5*27C 372 16.4 17.6
EKM 71900 0.5*28C 381.3 16.4 17.6
EKM 71900 0.5*29C 390.7 16.4 17.6
EKM 71900 0.5*30C 403.1 16.6 17.8
EKM 71900 0.5*31C 412.5 16.6 17.8
EKM 71900 0.5*32C 421.8 16.6 17.8
EKM 71900 0.5*33C 431.2 16.6 17.8
EKM 71900 0.5*34C 459.8 18.1 19.3
EKM 71900 0.5*35C 469.1 18.1 19.3
EKM 71900 0.5*36C 480.7 18.3 19.5
EKM 71900 0.5*37C 490.1 18.3 19.5
EKM 71900 0.5*38C 499.4 18.3 19.5

EKM 71900 0.75*2C 48.9 5.6 6.1
EKM 71900 0.75*3C 63.4 6.0 6.5
EKM 71900 0.75*4C 79.6 6.6 7.1
EKM 71900 0.75*5C 96.3 7.2 7.7
EKM 71900 0.75*6C 113.4 7.8 8.3
EKM 71900 0.75*7C 130.8 8.5 9.0
EKM 71900 0.75*8C 150.3 9.4 9.9
EKM 71900 0.75*9C 168.3 10.0 10.8
EKM 71900 0.75*10C 185.8 10.6 11.4
EKM 71900 0.75*11C 212.2 12.3 13.1
EKM 71900 0.75*12C 224.7 12.3 13.1
EKM 71900 0.75*13C 237.1 12.3 13.1
EKM 71900 0.75*14C 262.7 13.6 14.4
EKM 71900 0.75*15C 275.1 13.6 14.4
EKM 71900 0.75*16C 287.8 13.6 14.4
EKM 71900 0.75*17C 314.8 15.0 16.2
EKM 71900 0.75*18C 327.2 15.0 16.2
EKM 71900 0.75*19C 339.7 15.0 16.2
EKM 71900 0.75*20C 353.5 15.1 16.3
EKM 71900 0.75*21C 365.9 15.1 16.3
EKM 71900 0.75*22C 378.4 15.1 16.3
EKM 71900 0.75*23C 408.7 16.6 17.8
EKM 71900 0.75*24C 421.2 16.6 17.8
EKM 71900 0.75*25C 433.7 16.6 17.8
EKM 71900 0.75*26C 446.1 16.6 17.8
EKM 71900 0.75*27C 477.8 18.1 19.3
EKM 71900 0.75*28C 490.3 18.1 19.3
EKM 71900 0.75*29C 502.7 18.1 19.3
EKM 71900 0.75*30C 518.9 18.4 19.6
EKM 71900 0.75*31C 531.3 18.4 19.6
EKM 71900 0.75*32C 543.8 18.4 19.6
EKM 71900 0.75*33C 556.2 18.4 19.6
EKM 71900 0.75*34C 592 20.1 21.8
EKM 71900 0.75*35C 604.5 20.1 21.8
EKM 71900 0.75*36C 619.6 20.3 22.0
EKM 71900 0.75*37C 632.1 20.3 22.0
EKM 71900 0.75*38C 644.6 20.3 22.0

EKM 71900 1.0*2C 68.4 6.1 6.6
EKM 71900 1.0*3C 84.6 6.5 7.0
EKM 71900 1.0*4C 104.5 7.1 7.6
EKM 71900 1.0*5C 125.6 7.8 8.3
EKM 71900 1.0*6C 147.3 8.5 9.0
EKM 71900 1.0*7C 168.9 9.3 9.8
EKM 71900 1.0*8C 193.4 10.2 11.0
EKM 71900 1.0*9C 217.5 11.0 11.8
EKM 71900 1.0*10C 243 11.6 12.4
EKM 71900 1.0*11C 277.3 13.6 14.4
EKM 71900 1.0*12C 290 13.6 14.4
EKM 71900 1.0*13C 308.8 13.6 14.4
EKM 71900 1.0*14C 336.7 15.0 16.2
EKM 71900 1.0*15C 356 15.0 16.2
EKM 71900 1.0*16C 369 15.0 16.2
EKM 71900 1.0*17C 405.6 16.5 17.7
EKM 71900 1.0*18C 418.3 16.5 17.7
EKM 71900 1.0*19C 434.1 16.5 17.7
EKM 71900 1.0*20C 450.3 16.6 17.8
EKM 71900 1.0*21C 468.1 16.6 17.8
EKM 71900 1.0*22C 497.7 16.6 17.8
EKM 71900 1.0*23C 529.5 18.3 19.5
EKM 71900 1.0*24C 541.4 18.3 19.5
EKM 71900 1.0*25C 559.2 18.3 19.5
EKM 71900 1.0*26C 575 18.3 19.5
EKM 71900 1.0*27C 610.7 20.0 21.7
EKM 71900 1.0*28C 629.5 20.0 21.7
EKM 71900 1.0*29C 642.4 20.0 21.7
EKM 71900 1.0*30C 662.6 20.3 22.0
EKM 71900 1.0*31C 680.8 20.3 22.0
EKM 71900 1.0*32C 696.6 20.3 22.0
EKM 71900 1.0*33C 712.4 20.3 22.0
EKM 71900 1.0*34C 756.1 22.2 23.9
EKM 71900 1.0*35C 771.9 22.2 23.9
EKM 71900 1.0*36C 791 22.4 24.1
EKM 71900 1.0*37C 806.8 22.4 24.1
EKM 71900 1.0*38C 822.7 22.4 24.1

EKM 71900 1.5*2C 99.3 7.5 8.0
EKM 71900 1.5*3C 122.8 8 8.5
EKM 71900 1.5*4C 152.1 8.8 9.3
EKM 71900 1.5*5C 183.2 9.7 10.2
EKM 71900 1.5*6C 215.4 10.6 11.4
EKM 71900 1.5*7C 247.4 11.6 12.4
EKM 71900 1.5*8C 283.7 12.8 13.6
EKM 71900 1.5*9C 320 13.8 14.6
EKM 71900 1.5*10C 358.5 14.6 15.4
EKM 71900 1.5*11C 410.3 17 18.2
EKM 71900 1.5*12C 428.5 17 18.2
EKM 71900 1.5*13C 456.7 17 18.2
EKM 71900 1.5*14C 498.3 18.8 20.0
EKM 71900 1.5*15C 527.4 18.8 20.0
EKM 71900 1.5*16C 546 18.9 20.1
EKM 71900 1.5*17C 601.8 20.8 22.5
EKM 71900 1.5*18C 619.9 20.8 22.5
EKM 71900 1.5*19C 643.3 20.8 22.5
EKM 71900 1.5*20C 667.1 20.9 22.6
EKM 71900 1.5*21C 693.8 20.9 22.6
EKM 71900 1.5*22C 739.9 20.9 22.6
EKM 71900 1.5*23C 787.5 23.1 24.8
EKM 71900 1.5*24C 804.4 23.1 24.8
EKM 71900 1.5*25C 831 23.1 24.8
EKM 71900 1.5*26C 854.4 23.1 24.8
EKM 71900 1.5*27C 908.4 25.2 26.9
EKM 71900 1.5*28C 936.8 25.2 26.9
EKM 71900 1.5*29C 955.2 25.2 26.9
EKM 71900 1.5*30C 985.5 25.6 27.3
EKM 71900 1.5*31C 999.6 25.6 27.3
EKM 71900 1.5*32C 1023 25.6 27.3
EKM 71900 1.5*33C 1046.4 25.6 27.3
EKM 71900 1.5*34C 1113.3 28 29.7
EKM 71900 1.5*35C 1136.7 28 29.7
EKM 71900 1.5*36C 1165.2 28.3 30.0
EKM 71900 1.5*37C 1188.6 28.3 30.0
EKM 71900 1.5*38C 1211.9 28.3 30.0

EKM 71900 2.0*2C 156.1 9.1 9.6
EKM 71900 2.0*3C 193 9.7 10.2
EKM 71900 2.0*4C 239.6 10.7 11.3
EKM 71900 2.0*5C 289.2 11.8 12.5
EKM 71900 2.0*6C 340.8 12.9 13.8
EKM 71900 2.0*7C 392.1 14.1 15.0
EKM 71900 2.0*8C 450.5 15.6 16.7
EKM 71900 2.0*9C 509.2 16.7 17.9
EKM 71900 2.0*10C 572.2 17.7 19.0
EKM 71900 2.0*11C 609.4 17.3 18.6
EKM 71900 2.0*12C 637.5 17.3 18.6
EKM 71900 2.0*13C 698.4 18.3 19.7
EKM 71900 2.0*14C 726 18.3 19.7
EKM 71900 2.0*15C 790.9 19.4 20.9
EKM 71900 2.0*16C 818.9 19.4 20.9
EKM 71900 2.0*17C 885.8 20.6 22.1
EKM 71900 2.0*18C 913.8 20.6 22.1
EKM 71900 2.0*19C 961.3 21.2 22.8
EKM 71900 2.0*20C 1004.9 21.7 23.4
EKM 71900 2.0*21C 1076 23.3 25.0
EKM 71900 2.0*22C 1175.9 24.4 26.3
EKM 71900 2.0*23C 1197.7 24.4 26.3
EKM 71900 2.0*24C 1223.5 24.4 26.3
EKM 71900 2.0*25C 1278.3 25 26.9
EKM 71900 2.0*26C 1315.6 25 26.9
EKM 71900 2.0*27C 1344 25 26.9
EKM 71900 2.0*28C 1410.5 26 28.0
EKM 71900 2.0*29C 1439.1 26 28.0
EKM 71900 2.0*30C 1476.5 26 28.0
EKM 71900 2.0*31C 1511.6 27.4 29.6
EKM 71900 2.0*32C 1549 27.4 29.6
EKM 71900 2.0*33C 1586.4 27.4 29.6
EKM 71900 2.0*34C 1649 28.6 30.8
EKM 71900 2.0*35C 1686.4 28.6 30.8
EKM 71900 2.0*36C 1723.8 28.6 30.8
EKM 71900 2.0*37C 1761.2 28.6 30.8
EKM 71900 2.0*38C 1824.7 29.7 32.1

EKM 71900 2.5*2C 172.3 10 10.8
EKM 71900 2.5*3C 213.4 10.7 11.5
EKM 71900 2.5*4C 265.3 11.9 12.7
EKM 71900 2.5*5C 320.5 13.1 13.9
EKM 71900 2.5*6C 378 14.5 15.3
EKM 71900 2.5*7C 435.1 15.8 17.0
EKM 71900 2.5*8C 500 17.5 18.7
EKM 71900 2.5*9C 565.3 18.9 20.1
EKM 71900 2.5*10C 635.5 20 21.2
EKM 71900 2.5*11C 677.3 19.5 20.7
EKM 71900 2.5*12C 708.8 19.5 20.7
EKM 71900 2.5*13C 776.6 20.7 22.4
EKM 71900 2.5*14C 807.6 20.7 22.4
EKM 71900 2.5*15C 879.8 21.9 23.6
EKM 71900 2.5*16C 911.2 21.9 23.6
EKM 71900 2.5*17C 985.7 23.3 25.0
EKM 71900 2.5*18C 1017.1 23.3 25.0
EKM 71900 2.5*19C 1070.1 24 25.7
EKM 71900 2.5*20C 1118.8 24.6 26.3
EKM 71900 2.5*21C 1197.9 26.4 28.1
EKM 71900 2.5*22C 1309.1 27.7 29.4
EKM 71900 2.5*23C 1333.5 27.7 29.4
EKM 71900 2.5*24C 1362.5 27.7 29.4
EKM 71900 2.5*25C 1423.6 28.4 30.1
EKM 71900 2.5*26C 1465.4 28.4 30.1
EKM 71900 2.5*27C 1497.2 28.4 30.1
EKM 71900 2.5*28C 1571.3 29.5 31.2
EKM 71900 2.5*29C 1603.3 29.5 31.2
EKM 71900 2.5*30C 1645.2 29.5 31.2
EKM 71900 2.5*31C 1674.5 30.8 32.5
EKM 71900 2.5*32C 1716.3 30.8 32.5
EKM 71900 2.5*33C 1758.1 30.8 32.5
EKM 71900 2.5*34C 1827.6 32.1 33.8
EKM 71900 2.5*35C 1869.4 32.1 33.8
EKM 71900 2.5*36C 1911.3 32.1 33.8
EKM 71900 2.5*37C 1953.1 32.1 33.8
EKM 71900 2.5*38C 2023.6 33.4 35.1

EKM 71900 4.0*2C 235.9 11.4 12.2
EKM 71900 4.0*3C 296.4 12.2 13.0
EKM 71900 4.0*4C 364.8 13.4 14.2
EKM 71900 4.0*5C 450.1 15 16.2
EKM 71900 4.0*6C 532.1 16.5 17.7
EKM 71900 4.0*7C 613.5 18.1 19.3
EKM 71900 4.0*8C 705.2 20.1 21.8
EKM 71900 4.0*9C 797.8 21.6 23.3
EKM 71900 4.0*10C 897 23 24.7
EKM 71900 4.0*11C 959.1 22.4 24.1
EKM 71900 4.0*12C 1007.1 22.4 24.1
EKM 71900 4.0*13C 1103.1 23.8 25.5
EKM 71900 4.0*14C 1150.3 23.8 25.5
EKM 71900 4.0*15C 1252.2 25.2 26.9
EKM 71900 4.0*16C 1300.1 25.2 26.9
EKM 71900 4.0*17C 1404.9 26.8 28.5
EKM 71900 4.0*18C 1452.8 26.8 28.5
EKM 71900 4.0*19C 1529.2 27.5 29.2
EKM 71900 4.0*20C 1599.8 28.3 30.0
EKM 71900 4.0*21C 1710.5 30.3 32.0
EKM 71900 4.0*22C 1864.6 31.9 33.6
EKM 71900 4.0*23C 1903.1 31.9 33.6
EKM 71900 4.0*24C 1947.8 31.9 33.6
EKM 71900 4.0*25C 2035 32.6 34.3
EKM 71900 4.0*26C 2096.9 32.6 34.3
EKM 71900 4.0*27C 2145.4 32.6 34.3
EKM 71900 4.0*28C 2249.8 34 35.7
EKM 71900 4.0*29C 2298.5 34 35.7
EKM 71900 4.0*30C 2360.4 34 35.7
EKM 71900 4.0*31C 2378.8 35.4 37.1
EKM 71900 4.0*32C 2440.7 35.4 37.1
EKM 71900 4.0*33C 2502.6 35.4 37.1

EKM 71900 6.0*2C 315.3 12.8 13.6
EKM 71900 6.0*3C 401.6 13.7 14.5
EKM 71900 6.0*4C 505.8 15.2 16.4
EKM 71900 6.0*5C 615.6 16.9 18.1
EKM 71900 6.0*6C 729.2 18.6 19.8
EKM 71900 6.0*7C 842.1 20.4 22.1
EKM 71900 6.0*8C 968 22.7 24.4
EKM 71900 6.0*9C 1095.2 24.4 26.1
EKM 71900 6.0*10C 1231.1 25.9 27.6
EKM 71900 6.0*11C 1320.1 25.3 27.0
EKM 71900 6.0*12C 1390.7 25.3 27.0
EKM 71900 6.0*13C 1522.4 26.8 28.5
EKM 71900 6.0*14C 1592 26.8 28.5
EKM 71900 6.0*15C 1731.3 28.5 30.2
EKM 71900 6.0*16C 1801.6 28.5 30.2
EKM 71900 6.0*17C 1944.8 30.2 31.9
EKM 71900 6.0*18C 2015.2 30.2 31.9
EKM 71900 6.0*19C 2121.9 31.1 32.8
EKM 71900 6.0*20C 2221.3 32 33.7
EKM 71900 6.0*21C 2371.7 34.3 36.0
EKM 71900 6.0*22C 2578.3 36 37.7
EKM 71900 6.0*23C 2636.6 36 37.7
EKM 71900 6.0*24C 2702.8 36 37.7

EKM 71900 8.0*2C 422.1 14.9 16.1
EKM 71900 8.0*3C 538 16 17.2
EKM 71900 8.0*4C 678.4 17.8 19.0
EKM 71900 8.0*5C 826.5 19.7 20.9
EKM 71900 8.0*6C 979.8 21.8 23.5
EKM 71900 8.0*7C 1132.1 23.8 25.5
EKM 71900 8.0*8C 1302.1 26.6 28.3
EKM 71900 8.0*9C 1436.1 26.6 28.3
EKM 71900 8.0*10C 1623.7 28.6 30.3
EKM 71900 8.0*11C 1779.7 29.7 31.4
EKM 71900 8.0*12C 1874.4 29.7 31.4
EKM 71900 8.0*13C 2053.2 31.4 33.1
EKM 71900 8.0*14C 2146.5 31.4 33.1
EKM 71900 8.0*15C 2335.6 33.4 35.1
EKM 71900 8.0*16C 2430 33.4 35.1
EKM 71900 8.0*17C 2624.4 35.5 37.2
EKM 71900 8.0*18C 2718.9 35.5 37.2
EKM 71900 8.0*19C 2838.5 35.5 37.2

EKM 71900 10.0*2C 511.5 16.5 17.7
EKM 71900 10.0*3C 651.1 17.7 18.9
EKM 71900 10.0*4C 821.1 19.7 20.9
EKM 71900 10.0*5C 1000.7 21.9 23.1
EKM 71900 10.0*6C 1186.8 24.2 25.4
EKM 71900 10.0*7C 1371.6 26.5 28.2
EKM 71900 10.0*8C 1578.2 29.6 31.3
EKM 71900 10.0*9C 1741 29.6 31.3
EKM 71900 10.0*10C 1970 31.9 33.6
EKM 71900 10.0*11C 2159.9 33 34.7
EKM 71900 10.0*12C 2273.5 33 34.7

EKM 71900 16.0*2C 745.6 19.6 20.8
EKM 71900 16.0*3C 958 21 22.2
EKM 71900 16.0*4C 1213.4 23.4 24.6
EKM 71900 16.0*5C 1482.3 26 27.7
EKM 71900 16.0*6C 1760.3 28.7 30.4
EKM 71900 16.0*7C 2036.5 31.5 33.2

EKM 71900 25.0*2C 1139.1 23.9 25.4
EKM 71900 25.0*3C 1466.1 25.0 27.2
EKM 71900 25.0*4C 1859.6 28.0 30.2
EKM 71900 25.0*5C 2237 30.4 32.9

EKM 71900 35.0*2C 1209 26.4 28.4
EKM 71900 35.0*3C 1707 28.4 30.4
EKM 71900 35.0*4C 2237 31.8 33.8

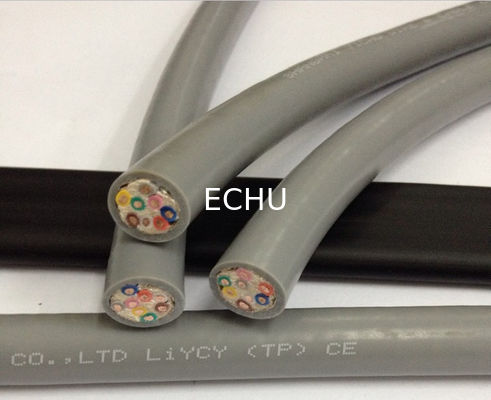

Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color

Type Pairs Size Weight/KM OD mm
TRVVSP 2 1.5*2C 181.3 12
TRVVSP 3 1.5*2C 238.8 13.9
TRVVSP 4 1.5*2C 303.9 15.8
TRVVSP 5 1.5*2C 372.1 17.4
TRVVSP 6 1.5*2C 444.5 19.9
TRVVSP 7 1.5*2C 517.3 19.9
TRVVSP 8 1.5*2C 601.0 23.0
TRVVSP 9 1.5*2C 677.9 25.6
TRVVSP 10 1.5*2C 741.4 26.5
TRVVSP 11 1.5*2C 789.5 26.5
TRVVSP 12 1.5*2C 864.7 27.5
TRVVSP 13 1.5*2C 912.7 28.1
TRVVSP 14 1.5*2C 992.2 29.5
TRVVSP 15 1.5*2C 1040.2 29.5
TRVVSP 16 1.5*2C 1122.9 30.5

Special PUR Cable for Drag Chains EKM71900 for machine or equipments bending frequently in grey/black/orange Color

Contact Details
ECHU Special Wire & Cable (Kunshan) Co., Ltd.

Contact Person: Ms. Emma Zou

Tel: 86-150-21712369

Fax: 86-150-21712369

Send your inquiry directly to us (0 / 3000)
