Bending For Life: | Above 3,500,000 Times | Properties: | Oil Resistance, Cool Resistance,abrasion Resistance, Flame Resistance, Anti-ultravoiolet |
---|---|---|---|
Insulation: | Special PVC | Jacket: | Special PVC |
Installation: | Movable | Flame Retardant: | Meet IEC60332-1-2+EN60332-1-2 |

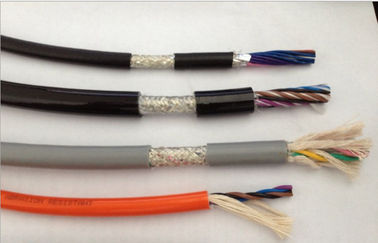

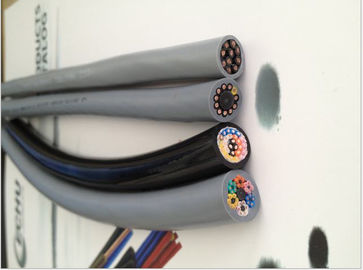

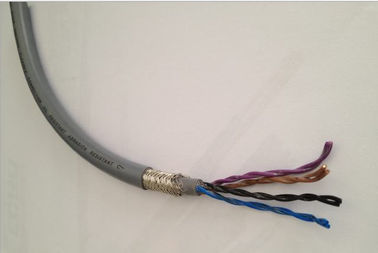

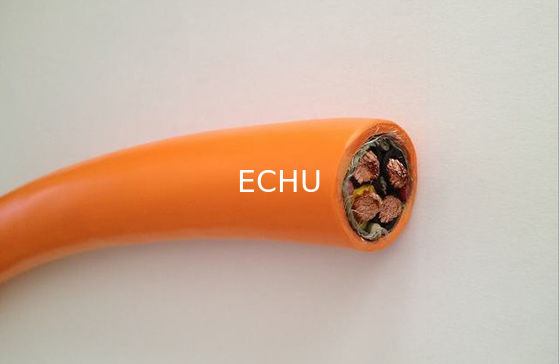

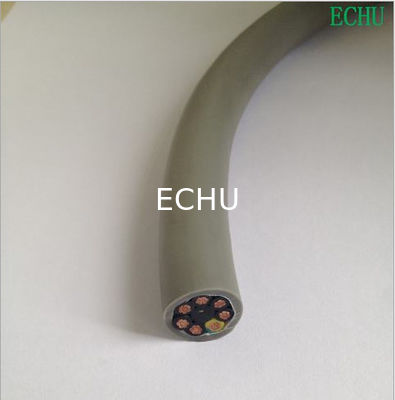

Flexible Drag Chain Cable
Applications:
It is suitable for day or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyor system, crane and other related equipments.
Properties:
Waterproofing, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet
Bending life: About 3, 500, 000 times
Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295 CLASS6
Insulation: Special PVC
Color: ≤ 0.5mm brown, black, blue, purple, pink, orange
≥ 0.5mm cores black with consecutive white numbering
3 cores or more with green/ yellow earth wire
Sheath: Special PVC
Black (RAL9005) or grey (RAL7001),Orange (RAL2003)
Related voltage: SQ<0.5mm2: 300/300V
SQ>0.5mm2: 300/500V
Test voltage: 2000V
Temperature range:
Fixed Installation: -30 ℃---+70℃
Flexing Installation: -20 ℃---+70℃
The minimum bending radius: Fixed: 5xD
Moved: When travel < 10m, bending radius is 8xD
When travel > 10m, bending radius is 10xD
Type | Size | Weight KG/KM | O.D.(mm) |
TRVV | 0.10*2C | 25.7 | 4.4 |
TRVV | 0.10*3C | 29.8 | 4.6 |
TRVV | 0.10*4C | 34.7 | 4.9 |
TRVV | 0.10*5C | 40.0 | 5.2 |
TRVV | 0.10*6C | 47.1 | 5.6 |
TRVV | 0.10*7C | 54.6 | 6.0 |
TRVV | 0.10*8C | 64.2 | 6.6 |
TRVV | 0.10*9C | 72.9 | 7.0 |
TRVV | 0.10*10C | 81.0 | 7.4 |
TRVV | 0.10*11C | 90.4 | 8.3 |
TRVV | 0.10*12C | 93.9 | 8.3 |
TRVV | 0.10*13C | 97.5 | 8.3 |
TRVV | 0.10*14C | 110.0 | 9.1 |
TRVV | 0.10*15C | 113.6 | 9.1 |
TRVV | 0.10*16C | 117.3 | 9.1 |
TRVV | 0.10*17C | 132.2 | 10.0 |
TRVV | 0.10*18C | 135.7 | 10.0 |
TRVV | 0.10*19C | 139.3 | 10.0 |
TRVV | 0.10*20C | 142.4 | 10.1 |
TRVV | 0.10*21C | 145.9 | 10.1 |
TRVV | 0.10*22C | 149.5 | 10.1 |
TRVV | 0.10*23C | 167.1 | 11.0 |
TRVV | 0.10*24C | 170.6 | 11.0 |
TRVV | 0.10*25C | 174.2 | 11.0 |
TRVV | 0.10*26C | 177.7 | 11.0 |
TRVV | 0.10*27C | 197.5 | 12.0 |
TRVV | 0.10*28C | 201.0 | 12.0 |
TRVV | 0.10*29C | 204.6 | 12.0 |
TRVV | 0.10*30C | 208.2 | 12.1 |
TRVV | 0.10*31C | 211.7 | 12.1 |
TRVV | 0.10*32C | 215.3 | 12.1 |
TRVV | 0.10*33C | 218.8 | 12.1 |
TRVV | 0.10*34C | 242.2 | 13.2 |
TRVV | 0.10*35C | 245.8 | 13.2 |
TRVV | 0.10*36C | 232.6 | 13.3 |
TRVV | 0.10*37C | 236.2 | 13.3 |
TRVV | 0.10*38C | 239.8 | 13.3 |
TRVV | 0.10*39C | 307.3 | 14.6 |
TRVV | 0.10*40C | 298.4 | 14.6 |
TRVV | 0.14*2C | 26.3 | 4.4 |
TRVV | 0.14*3C | 30.7 | 4.6 |
TRVV | 0.14*4C | 36.0 | 4.9 |
TRVV | 0.14*5C | 41.6 | 5.2 |
TRVV | 0.14*6C | 49.0 | 5.6 |
TRVV | 0.14*7C | 56.9 | 6.0 |
TRVV | 0.14*8C | 66.8 | 6.6 |
TRVV | 0.14*9C | 75.8 | 7.0 |
TRVV | 0.14*10C | 84.2 | 7.4 |
TRVV | 0.14*11C | 93.9 | 8.3 |
TRVV | 0.14*12C | 97.8 | 8.3 |
TRVV | 0.14*13C | 101.7 | 8.3 |
TRVV | 0.14*14C | 114.5 | 9.1 |
TRVV | 0.14*15C | 118.4 | 9.1 |
TRVV | 0.14*16C | 122.4 | 9.1 |
TRVV | 0.14*17C | 137.6 | 10.0 |
TRVV | 0.14*18C | 141.5 | 10.0 |
TRVV | 0.14*19C | 145.4 | 10.0 |
TRVV | 0.14*20C | 148.8 | 10.1 |
TRVV | 0.14*21C | 152.7 | 10.1 |
TRVV | 0.14*22C | 156.6 | 10.1 |
TRVV | 0.14*23C | 174.5 | 11.0 |
TRVV | 0.14*24C | 178.3 | 11.0 |
TRVV | 0.14*25C | 182.2 | 11.0 |
TRVV | 0.14*26C | 186.1 | 11.0 |
TRVV | 0.14*27C | 206.2 | 12.0 |
TRVV | 0.14*28C | 210.0 | 12.0 |
TRVV | 0.14*29C | 213.9 | 12.0 |
TRVV | 0.14*30C | 217.8 | 12.1 |
TRVV | 0.14*31C | 221.7 | 12.1 |
TRVV | 0.14*32C | 225.6 | 12.1 |
TRVV | 0.14*33C | 229.5 | 12.1 |
TRVV | 0.14*34C | 253.2 | 13.2 |
TRVV | 0.14*35C | 257.0 | 13.2 |
TRVV | 0.14*36C | 244.2 | 13.3 |
TRVV | 0.14*37C | 248.1 | 13.3 |
TRVV | 0.14*38C | 252.0 | 13.3 |
TRVV | 0.14*39C | 319.8 | 14.6 |
TRVV | 0.14*40C | 311.2 | 14.6 |
TRVV | 0.20*2C | 29.2 | 4.6 |
TRVV | 0.20*3C | 34.4 | 4.8 |
TRVV | 0.20*4C | 39.9 | 5.1 |
TRVV | 0.20*5C | 47.9 | 5.5 |
TRVV | 0.20*6C | 56.7 | 6.0 |
TRVV | 0.20*7C | 66.0 | 6.4 |
TRVV | 0.20*8C | 77.6 | 7.0 |
TRVV | 0.20*9C | 88.1 | 7.5 |
TRVV | 0.20*10C | 98.1 | 7.8 |
TRVV | 0.20*11C | 109.5 | 8.9 |
TRVV | 0.20*12C | 114.2 | 8.9 |
TRVV | 0.20*13C | 119.0 | 8.9 |
TRVV | 0.20*14C | 134.0 | 9.8 |
TRVV | 0.20*15C | 138.7 | 9.8 |
TRVV | 0.20*16C | 143.6 | 9.8 |
TRVV | 0.20*17C | 161.4 | 10.7 |
TRVV | 0.20*18C | 166.1 | 10.7 |
TRVV | 0.20*19C | 170.8 | 10.7 |
TRVV | 0.20*20C | 175.0 | 10.8 |
TRVV | 0.20*21C | 179.7 | 10.8 |
TRVV | 0.20*22C | 184.4 | 10.8 |
TRVV | 0.20*23C | 205.3 | 11.8 |
TRVV | 0.20*24C | 210.1 | 11.8 |
TRVV | 0.20*25C | 214.8 | 11.8 |
TRVV | 0.20*26C | 219.5 | 11.8 |
TRVV | 0.20*27C | 243.0 | 12.8 |
TRVV | 0.20*28C | 247.7 | 12.8 |
TRVV | 0.20*29C | 252.4 | 12.8 |
TRVV | 0.20*30C | 257.1 | 13.0 |
TRVV | 0.20*31C | 261.9 | 13.0 |
TRVV | 0.20*32C | 266.6 | 13.0 |
TRVV | 0.20*33C | 271.3 | 13.0 |
TRVV | 0.20*34C | 299.0 | 14.2 |
TRVV | 0.20*35C | 303.7 | 14.2 |
TRVV | 0.20*36C | 288.8 | 14.3 |
TRVV | 0.20*37C | 293.6 | 14.3 |
TRVV | 0.20*38C | 298.3 | 14.3 |
TRVV | 0.20*39C | 377.7 | 15.7 |
TRVV | 0.20*40C | 367.8 | 15.7 |
TRVV | 0.25*2C | 32.9 | 4.9 |
TRVV | 0.25*3C | 39.7 | 5.2 |
TRVV | 0.25*4C | 48.2 | 5.6 |
TRVV | 0.25*5C | 58.3 | 6.1 |
TRVV | 0.25*6C | 69.3 | 6.7 |
TRVV | 0.25*7C | 81.0 | 7.2 |
TRVV | 0.25*8C | 95.8 | 7.9 |
TRVV | 0.25*9C | 109.2 | 8.4 |
TRVV | 0.25*10C | 121.8 | 8.8 |
TRVV | 0.25*11C | 136.3 | 10.0 |
TRVV | 0.25*12C | 142.2 | 10.0 |
TRVV | 0.25*13C | 148.1 | 10.0 |
TRVV | 0.25*14C | 167.2 | 11.1 |
TRVV | 0.25*15C | 173.1 | 11.1 |
TRVV | 0.25*16C | 179.3 | 11.1 |
TRVV | 0.25*17C | 202.0 | 12.1 |
TRVV | 0.25*18C | 208.0 | 12.1 |
TRVV | 0.25*19C | 213.9 | 12.1 |
TRVV | 0.25*20C | 219.1 | 12.2 |
TRVV | 0.25*21C | 225.0 | 12.2 |
TRVV | 0.25*22C | 230.9 | 12.2 |
TRVV | 0.25*23C | 257.7 | 13.4 |
TRVV | 0.25*24C | 263.7 | 13.4 |
TRVV | 0.25*25C | 269.6 | 13.4 |
TRVV | 0.25*26C | 275.6 | 13.4 |
TRVV | 0.25*27C | 305.8 | 14.6 |
TRVV | 0.25*28C | 311.7 | 14.6 |
TRVV | 0.25*29C | 317.7 | 14.6 |
TRVV | 0.25*30C | 323.5 | 14.8 |
TRVV | 0.25*31C | 329.4 | 14.8 |
TRVV | 0.25*32C | 335.3 | 14.8 |
TRVV | 0.25*33C | 341.3 | 14.8 |
TRVV | 0.25*34C | 377.0 | 16.2 |
TRVV | 0.25*35C | 383.0 | 16.2 |
TRVV | 0.25*36C | 362.7 | 16.3 |
TRVV | 0.25*37C | 368.6 | 16.3 |
TRVV | 0.25*38C | 374.6 | 16.3 |
TRVV | 0.25*39C | 479.0 | 18.0 |
TRVV | 0.25*40C | 465.5 | 18.0 |
TRVV | 0.3*2C | 34.9 | 5.0 |
TRVV | 0.3*3C | 42.4 | 5.3 |
TRVV | 0.3*4C | 51.6 | 5.8 |
TRVV | 0.3*5C | 62.6 | 6.3 |
TRVV | 0.3*6C | 74.5 | 6.8 |
TRVV | 0.3*7C | 87.1 | 7.4 |
TRVV | 0.3*8C | 103.0 | 8.1 |
TRVV | 0.3*9C | 117.5 | 8.6 |
TRVV | 0.3*10C | 131.2 | 9.1 |
TRVV | 0.3*11C | 146.7 | 10.3 |
TRVV | 0.3*12C | 153.3 | 10.3 |
TRVV | 0.3*13C | 159.8 | 10.3 |
TRVV | 0.3*14C | 180.3 | 11.4 |
TRVV | 0.3*15C | 186.9 | 11.4 |
TRVV | 0.3*16C | 193.6 | 11.4 |
TRVV | 0.3*17C | 218.0 | 12.5 |
TRVV | 0.3*18C | 224.6 | 12.5 |
TRVV | 0.3*19C | 231.2 | 12.5 |
TRVV | 0.3*20C | 236.9 | 12.6 |
TRVV | 0.3*21C | 243.4 | 12.6 |
TRVV | 0.3*22C | 250.0 | 12.6 |
TRVV | 0.3*23C | 278.7 | 13.8 |
TRVV | 0.3*24C | 285.3 | 13.8 |
TRVV | 0.3*25C | 291.8 | 13.8 |
TRVV | 0.3*26C | 298.4 | 13.8 |
TRVV | 0.3*27C | 330.7 | 15.0 |
TRVV | 0.3*28C | 337.3 | 15.0 |
TRVV | 0.3*29C | 343.9 | 15.0 |
TRVV | 0.3*30C | 350.2 | 15.3 |
TRVV | 0.3*31C | 356.8 | 15.3 |
TRVV | 0.3*32C | 363.4 | 15.3 |
TRVV | 0.3*33C | 369.9 | 15.3 |
TRVV | 0.3*34C | 408.2 | 16.7 |
TRVV | 0.3*35C | 414.7 | 16.7 |
TRVV | 0.3*36C | 393.3 | 16.8 |
TRVV | 0.3*37C | 399.9 | 16.8 |
TRVV | 0.3*38C | 406.5 | 16.8 |
TRVV | 0.3*39C | 518.0 | 18.5 |
TRVV | 0.3*40C | 503.8 | 18.5 |
TRVV | 0.4*2C | 37.7 | 5.1 |
TRVV | 0.4*3C | 46.3 | 5.4 |
TRVV | 0.4*4C | 56.6 | 5.9 |
TRVV | 0.4*5C | 68.8 | 6.4 |
TRVV | 0.4*6C | 82.0 | 7.0 |
TRVV | 0.4*7C | 96.0 | 7.6 |
TRVV | 0.4*8C | 113.4 | 8.3 |
TRVV | 0.4*9C | 129.4 | 8.9 |
TRVV | 0.4*10C | 144.5 | 9.3 |
TRVV | 0.4*11C | 161.6 | 10.6 |
TRVV | 0.4*12C | 169.1 | 10.6 |
TRVV | 0.4*13C | 176.7 | 10.6 |
TRVV | 0.4*14C | 199.0 | 11.7 |
TRVV | 0.4*15C | 206.6 | 11.7 |
TRVV | 0.4*16C | 214.4 | 11.7 |
TRVV | 0.4*17C | 240.8 | 12.8 |
TRVV | 0.4*18C | 248.4 | 12.8 |
TRVV | 0.4*19C | 256.0 | 12.8 |
TRVV | 0.4*20C | 262.7 | 12.9 |
TRVV | 0.4*21C | 270.2 | 12.9 |
TRVV | 0.4*22C | 277.8 | 12.9 |
TRVV | 0.4*23C | 308.9 | 14.2 |
TRVV | 0.4*24C | 316.4 | 14.2 |
TRVV | 0.4*25C | 324.0 | 14.2 |
TRVV | 0.4*26C | 331.6 | 14.2 |
TRVV | 0.4*27C | 366.5 | 15.5 |
TRVV | 0.4*28C | 374.1 | 15.5 |
TRVV | 0.4*29C | 381.7 | 15.5 |
TRVV | 0.4*30C | 389.0 | 15.7 |
TRVV | 0.4*31C | 396.6 | 15.7 |
TRVV | 0.4*32C | 404.2 | 15.7 |
TRVV | 0.4*33C | 411.8 | 15.7 |
TRVV | 0.4*34C | 453.0 | 17.1 |
TRVV | 0.4*35C | 460.6 | 17.1 |
TRVV | 0.4*36C | 438.3 | 17.3 |
TRVV | 0.4*37C | 445.9 | 17.3 |
TRVV | 0.4*38C | 453.5 | 17.3 |
TRVV | 0.4*39C | 572.7 | 19.0 |
TRVV | 0.4*40C | 558.2 | 19.0 |
TRVV | 0.5*2C | 47.4 | 5.8 |
TRVV | 0.5*3C | 58.5 | 6.2 |
TRVV | 0.5*4C | 72.1 | 6.8 |
TRVV | 0.5*5C | 88.1 | 7.4 |
TRVV | 0.5*6C | 105.5 | 8.0 |
TRVV | 0.5*7C | 124.1 | 8.7 |
TRVV | 0.5*8C | 147.4 | 9.6 |
TRVV | 0.5*9C | 168.6 | 10.3 |
TRVV | 0.5*10C | 188.9 | 10.8 |
TRVV | 0.5*11C | 211.6 | 12.3 |
TRVV | 0.5*12C | 221.6 | 12.3 |
TRVV | 0.5*13C | 231.6 | 12.3 |
TRVV | 0.5*14C | 261.4 | 13.6 |
TRVV | 0.5*15C | 271.4 | 13.6 |
TRVV | 0.5*16C | 281.7 | 13.6 |
TRVV | 0.5*17C | 317.4 | 15.0 |
TRVV | 0.5*18C | 327.4 | 15.0 |
TRVV | 0.5*19C | 337.4 | 15.0 |
TRVV | 0.5*20C | 346.0 | 15.1 |
TRVV | 0.5*21C | 355.9 | 15.1 |
TRVV | 0.5*22C | 365.9 | 15.1 |
TRVV | 0.5*23C | 408.0 | 16.6 |
TRVV | 0.5*24C | 418.0 | 16.6 |
TRVV | 0.5*25C | 427.9 | 16.6 |
TRVV | 0.5*26C | 437.9 | 16.6 |
TRVV | 0.5*27C | 485.4 | 18.1 |
TRVV | 0.5*28C | 495.4 | 18.1 |
TRVV | 0.5*29C | 505.4 | 18.1 |
TRVV | 0.5*30C | 514.9 | 18.4 |
TRVV | 0.5*31C | 524.9 | 18.4 |
TRVV | 0.5*32C | 534.9 | 18.4 |
TRVV | 0.5*33C | 544.8 | 18.4 |
TRVV | 0.5*34C | 601.1 | 20.1 |
TRVV | 0.5*35C | 611.1 | 20.1 |
TRVV | 0.5*36C | 578.8 | 20.3 |
TRVV | 0.5*37C | 588.8 | 20.3 |
TRVV | 0.5*38C | 598.8 | 20.3 |
TRVV | 0.5*39C | 764.9 | 22.4 |
TRVV | 0.5*40C | 743.7 | 22.4 |
TRVV | 0.75*2C | 55.7 | 6.2 |
TRVV | 0.75*3C | 69.7 | 6.6 |
TRVV | 0.75*4C | 86.5 | 7.2 |
TRVV | 0.75*5C | 106.1 | 7.9 |
TRVV | 0.75*6C | 127.4 | 8.6 |
TRVV | 0.75*7C | 150.1 | 9.3 |
TRVV | 0.75*8C | 178.0 | 10.2 |
TRVV | 0.75*9C | 203.8 | 10.9 |
TRVV | 0.75*10C | 228.4 | 11.5 |
TRVV | 0.75*11C | 255.8 | 13.2 |
TRVV | 0.75*12C | 268.6 | 13.2 |
TRVV | 0.75*13C | 281.4 | 13.2 |
TRVV | 0.75*14C | 317.0 | 14.6 |
TRVV | 0.75*15C | 329.8 | 14.6 |
TRVV | 0.75*16C | 343.0 | 14.6 |
TRVV | 0.75*17C | 385.4 | 16.0 |
TRVV | 0.75*18C | 398.2 | 16.0 |
TRVV | 0.75*19C | 411.0 | 16.0 |
TRVV | 0.75*20C | 422.2 | 16.2 |
TRVV | 0.75*21C | 435.0 | 16.2 |
TRVV | 0.75*22C | 447.8 | 16.2 |
TRVV | 0.75*23C | 497.5 | 17.8 |
TRVV | 0.75*24C | 510.3 | 17.8 |
TRVV | 0.75*25C | 523.1 | 17.8 |
TRVV | 0.75*26C | 535.9 | 17.8 |
TRVV | 0.75*27C | 592.0 | 19.4 |
TRVV | 0.75*28C | 604.8 | 19.4 |
TRVV | 0.75*29C | 617.6 | 19.4 |
TRVV | 0.75*30C | 629.8 | 19.7 |
TRVV | 0.75*31C | 642.6 | 19.7 |
TRVV | 0.75*32C | 655.4 | 19.7 |
TRVV | 0.75*33C | 668.3 | 19.7 |
TRVV | 0.75*34C | 734.4 | 21.6 |
TRVV | 0.75*35C | 747.2 | 21.6 |
TRVV | 0.75*36C | 710.9 | 21.8 |
TRVV | 0.75*37C | 723.7 | 21.8 |
TRVV | 0.75*38C | 736.5 | 21.8 |
TRVV | 0.75*39C | 930.4 | 24.0 |
TRVV | 0.75*40C | 906.9 | 24.0 |
TRVV | 1.0*2C | 70.9 | 7.0 |
TRVV | 1.0*3C | 89.4 | 7.4 |
TRVV | 1.0*4C | 111.6 | 8.2 |
TRVV | 1.0*5C | 137.6 | 8.9 |
TRVV | 1.0*6C | 165.9 | 9.8 |
TRVV | 1.0*7C | 196.0 | 10.6 |
TRVV | 1.0*8C | 233.2 | 11.7 |
TRVV | 1.0*9C | 267.6 | 12.6 |
TRVV | 1.0*10C | 300.5 | 13.3 |
TRVV | 1.0*11C | 336.9 | 15.2 |
TRVV | 1.0*12C | 354.1 | 15.2 |
TRVV | 1.0*13C | 371.3 | 15.2 |
TRVV | 1.0*14C | 418.6 | 16.8 |
TRVV | 1.0*15C | 435.8 | 16.8 |
TRVV | 1.0*16C | 453.4 | 16.8 |
TRVV | 1.0*17C | 510.1 | 18.5 |
TRVV | 1.0*18C | 527.3 | 18.5 |
TRVV | 1.0*19C | 544.5 | 18.5 |
TRVV | 1.0*20C | 559.3 | 18.7 |
TRVV | 1.0*21C | 576.4 | 18.7 |
TRVV | 1.0*22C | 593.6 | 18.7 |
TRVV | 1.0*23C | 660.2 | 20.6 |
TRVV | 1.0*24C | 677.4 | 20.6 |
TRVV | 1.0*25C | 694.6 | 20.6 |
TRVV | 1.0*26C | 711.7 | 20.6 |
TRVV | 1.0*27C | 787 | 22.5 |
TRVV | 1.0*28C | 804.2 | 22.5 |
TRVV | 1.0*29C | 821.4 | 22.5 |
TRVV | 1.0*30C | 837.4 | 22.9 |
TRVV | 1.0*31C | 854.6 | 22.9 |
TRVV | 1.0*32C | 871.8 | 22.9 |
TRVV | 1.0*33C | 888.9 | 22.9 |
TRVV | 1.0*34C | 978 | 25 |
TRVV | 1.0*35C | 995.1 | 25 |
TRVV | 1.0*36C | 944.7 | 25.2 |
TRVV | 1.0*37C | 961.9 | 25.2 |
TRVV | 1.0*38C | 979.1 | 25.2 |
TRVV | 1.0*39C | 1242.9 | 27.9 |
TRVV | 1.0*40C | 1210.3 | 27.9 |
TRVV | 1.25*2C | 86.6 | 7.7 |
TRVV | 1.25*3C | 110.2 | 8.2 |
TRVV | 1.25*4C | 138.1 | 9 |
TRVV | 1.25*5C | 171 | 9.9 |
TRVV | 1.25*6C | 206.6 | 10.8 |
TRVV | 1.25*7C | 244.5 | 11.8 |
TRVV | 1.25*8C | 291.4 | 13 |
TRVV | 1.25*9C | 334.8 | 14 |
TRVV | 1.25*10C | 376.4 | 14.7 |
TRVV | 1.25*11C | 422.3 | 16.9 |
TRVV | 1.25*12C | 444.3 | 16.9 |
TRVV | 1.25*13C | 466.3 | 16.9 |
TRVV | 1.25*14C | 525.8 | 18.7 |
TRVV | 1.25*15C | 547.8 | 18.7 |
TRVV | 1.25*16C | 570.4 | 18.8 |
TRVV | 1.25*17C | 641.7 | 20.7 |
TRVV | 1.25*18C | 663.7 | 20.7 |
TRVV | 1.25*19C | 685.7 | 20.7 |
TRVV | 1.25*20C | 704.7 | 20.8 |
TRVV | 1.25*21C | 726.7 | 20.8 |
TRVV | 1.25*22C | 748.8 | 20.8 |
TRVV | 1.25*23C | 832.4 | 23 |
TRVV | 1.25*24C | 854.5 | 23 |
TRVV | 1.25*25C | 876.5 | 23 |
TRVV | 1.25*26C | 898.5 | 23 |
TRVV | 1.25*27C | 993.2 | 25.1 |
TRVV | 1.25*28C | 1015.2 | 25.1 |
TRVV | 1.25*29C | 1037.3 | 25.1 |
TRVV | 1.25*30C | 1057.8 | 25.5 |
TRVV | 1.25*31C | 1079.8 | 25.5 |
TRVV | 1.25*32C | 1101.8 | 25.5 |
TRVV | 1.25*33C | 1123.8 | 25.5 |
TRVV | 1.25*34C | 1235.8 | 27.9 |
TRVV | 1.25*35C | 1257.8 | 27.9 |
TRVV | 1.25*36C | 1194.2 | 28.2 |
TRVV | 1.25*37C | 1216.2 | 28.2 |
TRVV | 1.25*38C | 1238.3 | 28.2 |
TRVV | 1.25*39C | 1571.2 | 31.2 |
TRVV | 1.25*40C | 1530.3 | 31.2 |
TRVV | 1.5*2C | 100.8 | 8.4 |
TRVV | 1.5*3C | 128.4 | 8.9 |
TRVV | 1.5*4C | 161.2 | 9.8 |
TRVV | 1.5*5C | 200.1 | 10.8 |
TRVV | 1.5*6C | 242.4 | 11.9 |
TRVV | 1.5*7C | 287.5 | 12.9 |
TRVV | 1.5*8C | 343.6 | 14.3 |
TRVV | 1.5*9C | 395.4 | 15.4 |
TRVV | 1.5*10C | 445.1 | 16.2 |
TRVV | 1.5*11C | 499.9 | 18.6 |
TRVV | 1.5*12C | 525.8 | 18.6 |
TRVV | 1.5*13C | 551.8 | 18.6 |
TRVV | 1.5*14C | 623.1 | 20.7 |
TRVV | 1.5*15C | 649 | 20.7 |
TRVV | 1.5*16C | 675.7 | 20.7 |
TRVV | 1.5*17C | 761.6 | 22.8 |
TRVV | 1.5*18C | 787.5 | 22.8 |
TRVV | 1.5*19C | 813.4 | 22.8 |
TRVV | 1.5*20C | 835.5 | 23 |
TRVV | 1.5*21C | 861.4 | 23 |
TRVV | 1.5*22C | 887.3 | 23 |
TRVV | 1.5*23C | 988.4 | 25.4 |
TRVV | 1.5*24C | 1014.3 | 25.4 |
TRVV | 1.5*25C | 1040.2 | 25.4 |
TRVV | 1.5*26C | 1066.2 | 25.4 |
TRVV | 1.5*27C | 1180.9 | 27.8 |
TRVV | 1.5*28C | 1206.8 | 27.8 |
TRVV | 1.5*29C | 1232.7 | 27.8 |
TRVV | 1.5*30C | 1256.5 | 28.2 |
TRVV | 1.5*31C | 1282.5 | 28.2 |
TRVV | 1.5*32C | 1308.4 | 28.2 |
TRVV | 1.5*33C | 1334.3 | 28.2 |
TRVV | 1.5*34C | 1470.2 | 30.9 |
TRVV | 1.5*35C | 1496.1 | 30.9 |
TRVV | 1.5*36C | 1416.2 | 31.2 |
TRVV | 1.5*37C | 1442.1 | 31.2 |
TRVV | 1.5*38C | 1468 | 31.2 |
TRVV | 1.5*39C | 1876.6 | 34.5 |
TRVV | 1.5*40C | 1824.7 | 34.5 |
TRVV | 2.0*2C | 134.6 | 9.8 |
TRVV | 2.0*3C | 172.3 | 10.4 |
TRVV | 2.0*4C | 217.3 | 11.5 |
TRVV | 2.0*5C | 270.9 | 12.7 |
TRVV | 2.0*6C | 329.3 | 14 |
TRVV | 2.0*7C | 391.9 | 15.2 |
TRVV | 2.0*8C | 469.8 | 16.9 |
TRVV | 2.0*9C | 542.1 | 18.1 |
TRVV | 2.0*10C | 611.4 | 19.2 |
TRVV | 2.0*11C | 687.5 | 22.1 |
TRVV | 2.0*12C | 723.3 | 22.1 |
TRVV | 2.0*13C | 759.1 | 22.1 |
TRVV | 2.0*14C | 858.7 | 24.5 |
TRVV | 2.0*15C | 894.5 | 24.5 |
TRVV | 2.0*16C | 931.2 | 24.6 |
TRVV | 2.0*17C | 1051.6 | 27.1 |
TRVV | 2.0*18C | 1087.4 | 27.1 |
TRVV | 2.0*19C | 1123.2 | 27.1 |
TRVV | 2.0*20C | 1153.4 | 27.3 |
TRVV | 2.0*21C | 1189.1 | 27.3 |
TRVV | 2.0*22C | 1224.9 | 27.3 |
TRVV | 2.0*23C | 1367.1 | 30.2 |
TRVV | 2.0*24C | 1402.8 | 30.2 |
TRVV | 2.0*25C | 1438.6 | 30.2 |
TRVV | 2.0*26C | 1474.4 | 30.2 |
TRVV | 2.0*27C | 1636.1 | 33 |
TRVV | 2.0*28C | 1671.9 | 33 |
TRVV | 2.0*29C | 1707.7 | 33 |
TRVV | 2.0*30C | 1740.1 | 33.6 |
TRVV | 2.0*31C | 1775.9 | 33.6 |
TRVV | 2.0*32C | 1811.7 | 33.6 |
TRVV | 2.0*33C | 1847.5 | 33.6 |
TRVV | 2.5*2C | 158.5 | 10.6 |
TRVV | 2.5*3C | 203.9 | 11.3 |
TRVV | 2.5*4C | 257.9 | 12.5 |
TRVV | 2.5*5C | 322.1 | 13.8 |
TRVV | 2.5*6C | 392.2 | 15.2 |
TRVV | 2.5*7C | 467.3 | 16.6 |
TRVV | 2.5*8C | 560.7 | 18.4 |
TRVV | 2.5*9C | 647.4 | 19.8 |
TRVV | 2.5*10C | 730.6 | 20.9 |
TRVV | 2.5*11C | 821.8 | 24.1 |
TRVV | 2.5*12C | 865.1 | 24.1 |
TRVV | 2.5*13C | 908.5 | 24.1 |
TRVV | 2.5*14C | 1027.6 | 26.7 |
TRVV | 2.5*15C | 1071 | 26.7 |
TRVV | 2.5*16C | 1115.4 | 26.8 |
TRVV | 2.5*17C | 1259.7 | 29.6 |
TRVV | 2.5*18C | 1303 | 29.6 |
TRVV | 2.5*19C | 1346.3 | 29.6 |
TRVV | 2.5*20C | 1382.7 | 29.8 |
TRVV | 2.5*21C | 1426 | 29.8 |
TRVV | 2.5*22C | 1469.3 | 29.8 |
TRVV | 2.5*23C | 1639.6 | 33 |
TRVV | 2.5*24C | 1682.9 | 33 |
TRVV | 2.5*25C | 1726.2 | 33 |
TRVV | 2.5*26C | 1769.5 | 33 |
TRVV | 2.5*27C | 1963.3 | 36.1 |
TRVV | 2.5*28C | 2006.6 | 36.1 |
TRVV | 2.5*29C | 2049.9 | 36.1 |
TRVV | 2.5*30C | 2089 | 36.7 |
TRVV | 2.5*31C | 2132.3 | 36.7 |
TRVV | 2.5*32C | 2175.6 | 36.7 |
TRVV | 2.5*33C | 2219 | 36.7 |
TRVV | 4.0*2C | 211.9 | 11.9 |
TRVV | 4.0*3C | 276.6 | 12.7 |
TRVV | 4.0*4C | 352.2 | 14 |
TRVV | 4.0*5C | 441 | 15.5 |
TRVV | 4.0*6C | 537.4 | 17.1 |
TRVV | 4.0*7C | 640.2 | 18.7 |
TRVV | 4.0*8C | 766.6 | 20.7 |
TRVV | 4.0*9C | 884.5 | 22.3 |
TRVV | 4.0*10C | 998 | 23.6 |
TRVV | 4.0*11C | 1121.6 | 27.2 |
TRVV | 4.0*12C | 1184 | 27.2 |
TRVV | 4.0*13C | 1246.4 | 27.2 |
TRVV | 4.0*14C | 1405.8 | 30.3 |
TRVV | 4.0*15C | 1468.3 | 30.3 |
TRVV | 4.0*16C | 1532.2 | 30.3 |
TRVV | 4.0*17C | 1724.1 | 33.5 |
TRVV | 4.0*18C | 1786.5 | 33.5 |
TRVV | 4.0*19C | 1848.9 | 33.5 |
TRVV | 4.0*20C | 1902.3 | 33.8 |
TRVV | 4.0*21C | 1964.7 | 33.8 |
TRVV | 4.0*22C | 2027.1 | 33.8 |
TRVV | 4.0*23C | 2252.5 | 37.3 |
TRVV | 4.0*24C | 2315 | 37.3 |
TRVV | 4.0*25C | 2377.4 | 37.3 |
TRVV | 6.0*2C | 291.9 | 13.8 |
TRVV | 6.0*3C | 383.9 | 14.8 |
TRVV | 6.0*4C | 490.7 | 16.4 |
TRVV | 6.0*5C | 616.1 | 18.2 |
TRVV | 6.0*6C | 752.3 | 20.1 |
TRVV | 6.0*7C | 897.5 | 21.9 |
TRVV | 6.0*8C | 1075.5 | 24.4 |
TRVV | 6.0*9C | 1242 | 26.3 |
TRVV | 6.0*10C | 1402.7 | 27.8 |
TRVV | 6.0*11C | 1576.7 | 32.1 |
TRVV | 6.0*12C | 1666.1 | 32.1 |
TRVV | 6.0*13C | 1755.5 | 32.1 |
TRVV | 6.0*14C | 1979.6 | 35.7 |
TRVV | 6.0*15C | 2069 | 35.7 |
TRVV | 6.0*16C | 2160.4 | 35.8 |
TRVV | 6.0*17C | 2430.4 | 39.5 |
TRVV | 6.0*18C | 2519.8 | 39.5 |
TRVV | 6.0*19C | 2609.2 | 39.5 |
TRVV | 10.0*2C | 441.7 | 16.7 |
TRVV | 10.0*3C | 586.9 | 17.9 |
TRVV | 10.0*4C | 753.8 | 19.9 |
TRVV | 10.0*5C | 949 | 22.1 |
TRVV | 10.0*6C | 1160.4 | 24.4 |
TRVV | 10.0*7C | 1385.6 | 26.7 |
TRVV | 10.0*8C | 1660 | 29.8 |
TRVV | 10.0*9C | 1917.6 | 32.1 |
TRVV | 10.0*10C | 2166.6 | 34 |
TRVV | 16.0*2C | 633.4 | 19.5 |
TRVV | 16.0*3C | 850.2 | 20.9 |
TRVV | 16.0*4C | 1096.7 | 23.3 |
TRVV | 16.0*5C | 1382.5 | 25.9 |
TRVV | 16.0*6C | 1690.8 | 28.6 |
TRVV | 16.0*7C | 2018.5 | 31.3 |
TRVV | 16.0*8C | 2414.3 | 34.9 |
TRVV | 16.0*9C | 2787.2 | 37.6 |
TRVV | 25.0*2C | 992 | 24.6 |
TRVV | 25.0*3C | 1335 | 26.4 |
TRVV | 25.0*4C | 1725.6 | 29.4 |
TRVV | 25.0*5C | 2180.4 | 32.8 |
TRVV | 25.0*6C | 2672 | 36.2 |
TRVV | 35.0*2C | 1264.1 | 27 |
TRVV | 35.0*3C | 1715.3 | 28.9 |
TRVV | 35.0*4C | 2223.6 | 32.2 |
TRVV | 35.0*5C | 2809.5 | 35.9 |
