0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV)

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

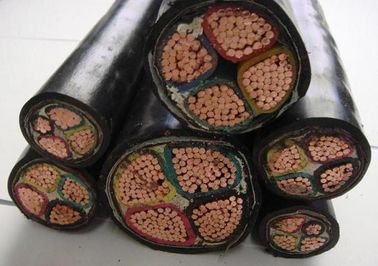

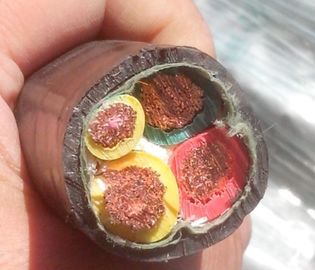

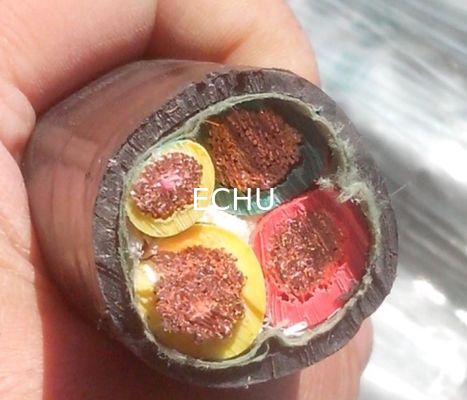

0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV)

China 0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV) supplier
0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV) supplier 0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV) supplier 0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV) supplier 0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV) supplier 0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV) supplier 0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV) supplier

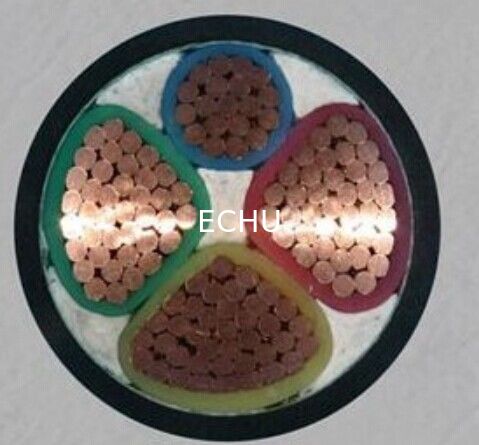

Large Image :  0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV)

Product Details:

Place of Origin: China
Brand Name: ECHU
Model Number: VV

Payment & Shipping Terms:

Minimum Order Quantity: 300m
Price: USD0.105-USD0.868/m
Packaging Details: Splint reel
Delivery Time: 7 to 10days after receiving payment
Payment Terms: T/T, Western Union., L/C
Supply Ability: 100000km/week
Detailed Product Description
Conductor: Copper Insulation: PVC
Jacket: PVC Voltage: 0.6/1JV

Implementation of the standards:

1) This product is designed and manufactured according to GB/T12706-2002
2) flame retardant power cable accordance with the standards of production enterprises, flame retardant characteristics meet the requirements GB/T18380.3
3) fire-resistant power cables manufactured according to corporate standards, including fire-resistant characteristics meet GB/T12666.6 requirements

Characteristic:

1) Long-term allowable working temperature of cable conductor does not exceed 70C. Circuit is blocked (the longest duration fo no more than 5 seconds), The conductor temperature does not exceed 160C

2) While installation the ambient temperature should not be less than 0C, lower than 0C should be preheated. Minimum bending radius of not less than the cable diameter, single core cables without armor 20 times, there with armor cable 15 times. Three core cable without armour 15times, there with armor cable 12 times

3) DC resistance of conductor shall comply with the provisions of GB/T3956
4) Power frequency withstand voltage test: 3.5KV/5min without breakdown
Main use:
This product is suitable for AC rated voltage 0.6/1KV the circuit, Transmission of electrical energy used, Flame retardant power cable is suitable installed in fire-retardant demanding situations. Resistant power cable for high-rise buildings, shopping malls and other densely populated areas.

Retardant performance:
1) Retardant cable can withstand GB/T18380.3 prescribd bunched burning test
2) Smoke density in accordance with the requirements of GB/T17651.1
3) Combustion gases precipitated HCL content should be </= 100mg/g
4) Resistant cable can withstand GBA/T12666.6 fire test requirement


0.6/1KV Copper core PVC insulated PVC sheathed flexible power cable (VV)



No Type Size O.D.
mm
Weight
KG/KM
1 VV 1×1.5 5.8 51
2 VV 1×2.5 6.2 63
3 VV 1×4 7.1 88
4 VV 1×6 7.6 111
5 VV 1×10 8.7 160
6 VV 1×16 9.7 224
7 VV 1×25 11.4 329
8 VV 1×35 12.4 431
9 VV 1×50 13.9 592
10 VV 1×70 15.6 800
11 VV 1×95 17.8 1063
12 VV 1×120 19.1 1315
13 VV 1×150 21.4 1624
14 VV 1×185 23.6 1998
15 VV 1×240 26.4 2566
16 VV 1×300 29.2 3185
17 VV 1×400 32.8 4176
18 VV 2×1.5 10.0 112
19 VV 2×2.5 10.8 140
20 VV 2×4 12.5 198
21 VV 2×6 13.5 250
22 VV 2×10 15.8 361
23 VV 2×16 17.8 505
24 VV 2×25 21.2 743
25 VV 2×35 23.2 840
26 VV 2×50 20.5 1174
27 VV 2×70 23.1 1580
28 VV 2×95 26.1 2119
29 VV 2×120 28.4 2617
30 VV 2×150 31.3 3252
31 VV 2×185 34.5 4010
32 VV 2×240 37.5 5183
33 VV 2×300 41.0 6423
34 VV 2×400 45.0 8459
35 VV 3×1.5 10.4 135
36 VV 3×2.5 11.3 174
37 VV 3×4 13.2 251
38 VV 3×6 14.3 323
39 VV 3×10 16.7 474
40 VV 3×16 18.9 675
41 VV 3×25 22.5 1005
42 VV 3×35 24.7 1325
43 VV 3×50 25.4 1720
44 VV 3×70 28.5 2334
45 VV 3×95 32.9 3134
46 VV 3×120 35.6 3875
47 VV 3×150 39.3 4838
48 VV 3×185 43.6 5964
49 VV 3×240 49.0 7663
50 VV 3×300 54.2 9525
51 VV 3×400 60.5 12512
52 VV 4×1.5 11.2 164
53 VV 4×2.5 12.2 214
54 VV 4×4 14.3 312
55 VV 4×6 15.5 406
56 VV 4×10 18.2 601
57 VV 4×16 20.7 864
58 VV 4×25 24.8 1293
59 VV 4×35 27.2 1630
60 VV 4×50 27.4 2278
61 VV 4×70 31.1 3090
62 VV 4×95 35.9 4166
63 VV 4×120 39.1 5152
64 VV 4×150 43.0 6428
65 VV 4×185 47.7 7913
66 VV 4×240 53.5 10177
67 VV 4×300 59.2 12640
68 VV 4×400 66.1 16645
69 VV 5×1.5 12.0 194
70 VV 5×2.5 13.1 256
71 VV 5×4 15.5 376
72 VV 5×6 16.9 492
73 VV 5×10 19.9 733
74 VV 5×16 22.6 1059
75 VV 5×25 27.2 1591
76 VV 5×35 30.1 2126
77 VV 5×50 28.5 2835
78 VV 5×70 32.4 3848
79 VV 5×95 37.2 5206
80 VV 5×120 40.6 6435
81 VV 5×150 44.7 8011
82 VV 5×185 49.6 9866
83 VV 5×240 55.9 12695
84 VV 5×300 61.6 15770
85 VV 5×400 68.0 20797
86 VV 3×1.5+1×1.0 11.2 178
87 VV 3×2.5+1×1.5 12.0 202
88 VV 3×4+1×2.5 13.9 289
89 VV 3×6+1×4 15.1 384
90 VV 3×10+1×6 17.6 555
91 VV 3×16+1×10 19.9 801
92 VV 3×25+1×16 23.2 1192
93 VV 3×35+1×16 25.0 1511
94 VV 3×50+1×25 28.0 2016
95 VV 3×70+1×35 31.5 2718
96 VV 3×95+1×50 35.4 3690
97 VV 3×120+1×70 38.6 4648
98 VV 3×150+1×70 42.2 5604
99 VV 3×185+1×95 46.7 6984
100 VV 3×240+1×120 52.3 8939
101 VV 3×300+1×150 57.7 11112
102 VV 3×400+1×185 64.4 14474
103 VV 3×1.5+2×1.0 12.3 184
104 VV 3×2.5+2×1.5 13.0 232
105 VV 3×4+2×2.5 15.2 331
106 VV 3×6+2×4 16.5 448
107 VV 3×10+2×6 19.3 642
108 VV 3×16+2×10 21.9 934
109 VV 3×25+2×16 25.7 1390
110 VV 3×35+2×16 28.0 1711
111 VV 3×50+2×25 29.4 2317
112 VV 3×70+2×35 32.4 3137
113 VV 3×95+2×50 37.9 4275
114 VV 3×120+2×70 41.1 5429
115 VV 3×150+2×70 46.9 6395
116 VV 3×185+2×95 49.9 8044
117 VV 3×240+2×120 66.5 10246
118 VV 3×300+2×150 74.0 12742
119 VV 3×400+2×185 83.0 16499
120 VV 4×1.5+1×1.0 12.2 185
121 VV 4×2.5+1*1.5 13.0 244
122 VV 4×4+1×2.5 15.2 353
123 VV 4×6+1×4 16.5 470
124 VV 4×10+1×6 19.3 687
125 VV 4×16+1×10 21.9 996
126 VV 4×25+1×16 25.7 1491
127 VV 4×35+1×16 28.0 1912
128 VV 4×50+1×25 26.8 2583
129 VV 4×70+1×35 32.4 3485
130 VV 4×95+1×50 37.7 4741
131 VV 4×120+1×70 41.1 5941
132 VV 4×150+1×70 44.7 7208
133 VV 4×185+1×95 49.9 8960
134 VV 4×240+1×120 66.5 11481
135 VV 4×300+1×150 74.0 14261
136 VV 4×400+1×185 83.0

18632
