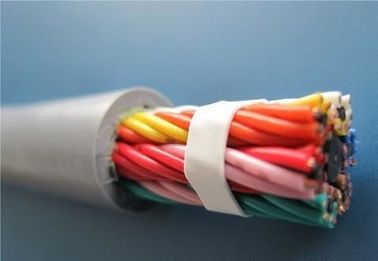

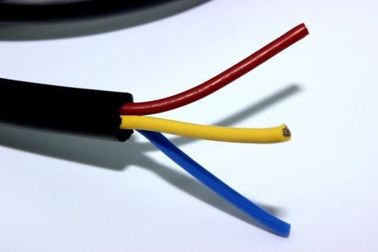

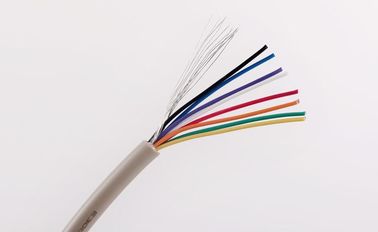

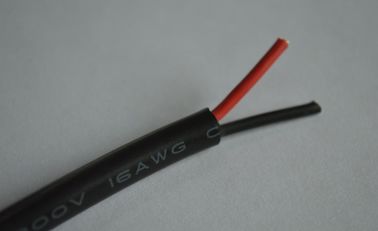

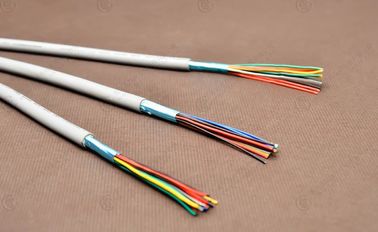

RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable

Name: RoHS UL2501 PVC Insulation PVC Jacket High Flexible Mobile Cable, ECHU Drag Chian Cable
Brand: ECHU Special Wire & Cable (Kunshan) Co., Ltd.
SKU: UL2501
Price: 0.16 USD
Availability: InStock

Brand Name:	ECHU
Model Number:	UL2501
MOQ:	200Meter
Price:	USD0.155-USD2.12/m
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000KM/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Insulaton

Application:

Appliance

Rated Voltage:

600V

Rated Temp:

105℃

Conductor Material:

Copper

Conductor Type:

Stranded

Packaging Details:

splint reel/ splint box

Product Description

UL High Flexible Mobile Cable

◆Application:

Robots,towing chains,mobile devices

◆Properties:

Waterproofing;oil resistance;coolresistance;abra- sion resistance;flame resistance;anti-ultraviolet. Bending for life:above 10000000times

◆ Structure:

Conductor:Fine strands of oxygen-free copper wire Insulation:special PVC

Shielding:tinnedcopper brainded shielding Sheath:special PVC

Black grey orange

Related voltage:<0.5mm²:300/300V

≥0.5mm²:300/500V Test voltage:2000V

The working temperature:

fixed instalation:-15℃~+105℃ Moved installation:-5℃~+105℃ Minimun bending radius:

fixed instalation:5×outer diameter Moved installation:

When travel<10m,bending radius of 8×d When travel≥10m,bending radius of 10×d

Part-No	Specification	(kg/km) Weight	(mm) External Diameter
2501	18AWG*2C	98	9.1
2501	18AWG*3C	117	9.6
2501	18AWG*4C	143	10.5
2501	18AWG*6C	198	12.4
2501	18AWG*8C	262	14.3
2501	18AWG*10C	331	16.2
2501	18AWG*12C	407	18.2
2501	18AWG*16C	435	17.8
2501	18AWG*20C	531	19.7
2501	18AWG*2C	118	9.8
2501	18AWG*3C	146	10.5
2501	18AWG*4C	180	11.3
2501	18AWG*6C	250	13.3
2501	18AWG*8C	340	15.6
2501	18AWG*10C	421	17.8
2501	18AWG*12C	518	20
2501	18AWG*16C	560	19.5
2501	18AWG*20C	692	21.6

Part-No	Specification	(kg/km) Weight	(mm) External Diameter
2501	14AWG*2C	149	10.7
2501	14AWG*3C	181	11.3
2501	14AWG*4C	227	12,4
2501	14AWG*6C	321	14.6
2501	14AWG*8C	434	17.2
2501	14AWG*10C	551	19.6
2501	14AWG*12C	675	22
2501	14AWG*16C	741	21.4
2501	14AWG*20C	911	23.7
2501	12AWG*2C	195	11.8
2501	12AWG*3C	248	12.6
2501	12AWG*4C	310	13.9
2501	12AWG*5C	368	14.5
2501	12AWG*6C	442	16.4
2501	12AWG*7C	519	17.9
2501	10AWG*2C	288	14.2
2501	10AWG*3C	362	15
2501	0AWG*4	458	16.5
