ROHS PVC Electrical shield Multi-conductor cable UL2464 80℃ 300V with UL Certificate & drain wire in grey color

Large Image : ROHS PVC Electrical shield Multi-conductor cable UL2464 80℃ 300V with UL Certificate & drain wire in grey color

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	UL
Model Number:	UL2464

Payment & Shipping Terms:

Minimum Order Quantity:	300meters
Price:	USD0.116-USD0.5246/m
Packaging Details:	Splint reel or box
Delivery Time:	7 to 10days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000km/week

Contact Now

Detailed Product Description

Color:	Black/grey/white...	Voltage:	300V
Standard:	UL758

Heat resistance,
Good insulation property,
UL certificate

UL2464 Wire and Cable

Applications:

As measuring, monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air-condition system.

Properties:

Heat resistance, good insulation property, excellent chemical performance, extruding sheath

Standards: UL 758

Structure:

Conductor: Fine strands of tinned copper wire, exellent corrosion resistance.

Insulation: Special PVC

Colour: Acc. To UL 758

Sheath: 80 heat-resistant flame-resistant PVC, pass VW-1 flame testing

Colour: Black (RAL9005) green (RAL6018)

Orange(RAL2003) purple(RAL4001)

Or refer to customers requirement.

Technical data:

Rated voltage: 300V

Test voltage: 2000V

Temperature range

Fixed installation: -40C to +80C

Flexing Installation: -10C to +80C

The minimum bending radius:

Fixed installation: 4Xouter diameter

Flexing installation: 15Xouter diameter

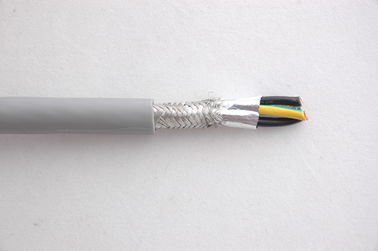

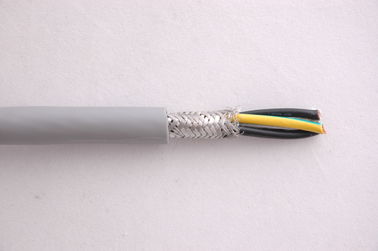

ROHS PVC Electrical shield Multi-conductor cable UL2464 80℃ 300V with UL Certificate & drain wire in grey color

Type	Size	Conductor	Conductor OD:φ	Weight KG/KM	OD down limited mm	OD up limited mm
UL2464	26AWG*2C	7	0.16	24.5	4.0	4.4
UL2464	26AWG*3C	7	0.16	28	4.2	4.6
UL2464	26AWG*4C	7	0.16	32.9	4.5	4.9
UL2464	26AWG*5C	7	0.16	38.1	4.9	5.3
UL2464	26AWG*6C	7	0.16	43.6	5.3	5.7
UL2464	26AWG*7C	7	0.16	46.6	5.3	5.7
UL2464	26AWG*8C	7	0.16	52.1	5.6	6
UL2464	26AWG*9C	7	0.16	59	6.2	6.6
UL2464	26AWG*10C	7	0.16	65.7	6.5	6.9
UL2464	26AWG*11C	7	0.16	70.7	6.7	7.1
UL2464	26AWG*12C	7	0.16	72.8	6.7	7.1
UL2464	26AWG*13C	7	0.16	75.7	7.1	7.5
UL2464	26AWG*14C	7	0.16	78.7	7.1	7.5
UL2464	26AWG*15C	7	0.16	84.5	7.4	7.8
UL2464	26AWG*16C	7	0.16	87.6	7.4	7.8
UL2464	26AWG*17C	7	0.16	93.6	7.8	8.2
UL2464	26AWG*18C	7	0.16	96.6	7.8	8.2
UL2464	26AWG*19C	7	0.16	99.6	7.8	8.2
UL2464	26AWG*20C	7	0.16	104.2	8.0	8.4
UL2464	26AWG*21C	7	0.16	108.7	8.2	8.6
UL2464	26AWG*22C	7	0.16	116	8.7	9.1
UL2464	26AWG*23C	7	0.16	122.3	9.1	9.5
UL2464	26AWG*24C	7	0.16	125.3	9.1	9.5
UL2464	26AWG*25C	7	0.16	130.1	9.3	9.7
UL2464	26AWG*26C	7	0.16	133.1	9.3	9.7
UL2464	26AWG*27C	7	0.16	136.1	9.3	9.7
UL2464	26AWG*28C	7	0.16	142.1	9.6	10.0
UL2464	26AWG*29C	7	0.16	145.1	9.6	10.0
UL2464	26AWG*30C	7	0.16	148.2	9.6	10.0
UL2464	26AWG*31C	7	0.16	154.5	10.0	10.6
UL2464	26AWG*32C	7	0.16	157.5	10.0	10.6
UL2464	26AWG*33C	7	0.16	160.6	10.0	10.6
UL2464	26AWG*34C	7	0.16	167.2	10.4	11
UL2464	26AWG*35C	7	0.16	170.2	10.4	11
UL2464	26AWG*36C	7	0.16	173.2	10.4	11
UL2464	26AWG*37C	7	0.16	171.3	10.2	10.8

UL2464	24AWG*2C	11	0.16	27.2	4.1	4.5
UL2464	24AWG*3C	11	0.16	31.7	4.4	4.8
UL2464	24AWG*4C	11	0.16	37.8	4.7	5.1
UL2464	24AWG*5C	11	0.16	44.3	5.1	5.5
UL2464	24AWG*6C	11	0.16	51.1	5.6	6
UL2464	24AWG*7C	11	0.16	55.2	5.6	6
UL2464	24AWG*8C	11	0.16	62.1	6	6.4
UL2464	24AWG*9C	11	0.16	70.6	6.6	7
UL2464	24AWG*10C	11	0.16	79	7	7.4
UL2464	24AWG*11C	11	0.16	85.4	7.3	7.7
UL2464	24AWG*12C	11	0.16	88.3	7.3	7.7
UL2464	24AWG*13C	11	0.16	91.7	7.6	8
UL2464	24AWG*14C	11	0.16	95.8	7.6	8
UL2464	24AWG*15C	11	0.16	103	8	8.4
UL2464	24AWG*16C	11	0.16	107.1	8	8.4
UL2464	24AWG*17C	11	0.16	114.6	8.5	8.9
UL2464	24AWG*18C	11	0.16	118.7	8.5	8.9
UL2464	24AWG*19C	11	0.16	122.8	8.5	8.9
UL2464	24AWG*20C	11	0.16	128.7	8.7	9.1
UL2464	24AWG*21C	11	0.16	134.5	8.9	9.3
UL2464	24AWG*22C	11	0.16	143.5	9.5	9.9
UL2464	24AWG*23C	11	0.16	151.3	9.9	10.5
UL2464	24AWG*24C	11	0.16	155.4	9.9	10.5
UL2464	24AWG*25C	11	0.16	161.5	10.2	10.8
UL2464	24AWG*26C	11	0.16	165.6	10.2	10.8
UL2464	24AWG*27C	11	0.16	169.7	10.2	10.8
UL2464	24AWG*28C	11	0.16	177.2	10.5	11.1
UL2464	24AWG*29C	11	0.16	181.3	10.5	11.1
UL2464	24AWG*30C	11	0.16	185.4	10.5	11.1
UL2464	24AWG*31C	11	0.16	193.4	10.9	11.5
UL2464	24AWG*32C	11	0.16	197.5	10.9	11.5
UL2464	24AWG*33C	11	0.16	201.6	10.9	11.5
UL2464	24AWG*34C	11	0.16	209.8	11.4	12
UL2464	24AWG*35C	11	0.16	213.9	11.4	12
UL2464	24AWG*36C	11	0.16	218	11.4	12
UL2464	24AWG*37C	11	0.16	222.1	11.4	12

UL2464	22AWG*2C	17	0.16	32.2	4.4	4.8
UL2464	22AWG*3C	17	0.16	38.1	4.7	5.1
UL2464	22AWG*4C	17	0.16	45.8	5.1	5.5
UL2464	22AWG*5C	17	0.16	54	5.6	6
UL2464	22AWG*6C	17	0.16	62.5	6	6.4
UL2464	22AWG*7C	17	0.16	68	6	6.4
UL2464	22AWG*8C	17	0.16	76.7	6.5	6.9
UL2464	22AWG*9C	17	0.16	87.2	7.2	7.6
UL2464	22AWG*10C	17	0.16	97.7	7.6	8
UL2464	22AWG*11C	17	0.16	105.8	7.9	8.3
UL2464	22AWG*12C	17	0.16	109.9	7.9	8.3
UL2464	22AWG*13C	17	0.16	114.1	8.3	8.7
UL2464	22AWG*14C	17	0.16	119.5	8.3	8.7
UL2464	22AWG*15C	17	0.16	128.6	8.8	9.2
UL2464	22AWG*16C	17	0.16	134	8.8	9.2
UL2464	22AWG*17C	17	0.16	143.4	9.2	9.6
UL2464	22AWG*18C	17	0.16	148.8	9.2	9.6
UL2464	22AWG*19C	17	0.16	154.3	9.2	9.6
UL2464	22AWG*20C	17	0.16	161.8	9.5	9.9
UL2464	22AWG*21C	17	0.16	169.2	9.7	10.1
UL2464	22AWG*22C	17	0.16	180.3	10.4	11.0
UL2464	22AWG*23C	17	0.16	190.2	10.8	11.4
UL2464	22AWG*24C	17	0.16	195.6	10.8	11.4
UL2464	22AWG*25C	17	0.16	203.3	11.1	11.7
UL2464	22AWG*26C	17	0.16	208.8	11.1	11.7
UL2464	22AWG*27C	17	0.16	214.2	11.1	11.7
UL2464	22AWG*28C	17	0.16	223.6	11.5	12.1
UL2464	22AWG*29C	17	0.16	229.1	11.5	12.1
UL2464	22AWG*30C	17	0.16	234.5	11.5	12.1
UL2464	22AWG*31C	17	0.16	244.5	12	12.6
UL2464	22AWG*32C	17	0.16	249.9	12	12.6
UL2464	22AWG*33C	17	0.16	255.3	12	12.6
UL2464	22AWG*34C	17	0.16	265.6	12.4	13.0
UL2464	22AWG*35C	17	0.16	271.1	12.4	13.0
UL2464	22AWG*36C	17	0.16	276.5	12.4	13.0
UL2464	22AWG*37C	17	0.16	281.9	12.4	13.0

UL2464	20AWG*2C	26	0.16	40.9	4.9	5.3
UL2464	20AWG*3C	26	0.16	48.9	5.2	5.6
UL2464	20AWG*4C	26	0.16	59.3	5.7	6.1
UL2464	20AWG*5C	26	0.16	70.4	6.2	6.6
UL2464	20AWG*6C	26	0.16	81.9	6.8	7.2
UL2464	20AWG*7C	26	0.16	89.5	6.8	7.2
UL2464	20AWG*8C	26	0.16	101.2	7.4	7.8
UL2464	20AWG*9C	26	0.16	115.3	8.1	8.5
UL2464	20AWG*10C	26	0.16	129.4	8.7	9.1
UL2464	20AWG*11C	26	0.16	140.5	8.9	9.3
UL2464	20AWG*12C	26	0.16	146.2	8.9	9.3
UL2464	20AWG*13C	26	0.16	151.6	9.4	9.8
UL2464	20AWG*14C	26	0.16	159.2	9.4	9.8
UL2464	20AWG*15C	26	0.16	171.4	10	10.4
UL2464	20AWG*16C	26	0.16	179	10	10.4
UL2464	20AWG*17C	26	0.16	191.6	10.5	11.1
UL2464	20AWG*18C	26	0.16	199.2	10.5	11.1
UL2464	20AWG*19C	26	0.16	206.9	10.5	11.1
UL2464	20AWG*20C	26	0.16	217.1	10.8	11.4
UL2464	20AWG*21C	26	0.16	227.3	11.1	11.7
UL2464	20AWG*22C	26	0.16	242.1	11.8	12.4
UL2464	20AWG*23C	26	0.16	255.3	12.4	13
UL2464	20AWG*24C	26	0.16	262.9	12.4	13
UL2464	20AWG*25C	26	0.16	273.5	12.7	13.3
UL2464	20AWG*26C	26	0.16	281.1	12.7	13.3
UL2464	20AWG*27C	26	0.16	288.7	12.7	13.3
UL2464	20AWG*28C	26	0.16	301.4	13.1	13.7
UL2464	20AWG*29C	26	0.16	309	13.1	13.7
UL2464	20AWG*30C	26	0.16	316.6	13.1	13.7
UL2464	20AWG*31C	26	0.16	330	13.7	14.3
UL2464	20AWG*32C	26	0.16	337.6	13.7	14.3
UL2464	20AWG*33C	26	0.16	345.3	13.7	14.3
UL2464	20AWG*34C	26	0.16	359.1	14.2	14.8
UL2464	20AWG*35C	26	0.16	366.7	14.2	14.8
UL2464	20AWG*36C	26	0.16	374.3	14.2	14.8
UL2464	20AWG*37C	26	0.16	381.9	14.2	14.8

UL2464	18AWG*2C	41	0.16	57.9	5.9	6.3
UL2464	18AWG*3C	41	0.16	69.9	6.2	6.6
UL2464	18AWG*4C	41	0.16	85.3	6.8	7.2
UL2464	18AWG*5C	41	0.16	94.2	7.4	7.8
UL2464	18AWG*6C	41	0.16	109.6	8	8.4
UL2464	18AWG*7C	41	0.16	119.6	8	8.4
UL2464	18AWG*8C	41	0.16	135.3	8.7	9.1
UL2464	18AWG*9C	41	0.16	154.3	9.6	10.2
UL2464	18AWG*10C	41	0.16	173.4	10.2	10.8
UL2464	18AWG*11C	41	0.16	188.2	10.6	11.2
UL2464	18AWG*12C	41	0.16	195.6	10.6	11.2
UL2464	18AWG*13C	41	0.16	202	11.2	11.8
UL2464	18AWG*14C	41	0.16	212	11.2	11.8
UL2464	18AWG*15C	41	0.16	228.3	11.8	12.4
UL2464	18AWG*16C	41	0.16	238.4	11.8	12.4
UL2464	18AWG*17C	41	0.16	255.3	12.5	13.1
UL2464	18AWG*18C	41	0.16	265.3	12.5	13.1
UL2464	18AWG*19C	41	0.16	275.3	12.5	13.1
UL2464	18AWG*20C	41	0.16	289	12.8	13.4
UL2464	18AWG*21C	41	0.16	302.5	13.1	13.7
UL2464	18AWG*22C	41	0.16	322.5	14	14.6
UL2464	18AWG*23C	41	0.16	340.3	14.7	15.3
UL2464	18AWG*24C	41	0.16	350.3	14.7	15.3
UL2464	18AWG*25C	41	0.16	364.5	15	16.2
UL2464	18AWG*26C	41	0.16	374.5	15	16.2
UL2464	18AWG*27C	41	0.16	384.5	15	16.2
UL2464	18AWG*28C	41	0.16	401.6	15.6	16.8
UL2464	18AWG*29C	41	0.16	411.6	15.6	16.8
UL2464	18AWG*30C	41	0.16	421.6	15.6	16.8
UL2464	18AWG*31C	41	0.16	439.7	16.2	17.4
UL2464	18AWG*32C	41	0.16	449.7	16.2	17.4
UL2464	18AWG*33C	41	0.16	459.7	16.2	17.4
UL2464	18AWG*34C	41	0.16	478.4	16.9	18.1
UL2464	18AWG*35C	41	0.16	488.4	16.9	18.1
UL2464	18AWG*36C	41	0.16	498.4	16.9	18.1
UL2464	18AWG*37C	41	0.16	508.4	16.9	18.1

UL2464	16AWG*2C	65	0.16	81.4	6.9	7.3
UL2464	16AWG*3C	65	0.16	99.1	7.3	7.7
UL2464	16AWG*4C	65	0.16	121.7	8	8.4
UL2464	16AWG*5C	65	0.16	145.6	8.8	9.2
UL2464	16AWG*6C	65	0.16	170.6	9.6	10
UL2464	16AWG*7C	65	0.16	188	9.6	10
UL2464	16AWG*8C	65	0.16	213.2	10.4	11.0
UL2464	16AWG*9C	65	0.16	243.4	11.5	12.1
UL2464	16AWG*10C	65	0.16	273.9	12.3	12.9
UL2464	16AWG*11C	65	0.16	298.3	12.8	13.4
UL2464	16AWG*12C	65	0.16	311.6	12.8	13.4
UL2464	16AWG*13C	65	0.16	322.2	13.5	14.1
UL2464	16AWG*14C	65	0.16	339.6	13.5	14.1
UL2464	16AWG*15C	65	0.16	365.9	14.2	14.8
UL2464	16AWG*16C	65	0.16	383.3	14.2	14.8
UL2464	16AWG*17C	65	0.16	410.5	15.1	16.3
UL2464	16AWG*18C	65	0.16	427.9	15.1	16.3
UL2464	16AWG*19C	65	0.16	445.3	15.1	16.3
UL2464	16AWG*20C	65	0.16	467.8	15.5	16.7
UL2464	16AWG*21C	65	0.16	490.2	15.9	17.1
UL2464	16AWG*22C	65	0.16	521.8	17	18.2
UL2464	16AWG*23C	65	0.16	550.3	17.8	19.0
UL2464	16AWG*24C	65	0.16	567.7	17.8	19.0
UL2464	16AWG*25C	65	0.16	591	18.2	19.4
UL2464	16AWG*26C	65	0.16	608.4	18.2	19.4
UL2464	16AWG*27C	65	0.16	625.8	18.2	19.4
UL2464	16AWG*28C	65	0.16	653.3	18.9	20.1
UL2464	16AWG*29C	65	0.16	670.7	18.9	20.1
UL2464	16AWG*30C	65	0.16	688.1	18.9	20.1
UL2464	16AWG*31C	65	0.16	717	19.7	20.9
UL2464	16AWG*32C	65	0.16	734.4	19.7	20.9
UL2464	16AWG*33C	65	0.16	751.8	19.7	20.9
UL2464	16AWG*34C	65	0.16	781.6	20.5	22.2
UL2464	16AWG*35C	65	0.16	799	20.5	21.7
UL2464	16AWG*36C	65	0.16	816.4	20.5	21.7
UL2464	16AWG*37C	65	0.16	833.8	20.5	21.7

UL2464	14AWG*2C	43	0.25	116.6	8.2	8.6
UL2464	14AWG*3C	43	0.25	143.8	8.7	9.1
UL2464	14AWG*4C	43	0.25	178.1	9.6	10
UL2464	14AWG*5C	43	0.25	214.6	10.6	11.2
UL2464	14AWG*6C	43	0.25	252.6	11.7	12.3
UL2464	14AWG*7C	43	0.25	279.9	11.7	12.3
UL2464	14AWG*8C	43	0.25	318.4	12.7	13.3
UL2464	14AWG*9C	43	0.25	364.4	14.1	14.7
UL2464	14AWG*10C	43	0.25	411.5	15.2	16.4
UL2464	14AWG*11C	43	0.25	449.4	15.7	16.9
UL2464	14AWG*12C	43	0.25	470.1	15.7	16.9
UL2464	14AWG*13C	43	0.25	484	16.6	17.8
UL2464	14AWG*14C	43	0.25	511.3	16.6	17.8
UL2464	14AWG*15C	43	0.25	551.6	17.6	18.8
UL2464	14AWG*16C	43	0.25	578.9	17.6	18.8
UL2464	14AWG*17C	43	0.25	620.5	18.6	19.8
UL2464	14AWG*18C	43	0.25	647.8	18.6	19.8
UL2464	14AWG*19C	43	0.25	675.2	18.6	19.8
UL2464	14AWG*20C	43	0.25	710.1	19.2	20.4
UL2464	14AWG*21C	43	0.25	744.7	19.7	20.9
UL2464	14AWG*22C	43	0.25	793	21.1	22.3
UL2464	14AWG*23C	43	0.25	836.7	22.1	23.3
UL2464	14AWG*24C	43	0.25	864	22.1	23.3
UL2464	14AWG*25C	43	0.25	900.1	22.6	23.8
UL2464	14AWG*26C	43	0.25	927.4	22.6	23.8
UL2464	14AWG*27C	43	0.25	954.7	22.6	23.8
UL2464	14AWG*28C	43	0.25	997.1	23.6	24.8
UL2464	14AWG*29C	43	0.25	1024.4	23.6	24.8
UL2464	14AWG*30C	43	0.25	1051.7	23.6	24.8
UL2464	14AWG*31C	43	0.25	1096.2	24.5	25.7
UL2464	14AWG*32C	43	0.25	1123.5	24.5	25.7
UL2464	14AWG*33C	43	0.25	1150.8	24.5	25.7
UL2464	14AWG*34C	43	0.25	1196.7	25.6	26.8
UL2464	14AWG*35C	43	0.25	1224.1	25.6	26.8
UL2464	14AWG*36C	43	0.25	1251.4	25.6	26.8
UL2464	14AWG*37C	43	0.25	1278.7	25.6	26.8
